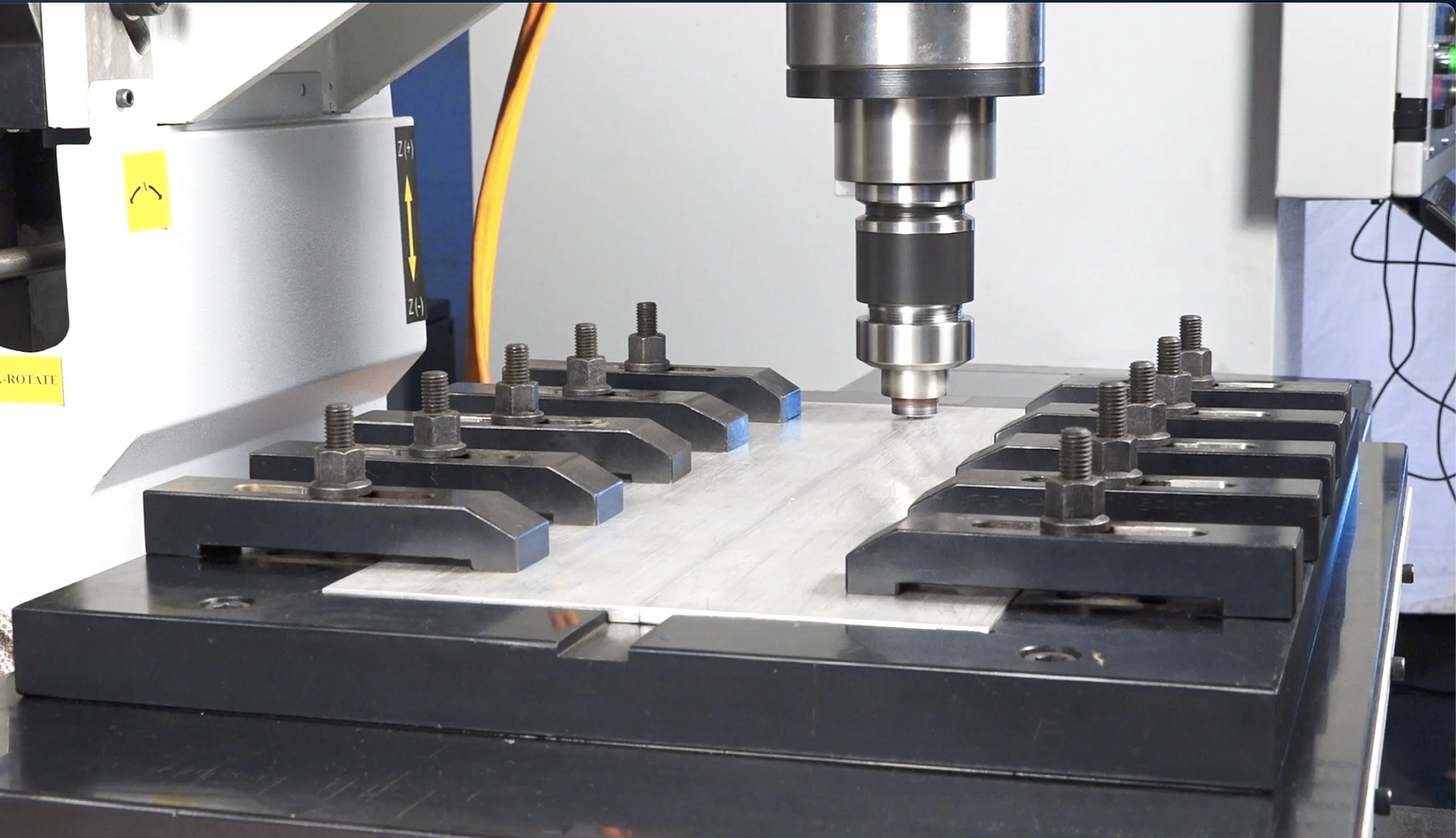

CNC FRICTION STIR WELDING MACHINE Model FSWM30i
Robust 3 AXIS CNC FRICTION STIR WELDING
Precision hi- speed ISO 40 spindle,
XYZ 400 ,300,300 Axis servo drive
Advanced Position and Force mode control
With real time hi speed data acquisition software like spindle rpm, torque axis force and velocity
SPECIFICATIONS
| MODEL | FSWM30i |
| MACHINE CAPACITY | |
|---|---|

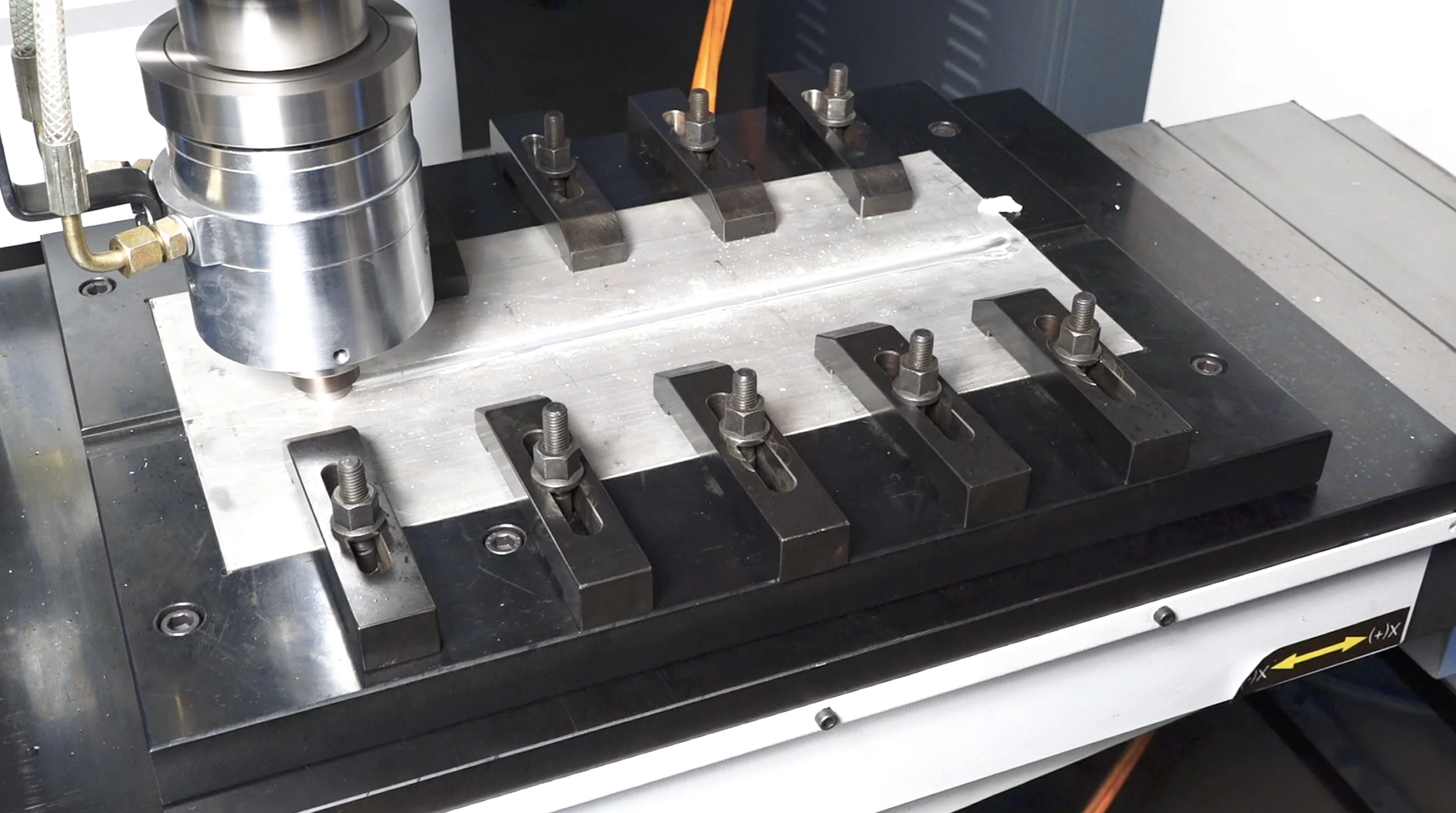

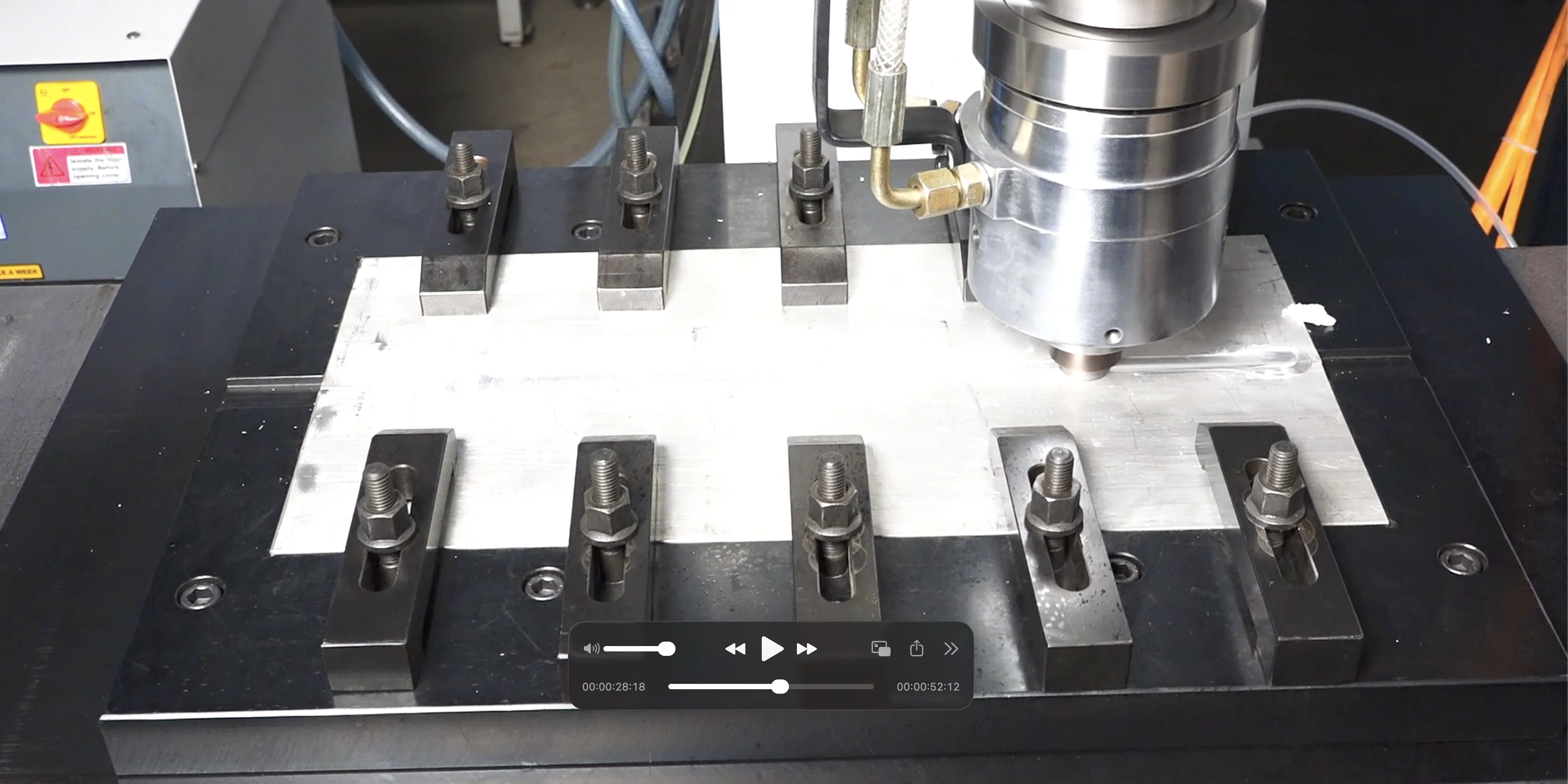

| Work Table X and Y (Length x Width) T lot Table | 500mm x400mm |
| Spindle to Table min -max | 50mm to 400mm |
| SPINDLE | |
| Spindle Taper | ISO40 |
| Spindle Power | 7.5kw/ 440v,94nm@750rpm |
| Spindle RPM-max | 3000 RPM |
| AXIS TRAVEL | |
| X-Axis | 400 mm |
| Y -Axis | 300 mm |
| Z-Axis | 300 mm |
| AXIS FORCE | |
| Z-Axis Force Max | 30 kN |
| AXIS VELOCITY | |
| X &Y Axis speed Max | 3000 mm / min |
| Z-Axis Speed Max | 1000 mm / min |
| LUBRICATION | Centralised lubrication |

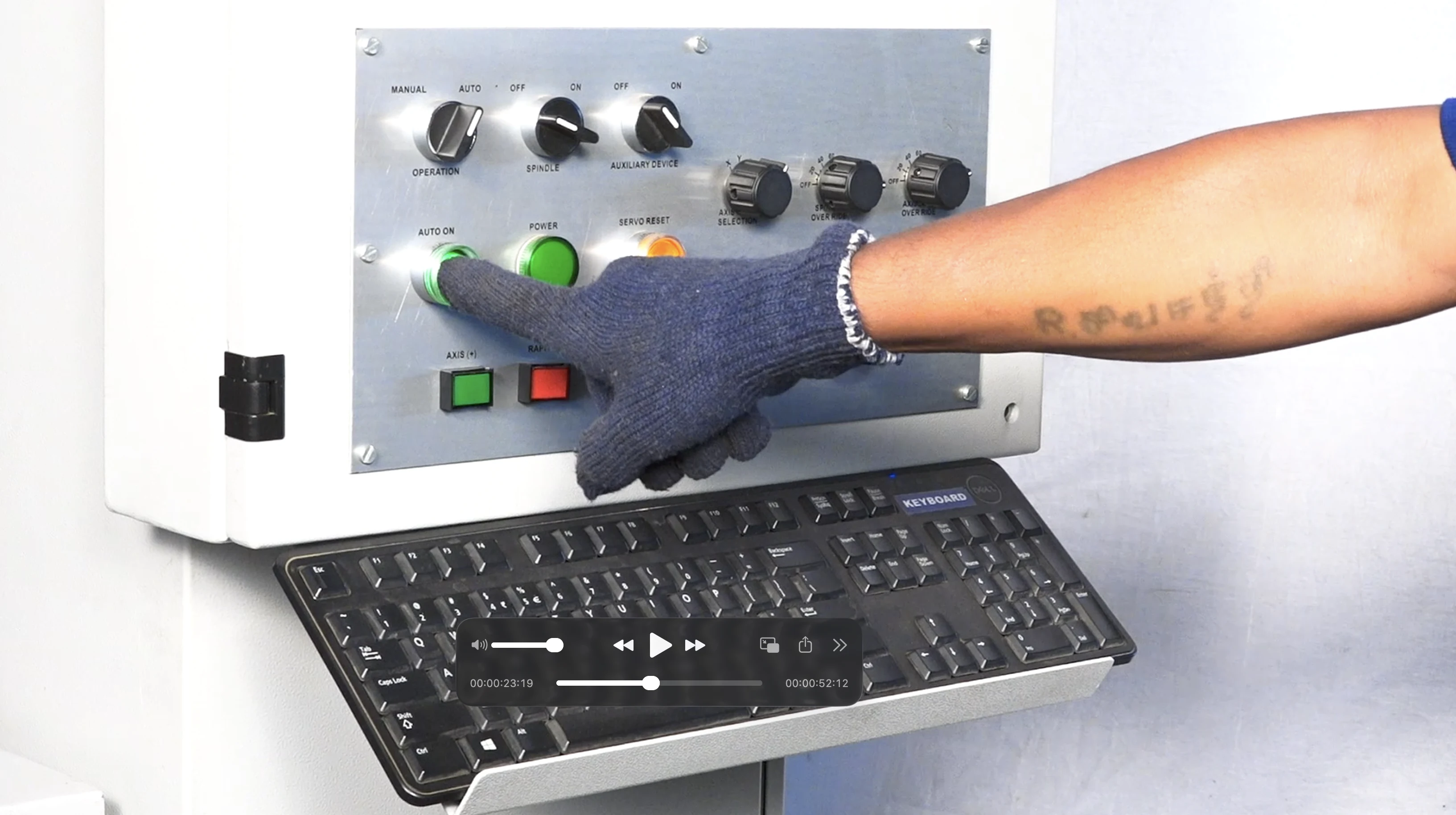

| CONTROLLER - PC Based CNC Control | |
| 15” Touch Screen Windows PC | |
| DATA ACQUISITION SOFTWARE - Lab view | |
| Real time measurement of spindle speed axis force and axis velocity against time in Excel and graph | |
| SERVICE REQUIRMENT | |
| Machine Floor dimension LBH | 3000 mm x 2000 mm x 2500mm |
| Machine power | 25 KVA/440V +- 10v |
