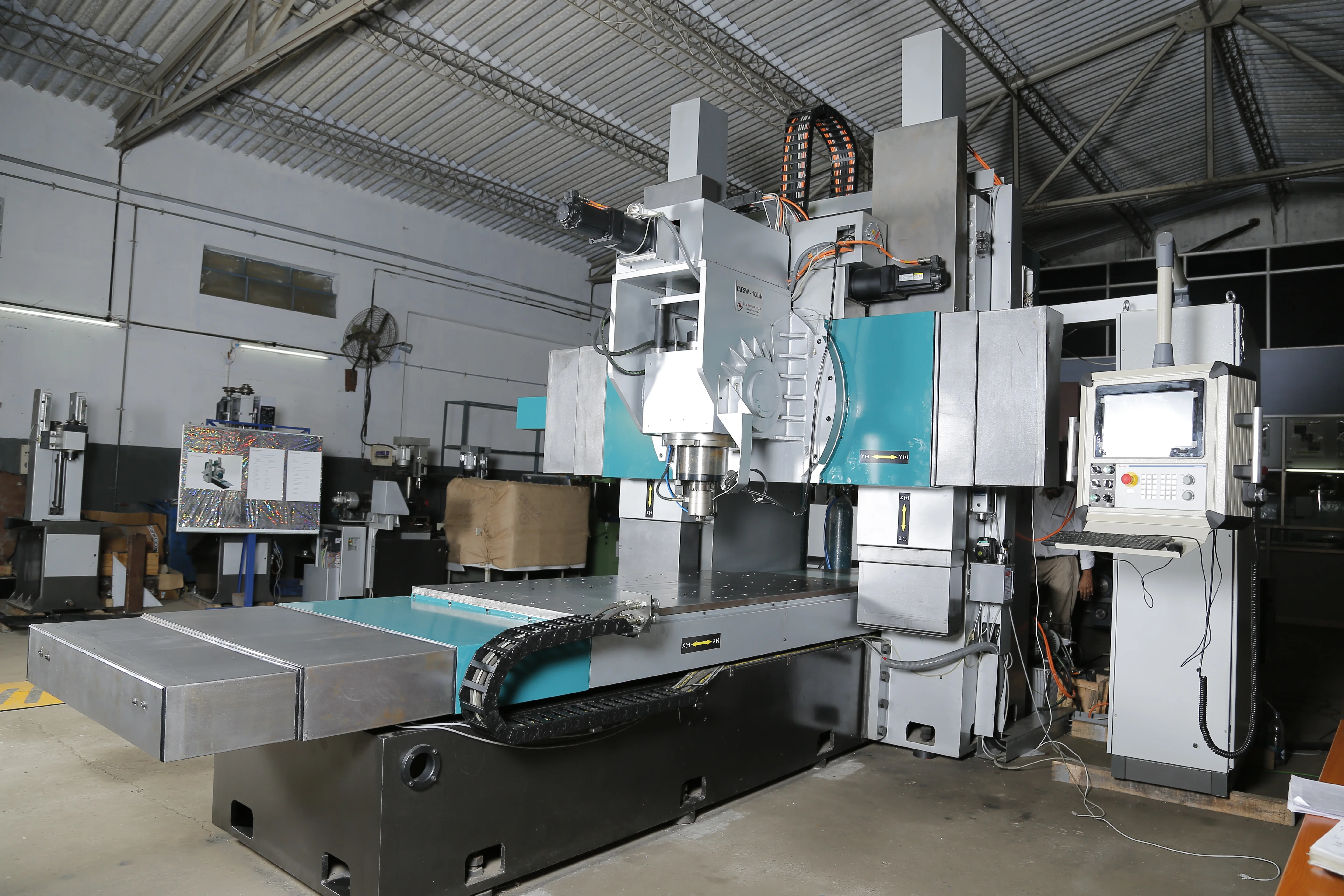

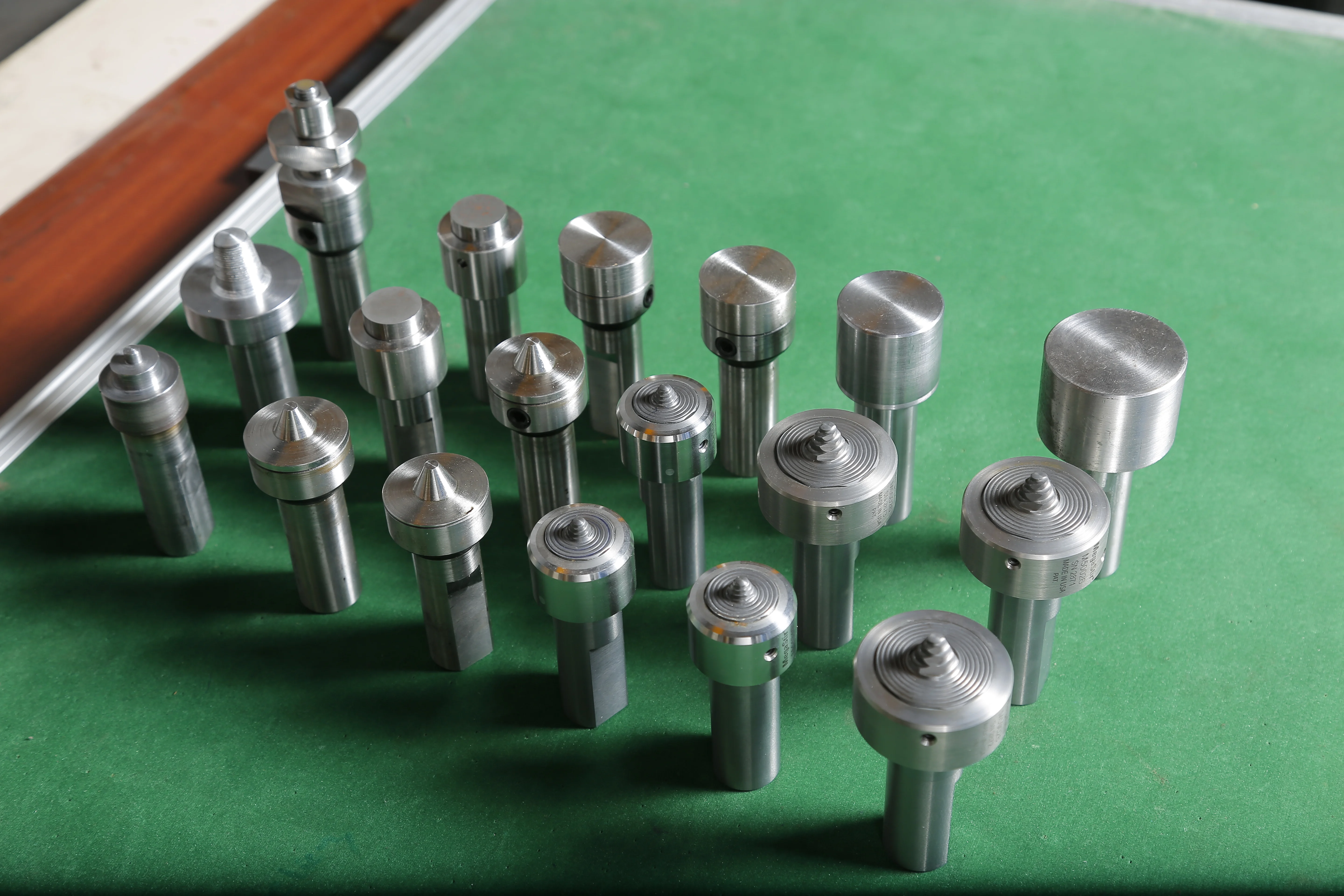

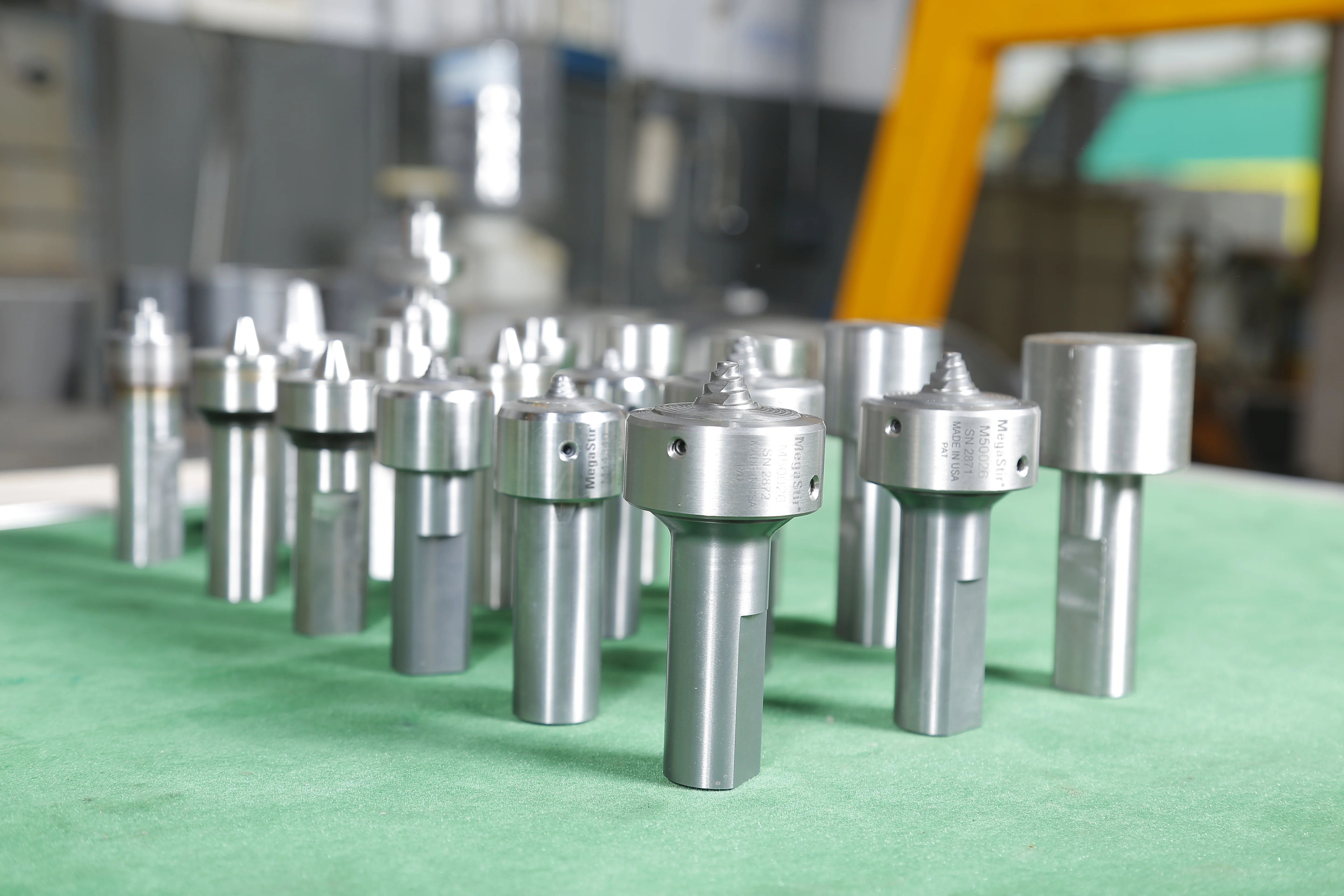

CNC FRICTION STIR WELDING MACHINE Model FSWE100i ( Extreme Model )
Robust 3 AXIS CNC FRICTION STIR WELDING

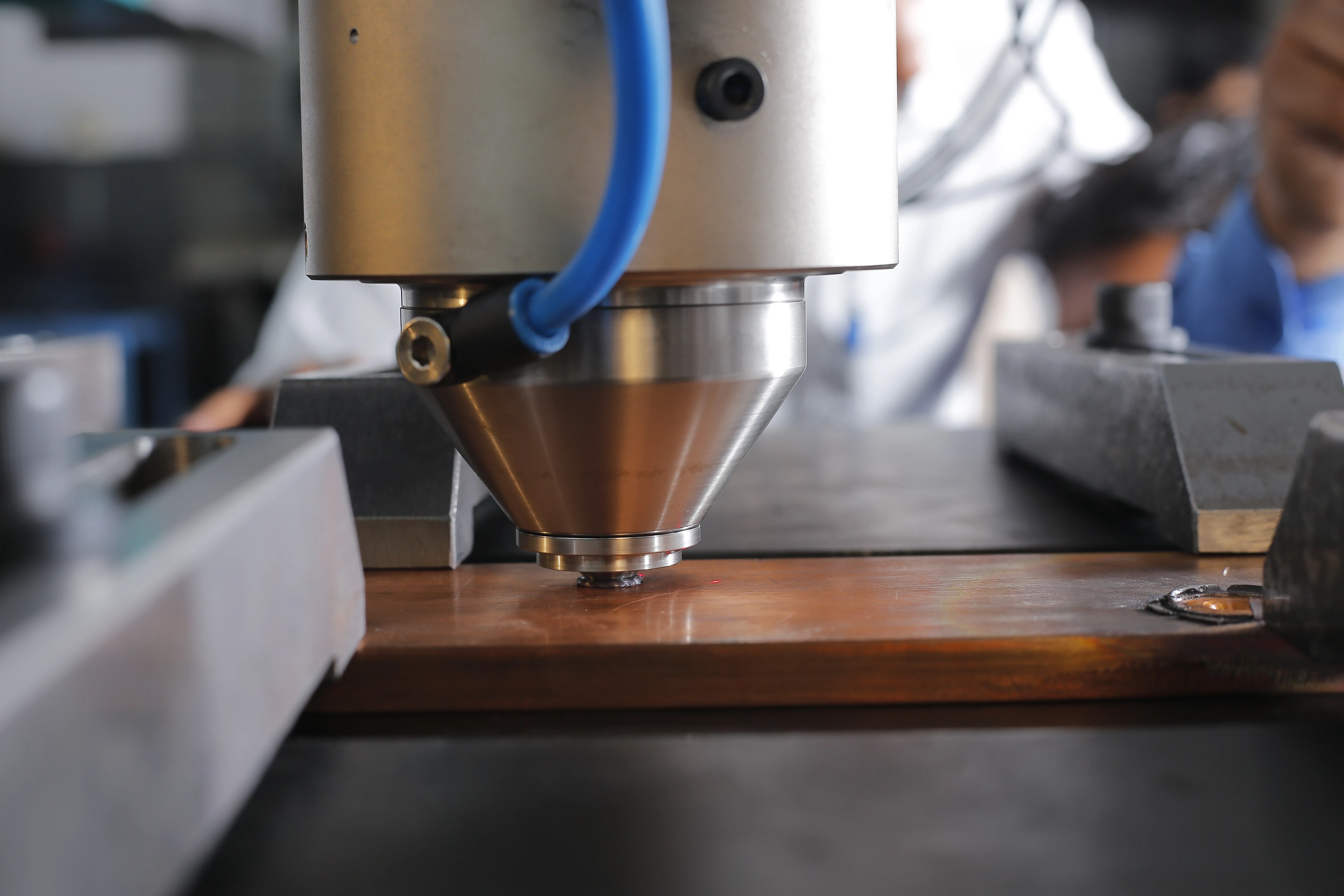

Precision hi- speed BT 50 spindle,
XYZ Axis 1000 mmX 500mm X 400mm

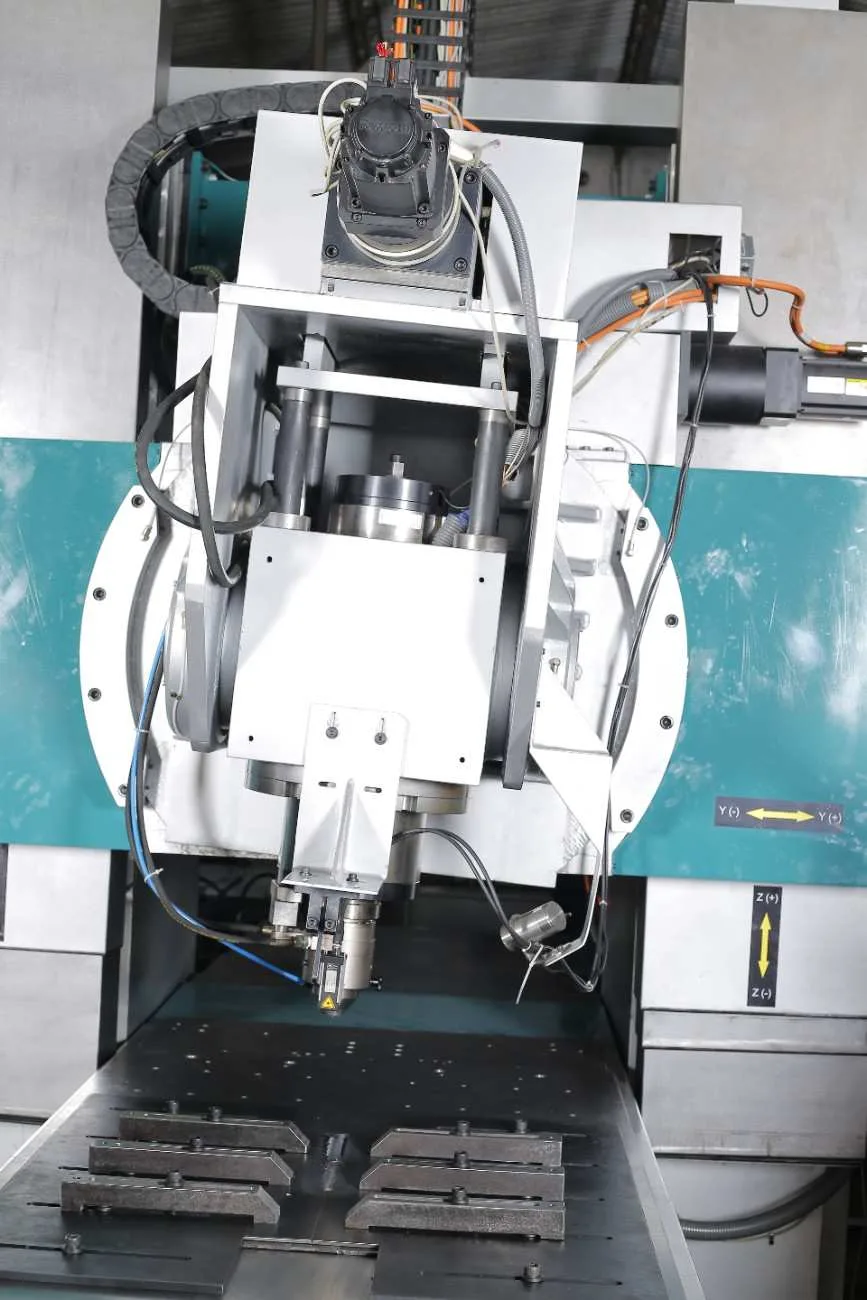

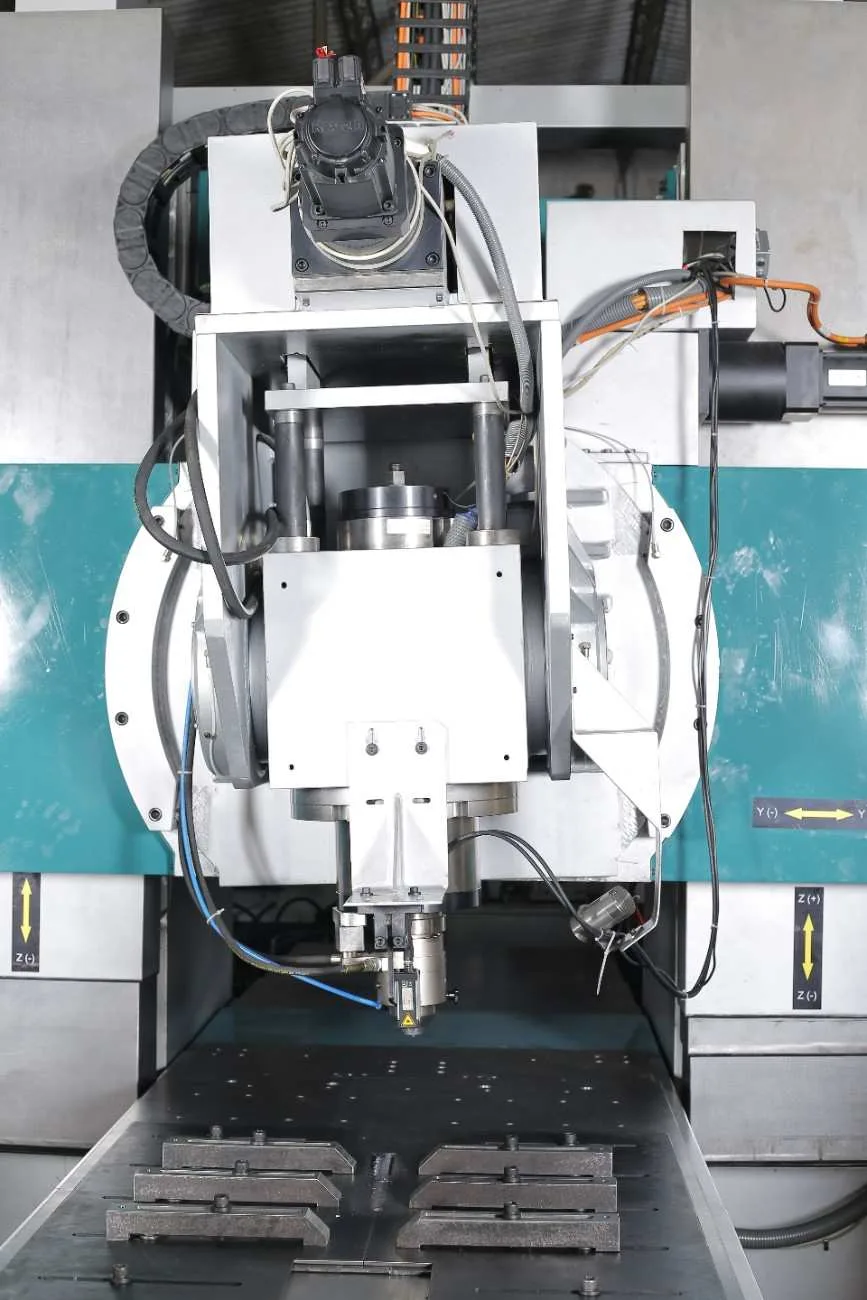

Spindle head B axis Tilt +- 5º
Advanced Position and Force mode control
With real time hi speed data acquisition software like spindle rpm, torque axis force and velocity
SPECIFICATIONS
| MODEL | FSWB10 |
| MACHINE CAPACITY | |
|---|---|
| Work Table with Tapped holes X and Y (Length x Width) | 1200mm x500 mm |
| Spindle to Table min -max | 100mm to 500mm |
| SPINDLE | |
| Spindle Tapper | ISO 50 |
| Spindle Power | 31kw /650nm@500pm |
| Spindle RPM-max | 2000 RPM |
| AXIS TRAVEL | |
| X-Axis | 1000 mm |
| Y -Axis | 500 mm |
| Z-Axis | 400 mm |
| AXIS FORCE | |
| Z-Axis Force Max | 100 kN |
| X Axis Force Max | 50kN |
| AXIS VELOCITY | |
| X&Y Axis speed Max | 3000 mm / min |
| Z-Axis Speed Max | 1000 mm / min |
| HEAD TILT | |
| B axis Head tilt | ± 5 degree (manual) |
| LUBRICATION | |
| Centralized auto Lubrication | 3 Lit tank cap centralized lubrication |
| CNC CONTROLLER | |

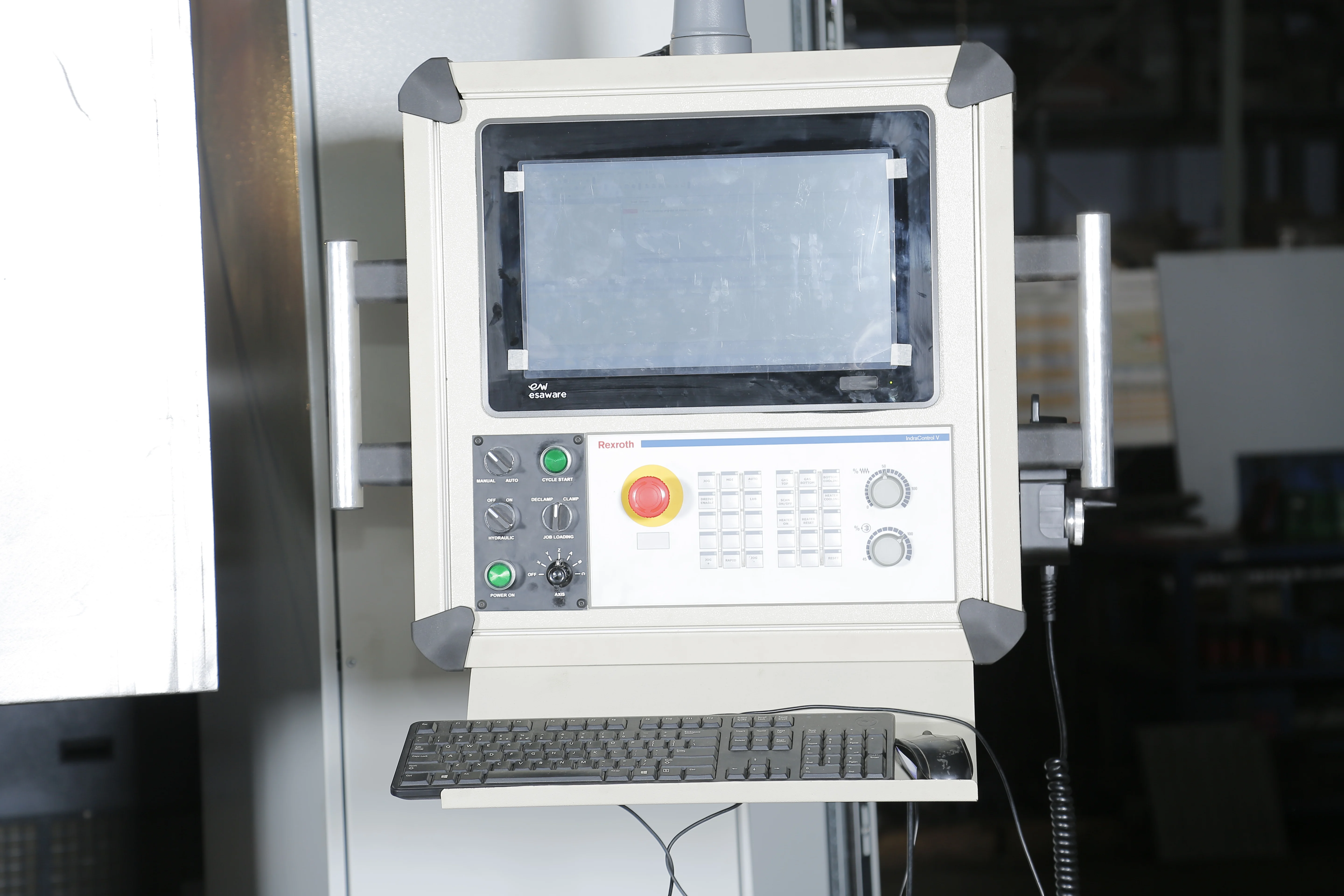

| 2D NC program software with force mode control , 10” Touch screen monitor | |
| DATA ACQUISITION SOFTWARE | |
| Real time measurement of spindle speed axis force and axis velocity against time in Excel and graph | |
| SERVICE REQUIRMENT | |
| Machine dimension LBH | 4000 mm x 3500 mm x 2700mm |
| Machine power | 60 KVA/440V +-5 v/50Hz +- 1Hz |
