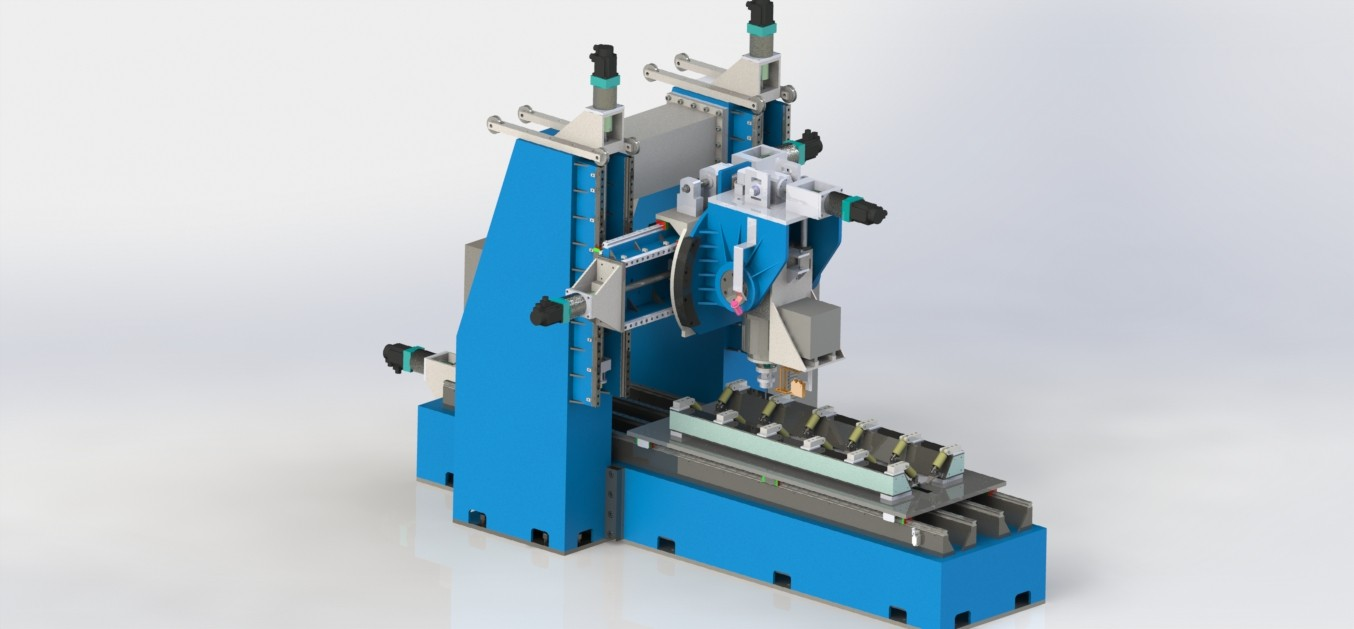

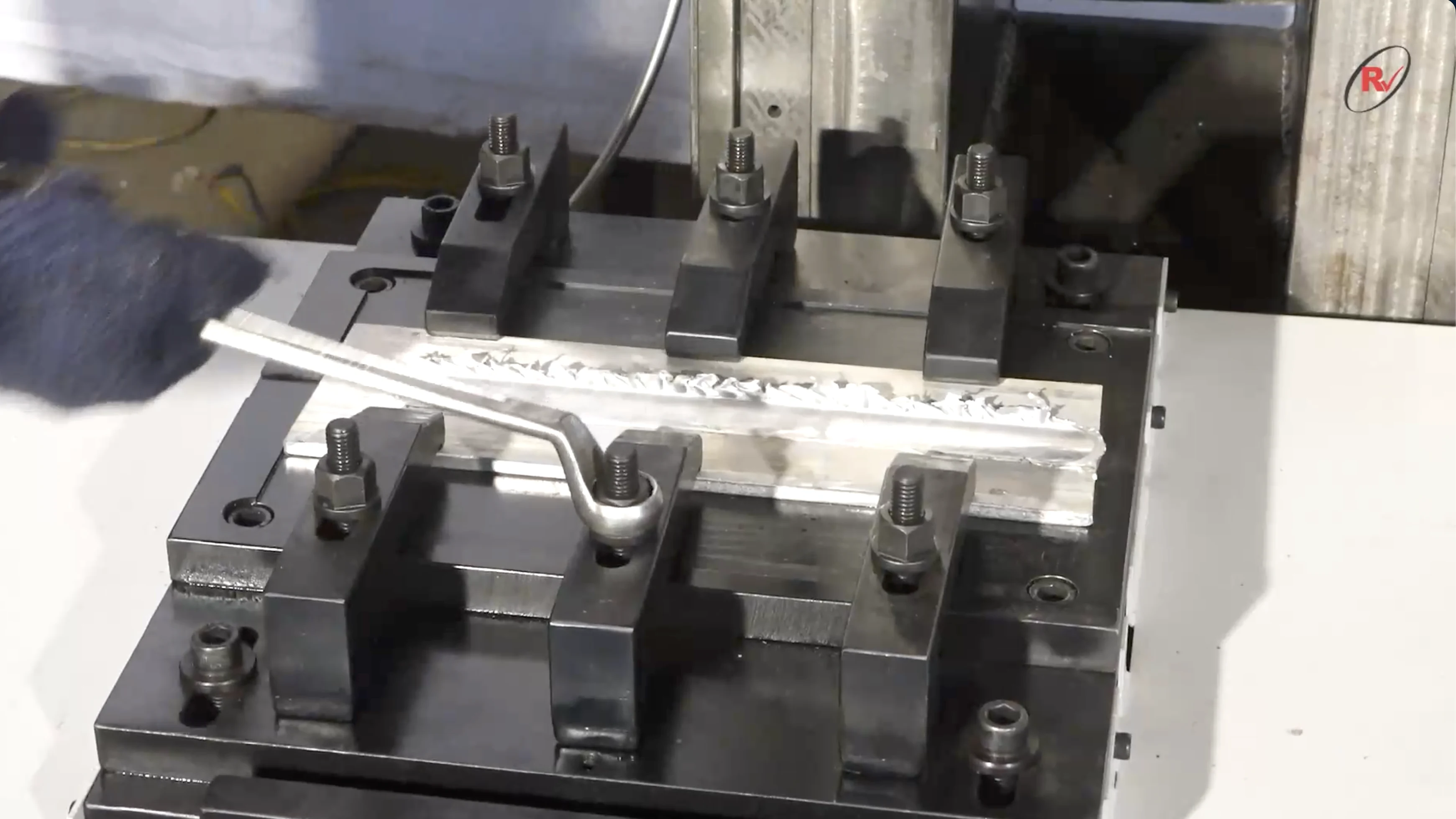

NC FRICTION STIR WELDING MACHINE Model- FSWB20
Robust 2 AXIS NC FRICTION STIR WELDING MACHINE
Precision ISO 40 Tapper Spindle,
300 x 50 x 250 ZXY Axis travel ( Y- manual)
Position and Force mode control
With real time hi speed data acquisition for spindle rpm, torque axis force and velocity
MACHINE SPECIFICATIONS
| MODEL | FSWB20 |
| MACHINE CAPACITY | |
|---|---|
| Work Table with Tapped holes X and Y (Length x Width) | 350 mm x 400 mm |
| Spindle Nose to Table (max – min) | 50mm to 300 mm |
| SPINDLE | |
| Spindle Tapper | ISO 40 |
| Spindle Power | 5.5kw /7.5 hp 440v 35Nm@1500rpm |
| Spindle RPM max | 3000 rpm |
| AXIS TRAVEL | |
| X-Axis | 300 mm |
| Z-Axis | 250 mm |
| Y-Axis -manual | 50 mm |
| Head Tilt Angle | +- 5 Deg |
| AXIS FORCE | |
| Z-Axis Force Max | 20 kN |
| AXIS VELOCITY | |
| X Axis Speed Max | 3000mm / min |
| Z-Axis Speed Max | 1000 mm / min |
| LUBRICATION | |
| Centralized Lubrication | |

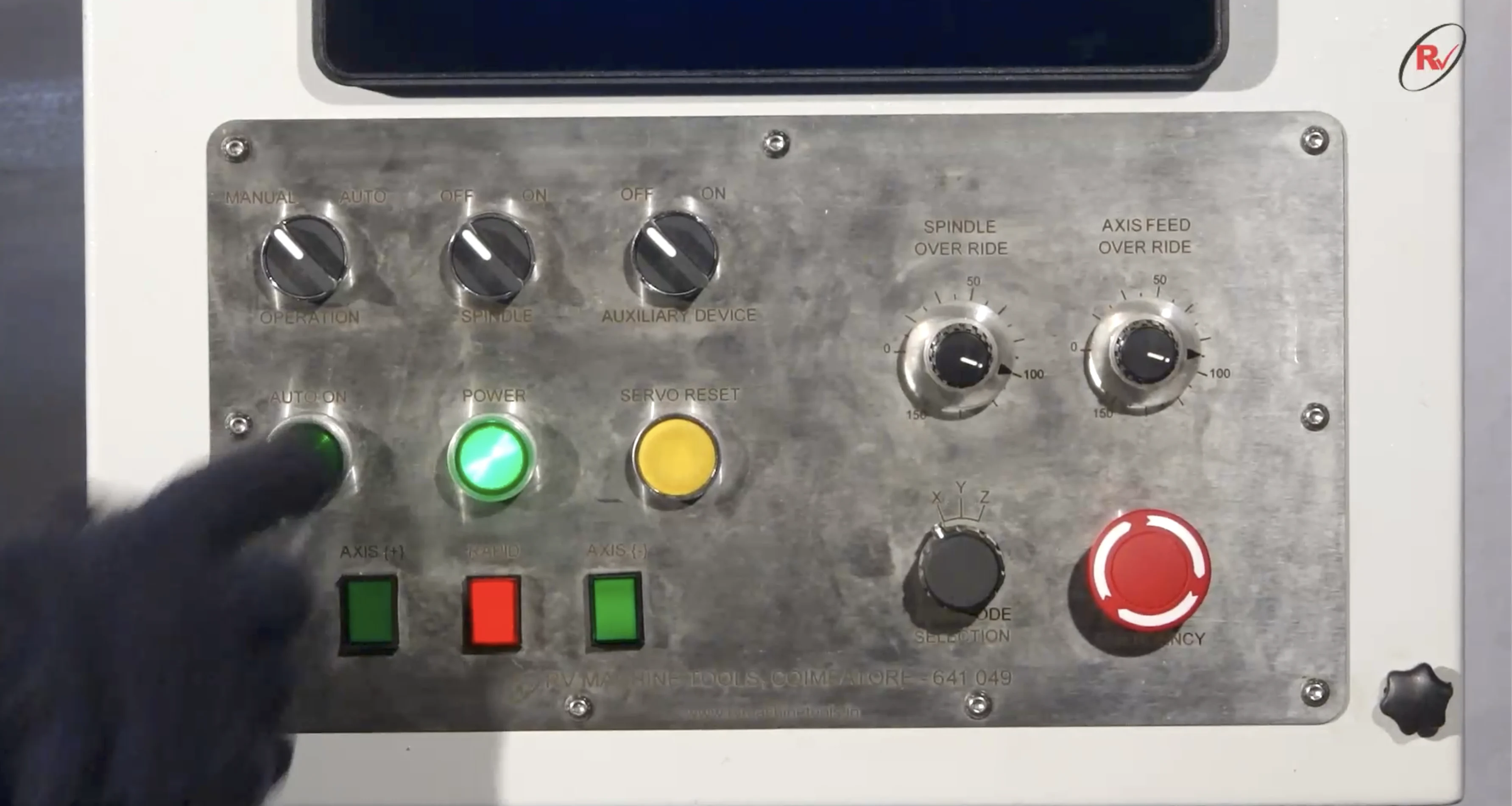

| CONTROLLER | |
| 10” Screen with position and force control | |
| DATA ACQUISITION-LAB VIEW | |
| Real time measurement of spindle speed axis force and axis velocity against time in Excel and graph | |
| SERVICE REQUIRMENT | |
| Machine dimension LBH in mm | 1250 x 900 x 2000 |
| Machine power | 20 KVA/440V +-5 v/50Hz +- 1Hz |
Optional Accessories
- Liquid Cooled toolholder – BT40 – 20
- Under water welding fixture
Tools
- HSS,H13,TUNGSTUN CARBIDE and Lanthanum Oxide Pin dia ,3,6,9,12,mm
Operating Screen
Linear welding Screen
