FSW Accessories
Keywords: FSW fixtures, FSW backing plate, FSW clamps, FSW monitoring system
FSW accessories support the overall welding setup and ensure precision, stability, and process reliability. These accessories help maintain optimal conditions during welding and improve overall production efficiency.
Common FSW Accessories:
- Backing Plates – Maintain support and reduce underside defects
- Clamping Fixtures – Prevent movement and vibrations during welding
- Cooling Units – Control weld temperature and avoid thermal distortion
- Force & Torque Sensors – Enable real-time process monitoring
- Custom Jigs & Modular Fixtures – Designed for specific components
Using the right accessories enhances weld consistency, reduces rework, and maximizes throughput.
Liquid Cooled Tool Holder
ISO 40/50 Taper Model Liquid Cooled Tool holder Restrict the tool temperature transfer to the spindle bearings during steel and thick al welding, which protect the machine main precision spindle bearings. >
Water mixed coolant enter the inlet and cools the chamber around the FSW tool shank. Tapped hole is provided to secure mounting the stationary housing of the liquid – cooled Tool holder to bracket of the machine.

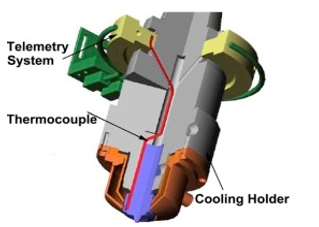

Temperature Tool Telemetry
A telemetry system is used to measure the temperature of the tool shoulder during welding.
A thermocouple senses the temperature and transmits the value wirelessly to the machine controller according to preset limits.
The machine controller adjusts axis force and welding velocity dynamically.
Tool Temperature Tool Telemetry increases weld quality, extends the life of costly steel weld tools, and prevents unexpected tool breakage.
Seam Tracker
The seam tracking scanner guides the welding tool along a pre-programmed path on the workpiece.
When the tool deviates, the system detects the shift and generates a correction signal instantly.
This signal is sent to the welding machine’s PLC, which dynamically adjusts tool position.
The weld stays centered on the joint, resulting in consistent accuracy and higher weld quality.
FSW FIXTURES
T-JOINT FIXTURE
We design and manufacture welding fixtures for T-joint, L-plate, butt, and lap joints, available in both manual and hydraulic versions.
Each fixture is custom-built to match specific material sizes and production requirements, ensuring optimal performance and precision for your welding applications.
SEAM WELDING FIXTURE
Designed for Friction Stir Welding of aluminium pipes with diameters200–500 mm, length up to1000 mm, and thickness up to 12 mm.
Features include tool entry and exit arrangements, manual or hydraulic clamping, and rigid precision alignmentfor accurate seam welding.
Suitable for production and prototype applications with smooth weld quality and repeatable accuracy.

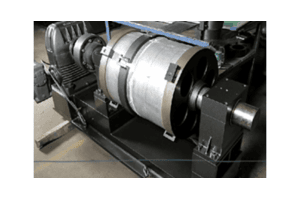

PIPE WELDING FIXTURE
Designed for Friction Stir Weldingof aluminium pipes with200–500 mm diameter, 1000 mm length, and up to 12 mm thickness.
Provides rigid concentric clamping, tool entry/exit provisions, and manual or hydraulic optionsfor smooth, defect-free circumferential welds inproduction and R&D applications.
