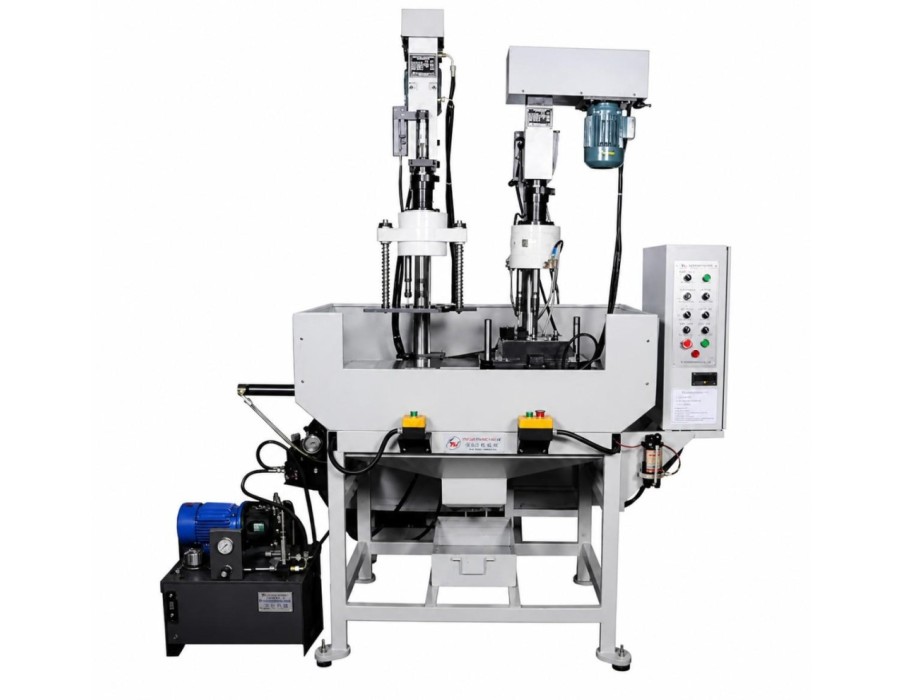

DRILLING GTAPPING SPM'S

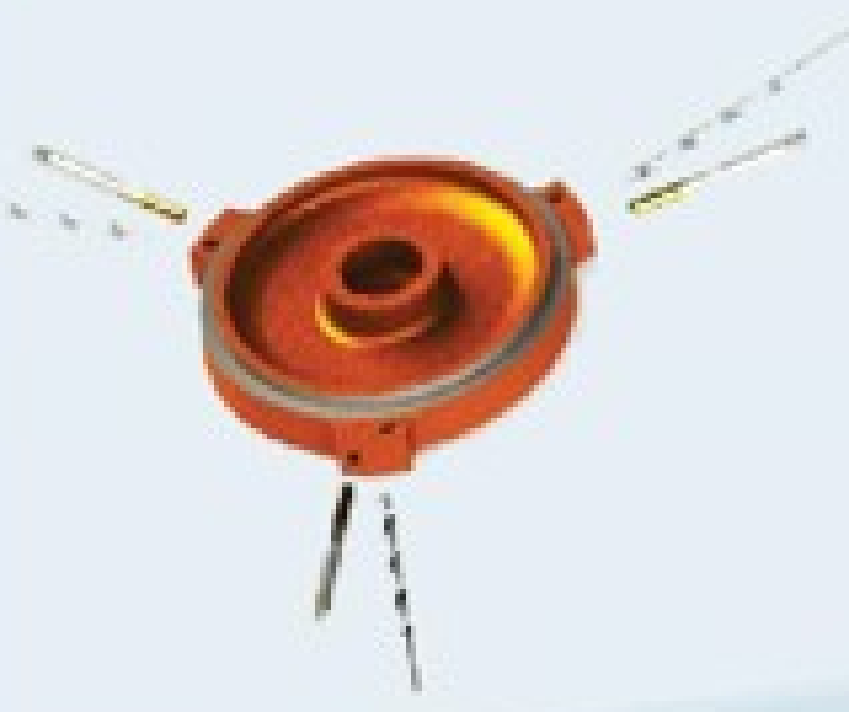

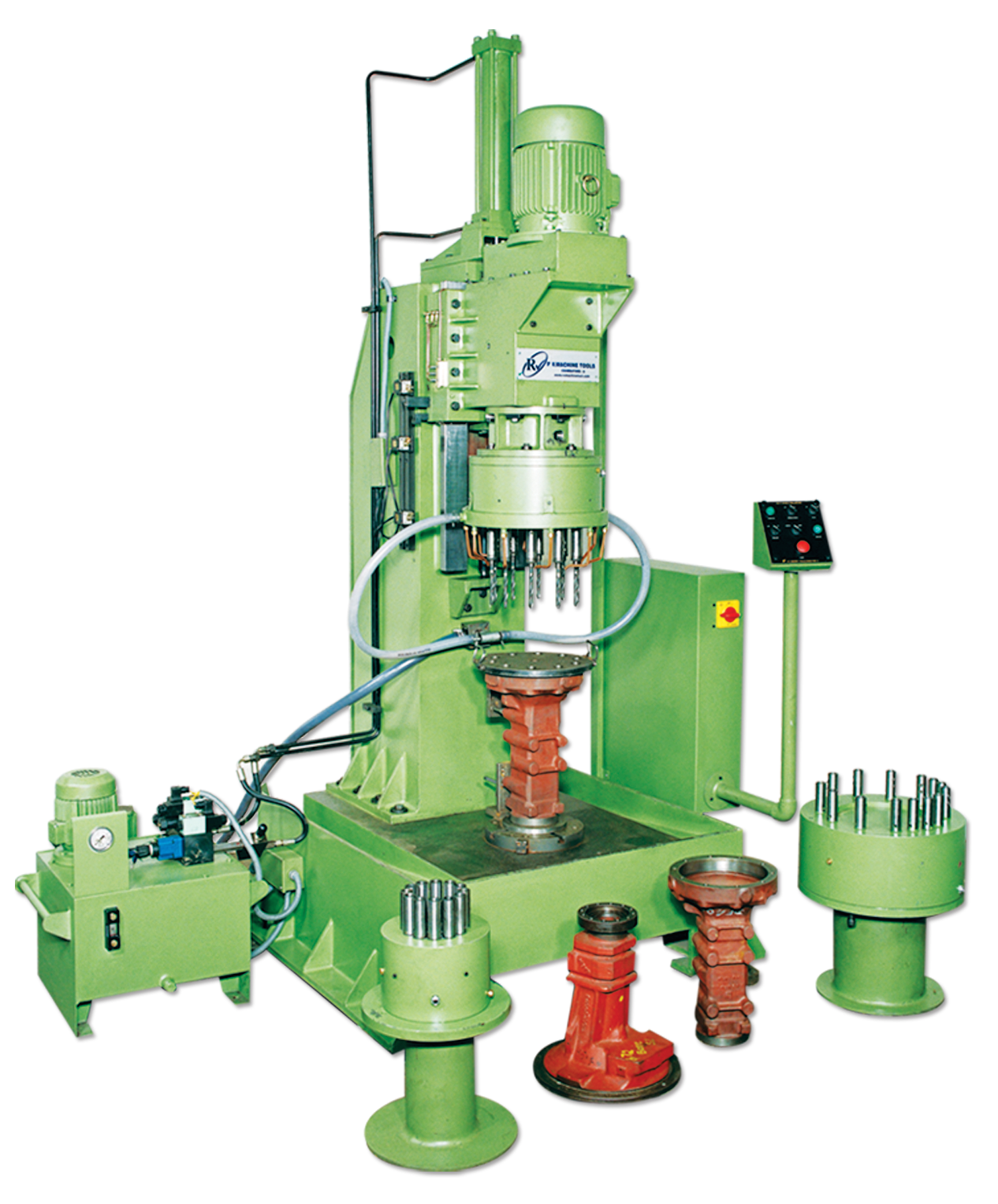

PUMP CASING DRILLING TAPPING SPM
PART : Diffuser Casing
No Of Operation : 8
Drilling : Dia 5.1 x 4 Nos
Tapping : M6 x 4 Nps
Cycle Time : 15 Sec
No Of Operation : 8
Drilling : Dia 5.1 x 4 Nos
Tapping : M6 x 4 Nps
Cycle Time : 15 Sec
MOTOR COVER DRILLING TAPPING SPM
PARTEnd cover
No Of Operation : 9
Drilling : Dia 6.7 mm x 3 Nos
Tapping : M 5 X 3 Nos
Operation Cycle Time : 20 Sec
No Of Operation : 9
Drilling : Dia 6.7 mm x 3 Nos
Tapping : M 5 X 3 Nos
Operation Cycle Time : 20 Sec

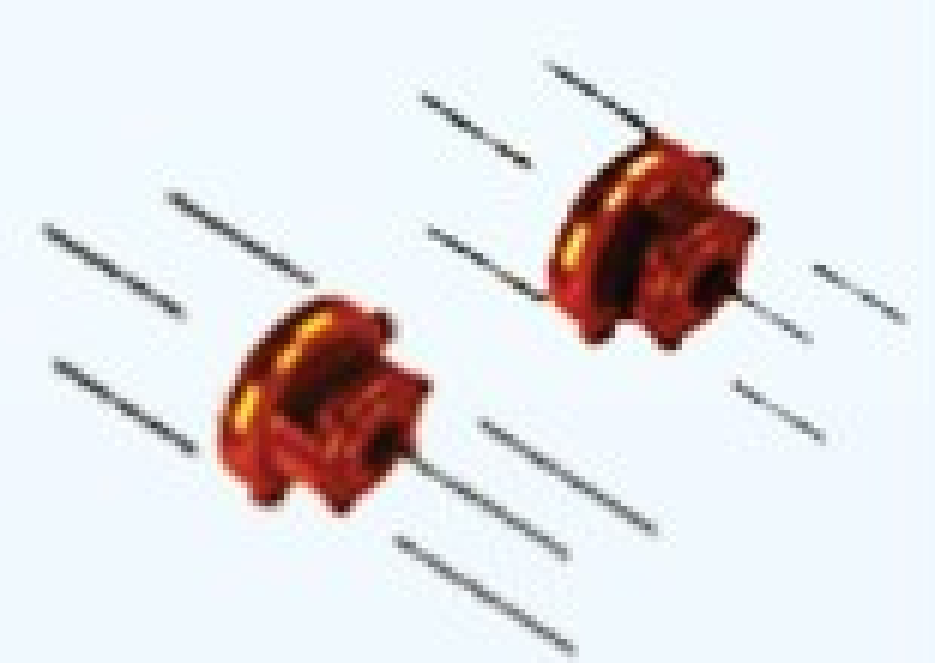

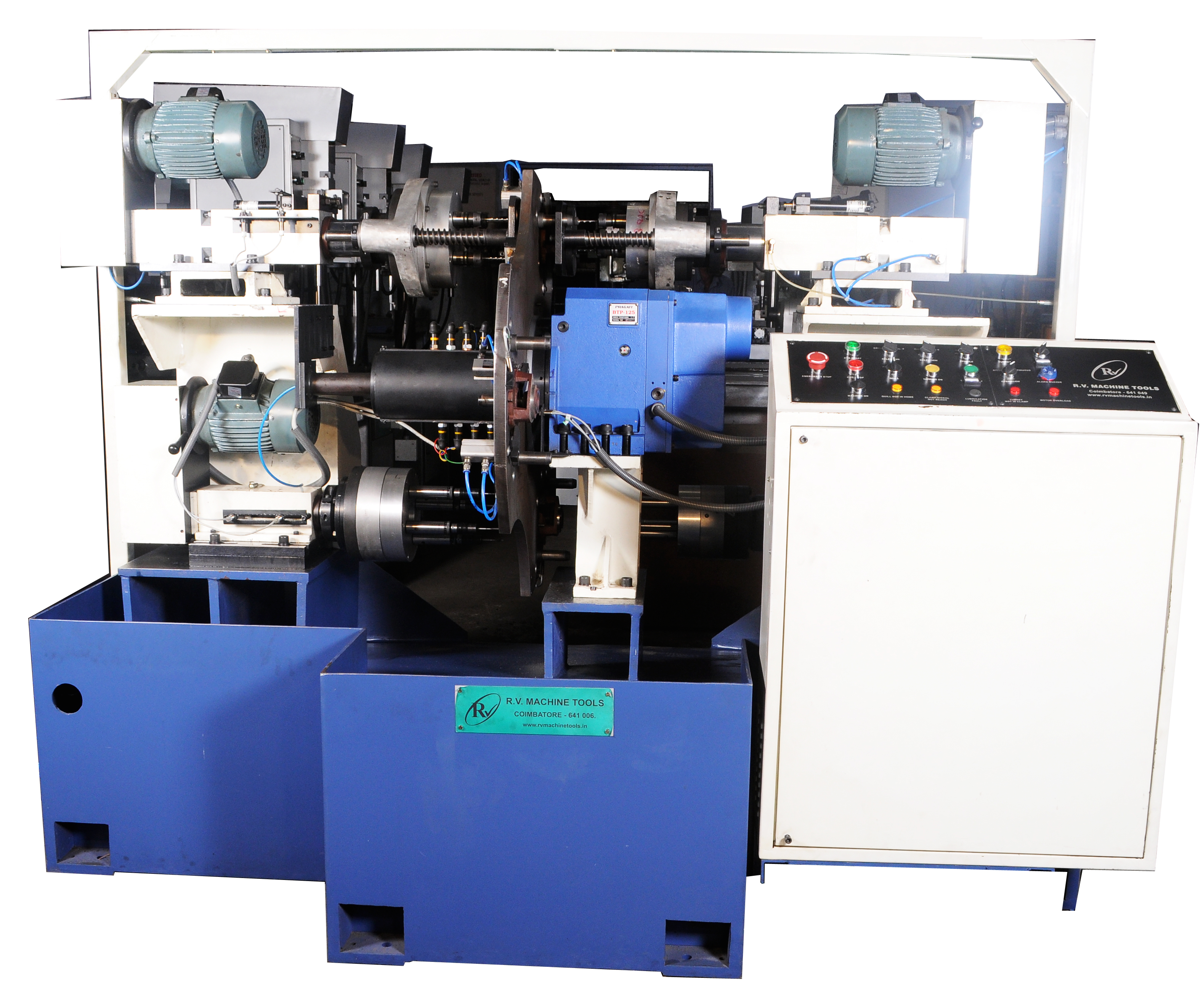

PUMP CASING DRILLING TAPPING SPM
PART Stage Casing
No Of Operation : 12
Drilling : Dia 5.1 x 6 nos
Tapping :M6 x 6 nos
Operation Cycle Time : 16 Sec
No Of Operation : 12
Drilling : Dia 5.1 x 6 nos
Tapping :M6 x 6 nos
Operation Cycle Time : 16 Sec

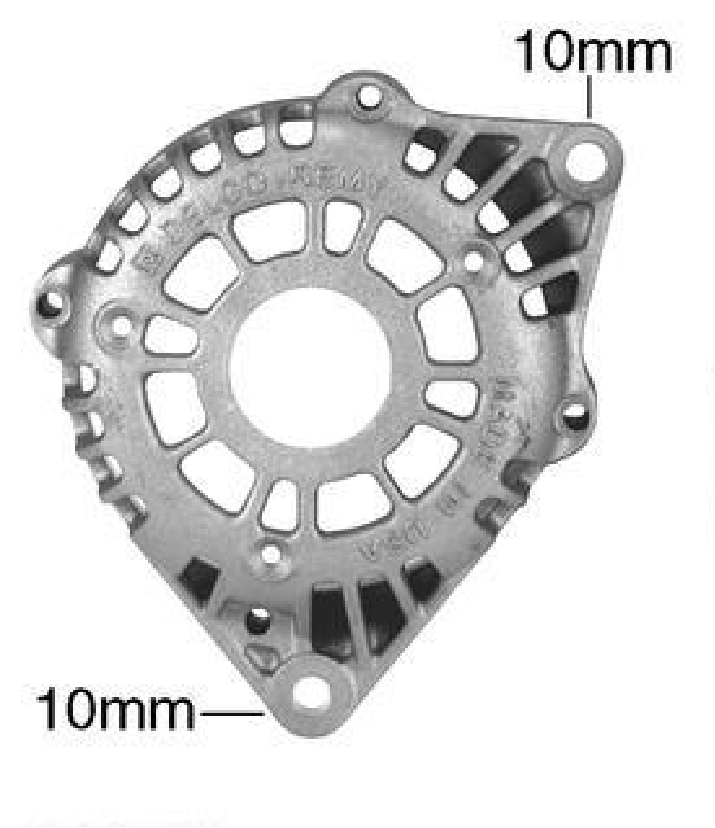

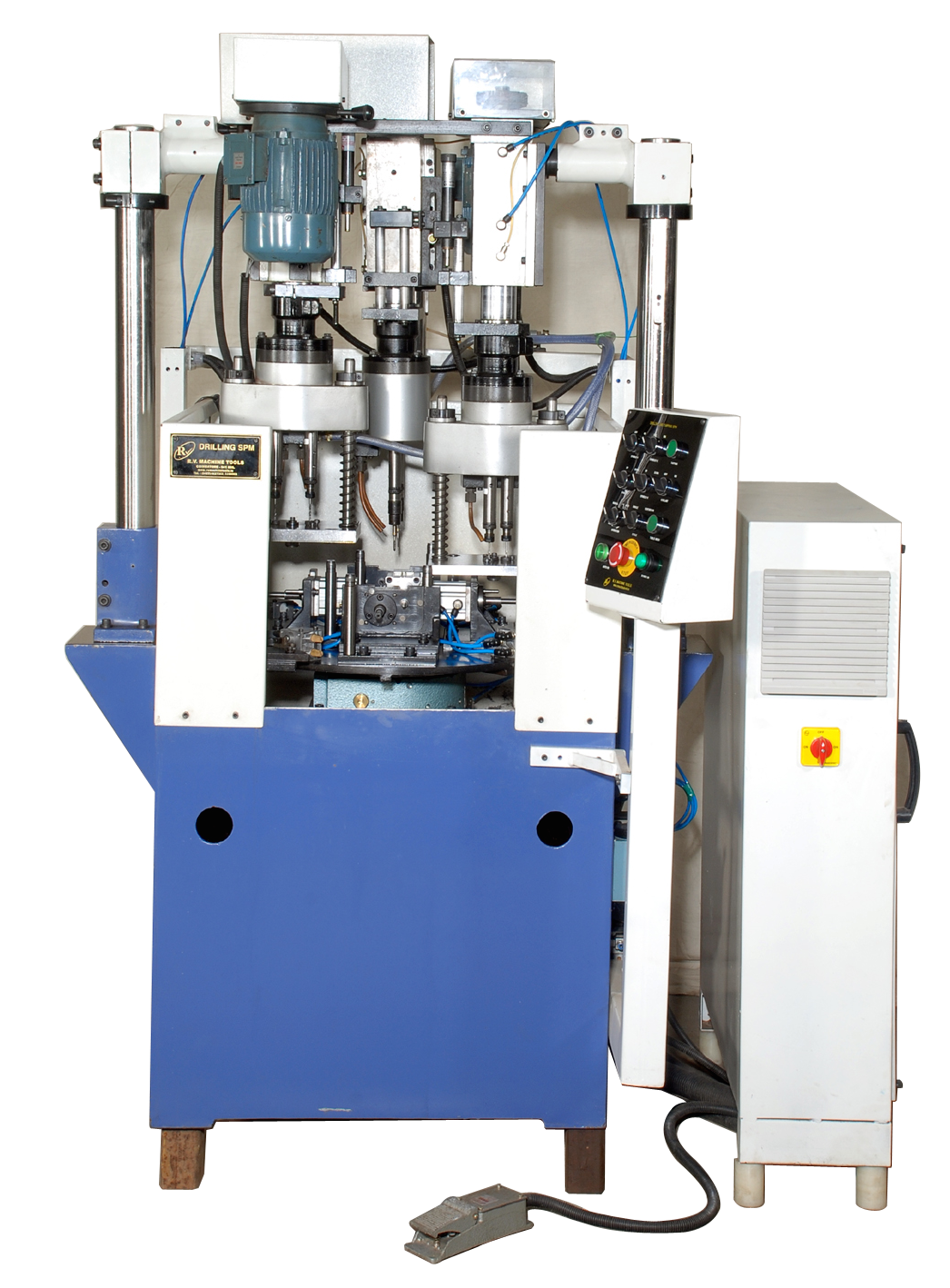

ALTERNATOR COVER DRILLING TAPPING SPM

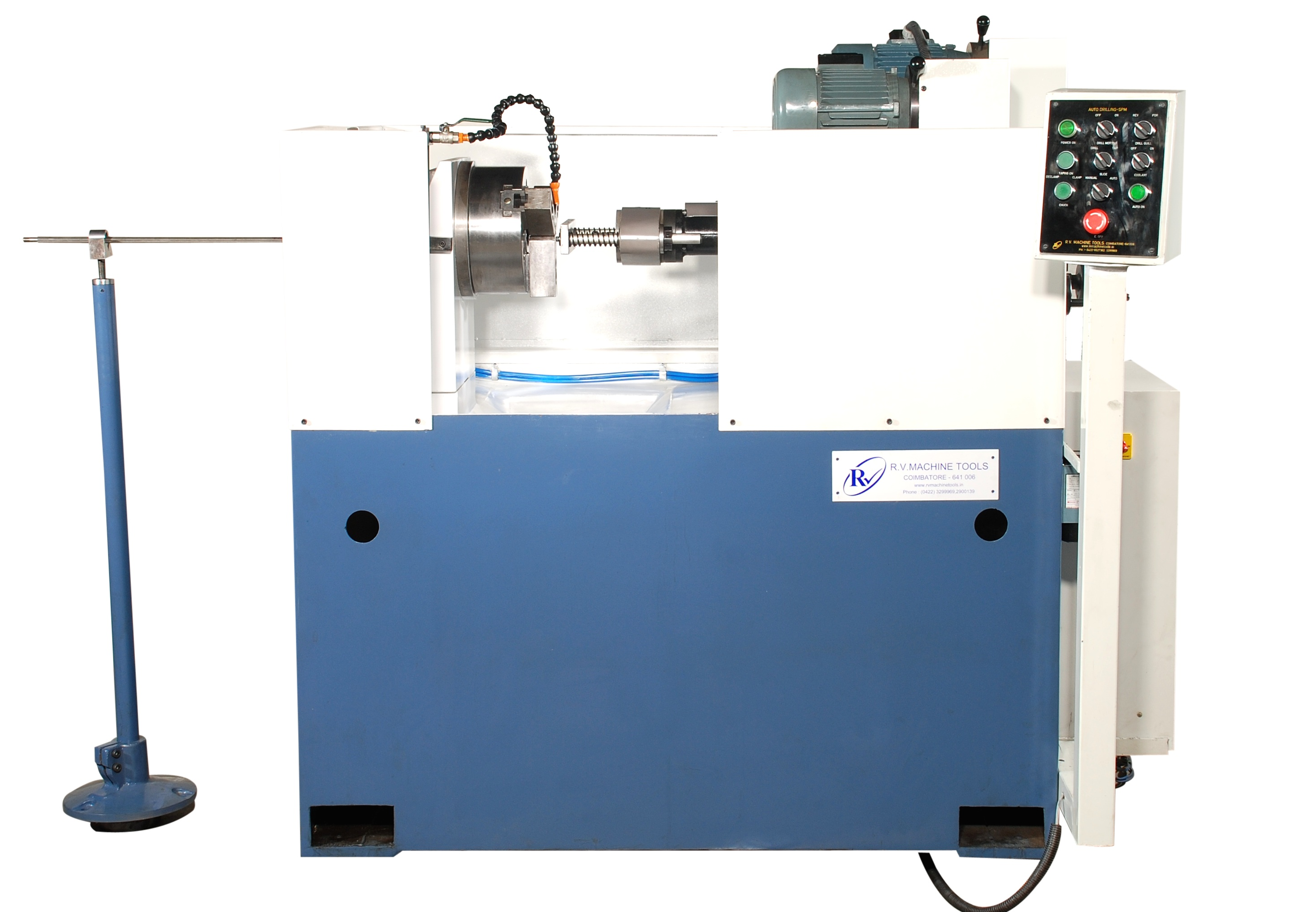

SHAFT FACE DRILLING TAPPING SPM
Drilling :DIA 4.2 x 2 nos
Tapping :M5 x 2 Nos
Operation Cycle Time : 30 Sec
DRILL UNIT RVD 12-80-P : 1 No
TAP UNIT RVT 16-6 : 1 No
2 SPINDLE DRILL HEAD : No
2 SPINDLE TAP HEAD: 1 No
PART HOLDING 3 JAW SELFCENTERING CHUCK FLOOD COOLANT SYSTEM AUTO LUBRICATION PLC ELECTRICALS
Tapping :M5 x 2 Nos
Operation Cycle Time : 30 Sec
DRILL UNIT RVD 12-80-P : 1 No
TAP UNIT RVT 16-6 : 1 No
2 SPINDLE DRILL HEAD : No
2 SPINDLE TAP HEAD: 1 No
PART HOLDING 3 JAW SELFCENTERING CHUCK FLOOD COOLANT SYSTEM AUTO LUBRICATION PLC ELECTRICALS
TEXTILE PART DRILLING TAPPING SPM
Drill Unit RVD 12-125 -P : 2 Nos
Tap Unit RVT 16-60 : 2 Nos
2 Spindle Drill Head With Mobile
Jig Bush Plate : 2 Nos
2 Spindle Tap Head : 2 Nos
NO OF OPERATION 8 OPERATION CYCLE TIME 30 SEC
Drilling Dia : 6.8 X 2 Nos
Drilling Dia : 10.5 X 2 Nos
Tapping M8 X 2 Nos
Tapping M10 X 2 Nos
Auto Lubrication
Part Clamping Fixture
Tap Unit RVT 16-60 : 2 Nos
2 Spindle Drill Head With Mobile
Jig Bush Plate : 2 Nos
2 Spindle Tap Head : 2 Nos
NO OF OPERATION 8 OPERATION CYCLE TIME 30 SEC
Drilling Dia : 6.8 X 2 Nos
Drilling Dia : 10.5 X 2 Nos
Tapping M8 X 2 Nos
Tapping M10 X 2 Nos
Auto Lubrication
Part Clamping Fixture

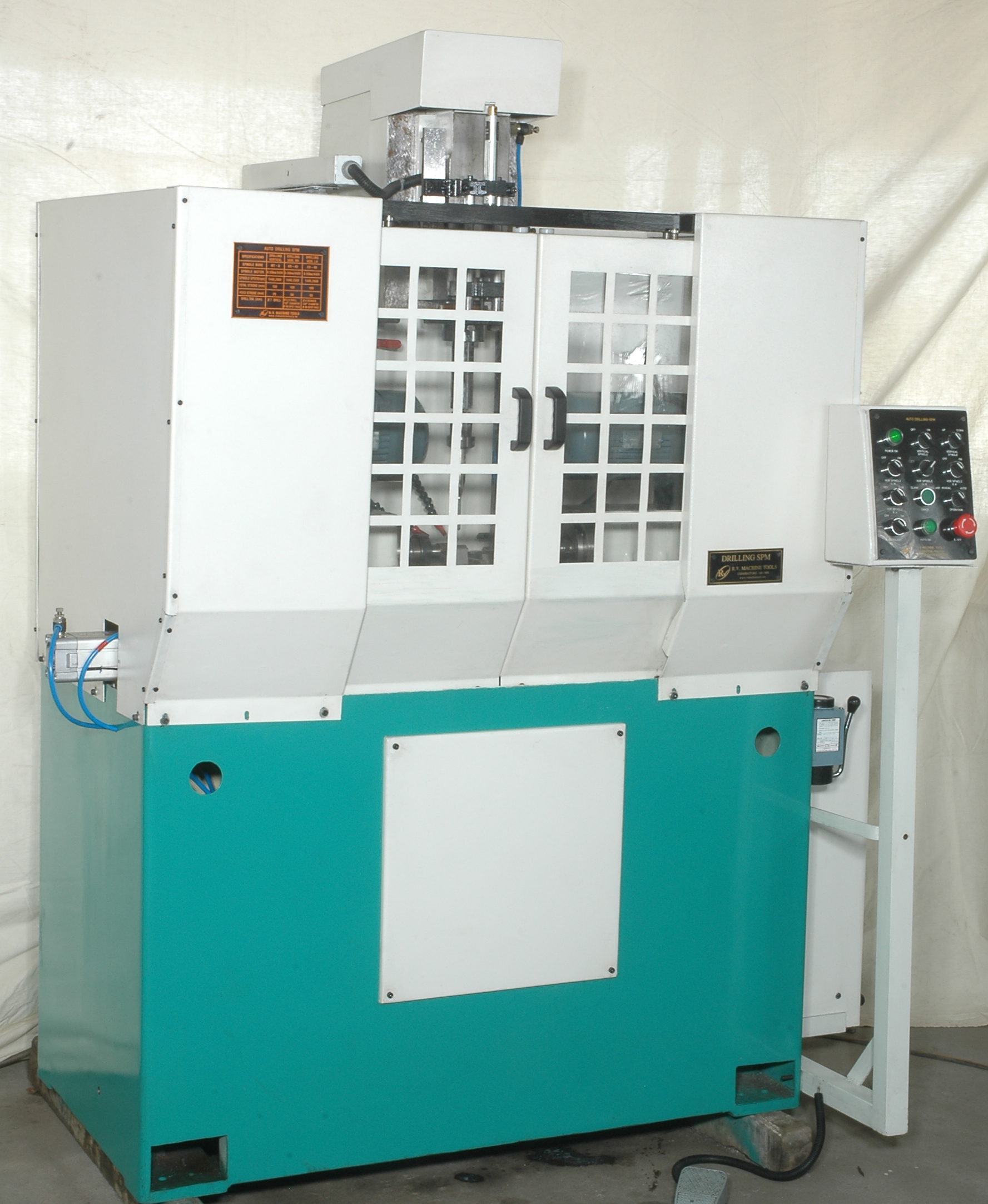

CARBURATOR DRILLING REAMING SPM

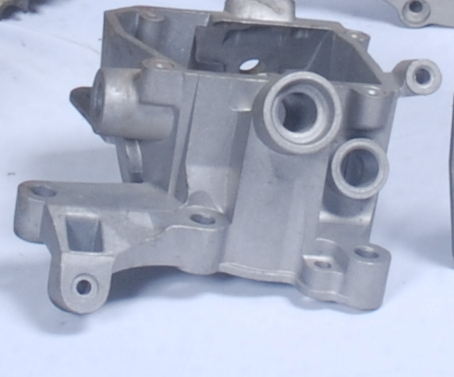

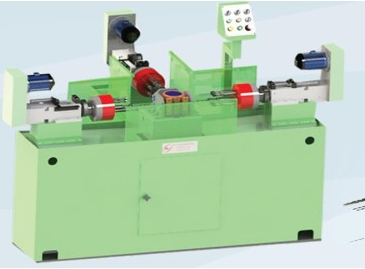

MOTOR BODY DRILLING SPM
NO OF OPERATIONS : 16 Nos
CYCLE TIME : 20SEC
No. Of Axis 3(LH,RRH&REAR)
LH : DrillDia10.5x1No, DrillDia3.3x3Nos
RH : DrillDia10.5x1No, DrillDia2.2mmx4Nos
Rear : DrillDia10.5x1No, DrillDia6.8mmx1No, DrillDia3.3x5Nos
CYCLE TIME : 20SEC
No. Of Axis 3(LH,RRH&REAR)
LH : DrillDia10.5x1No, DrillDia3.3x3Nos
RH : DrillDia10.5x1No, DrillDia2.2mmx4Nos
Rear : DrillDia10.5x1No, DrillDia6.8mmx1No, DrillDia3.3x5Nos
REAR AXLE HOUSING DRILLING SPM

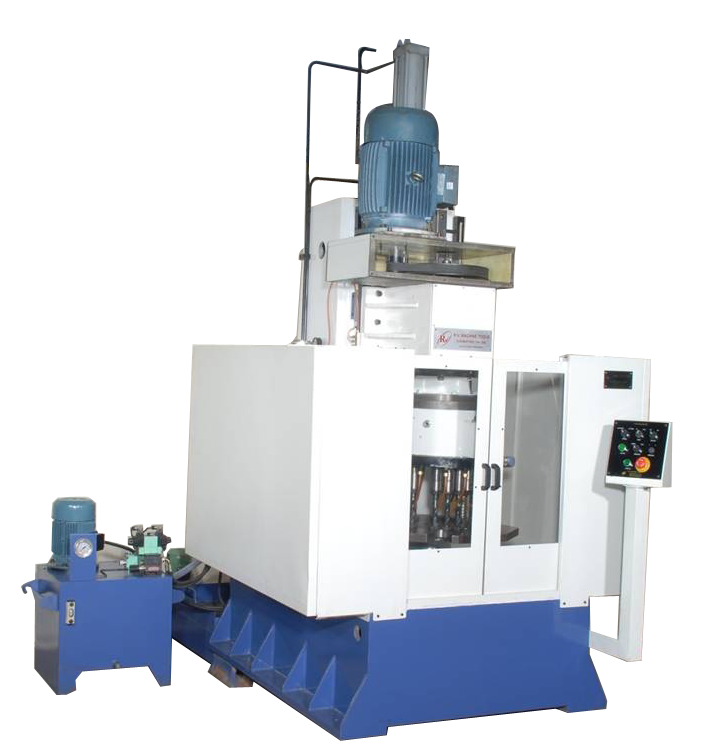

BREAK DRUM DRILLING SPM
No of drill : 10
Drill : dia 23-mm
PCD :335 mm
Drill : dia 23-mm
PCD :335 mm

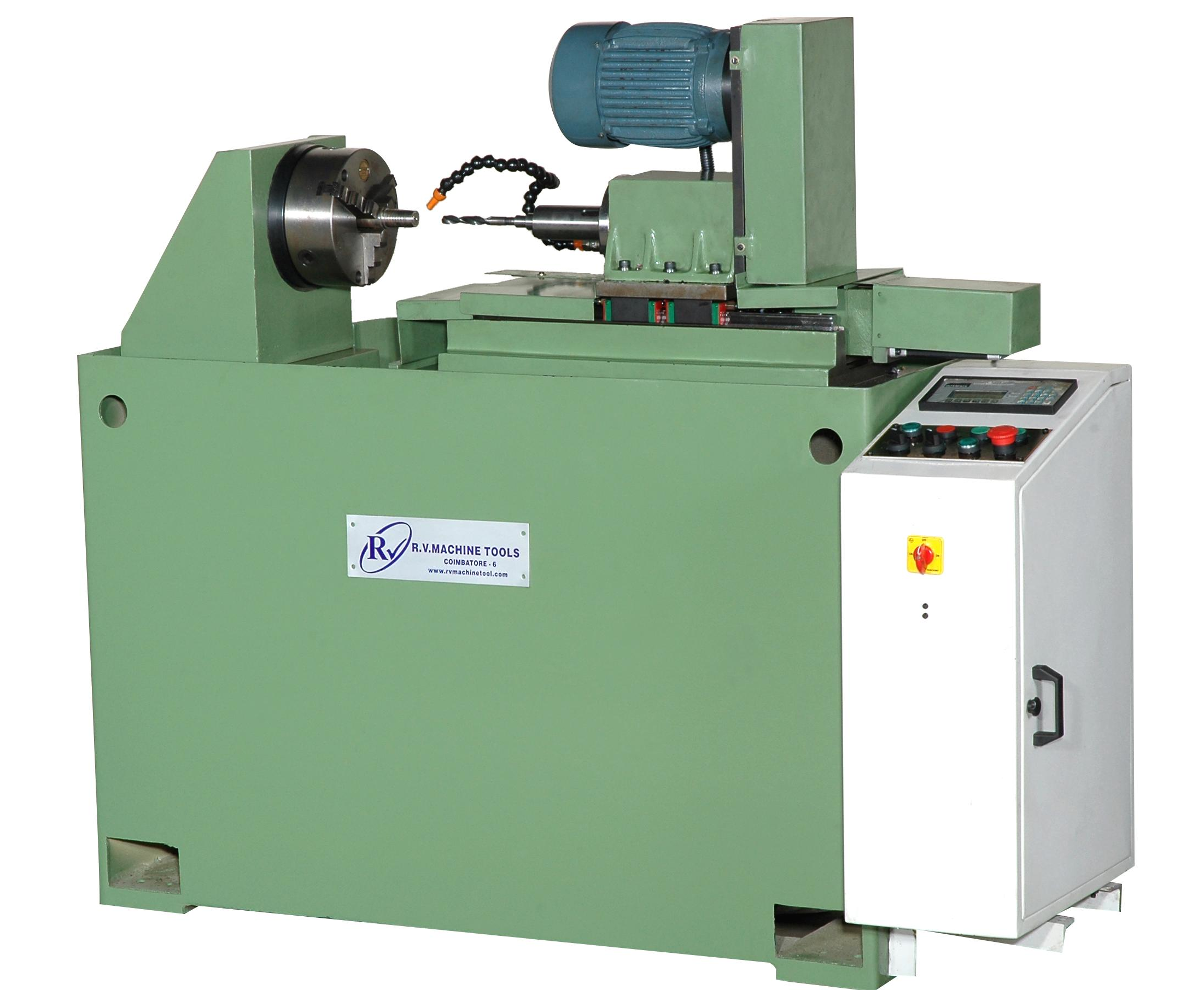

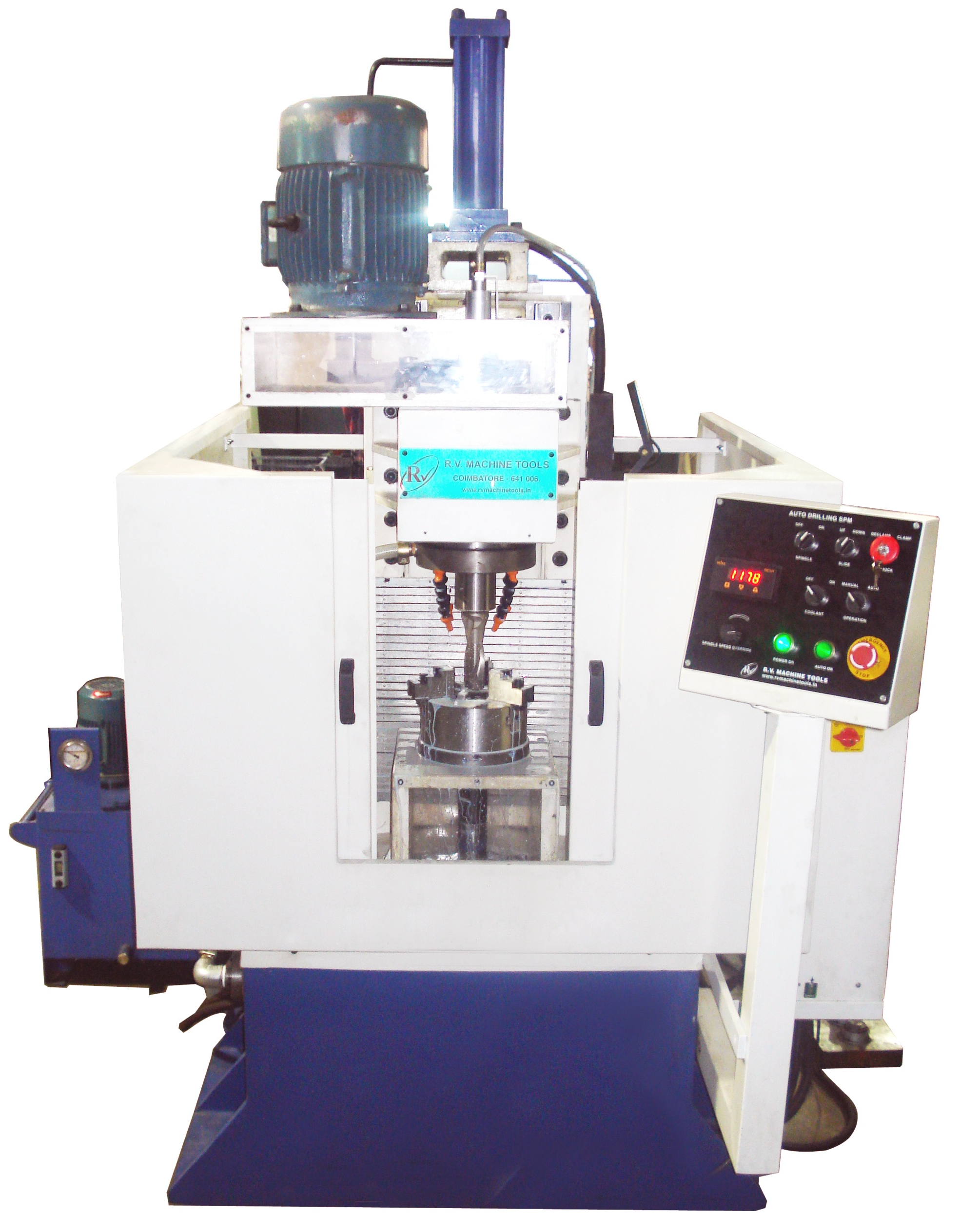

BUSH DRILLING SPM – SERVO

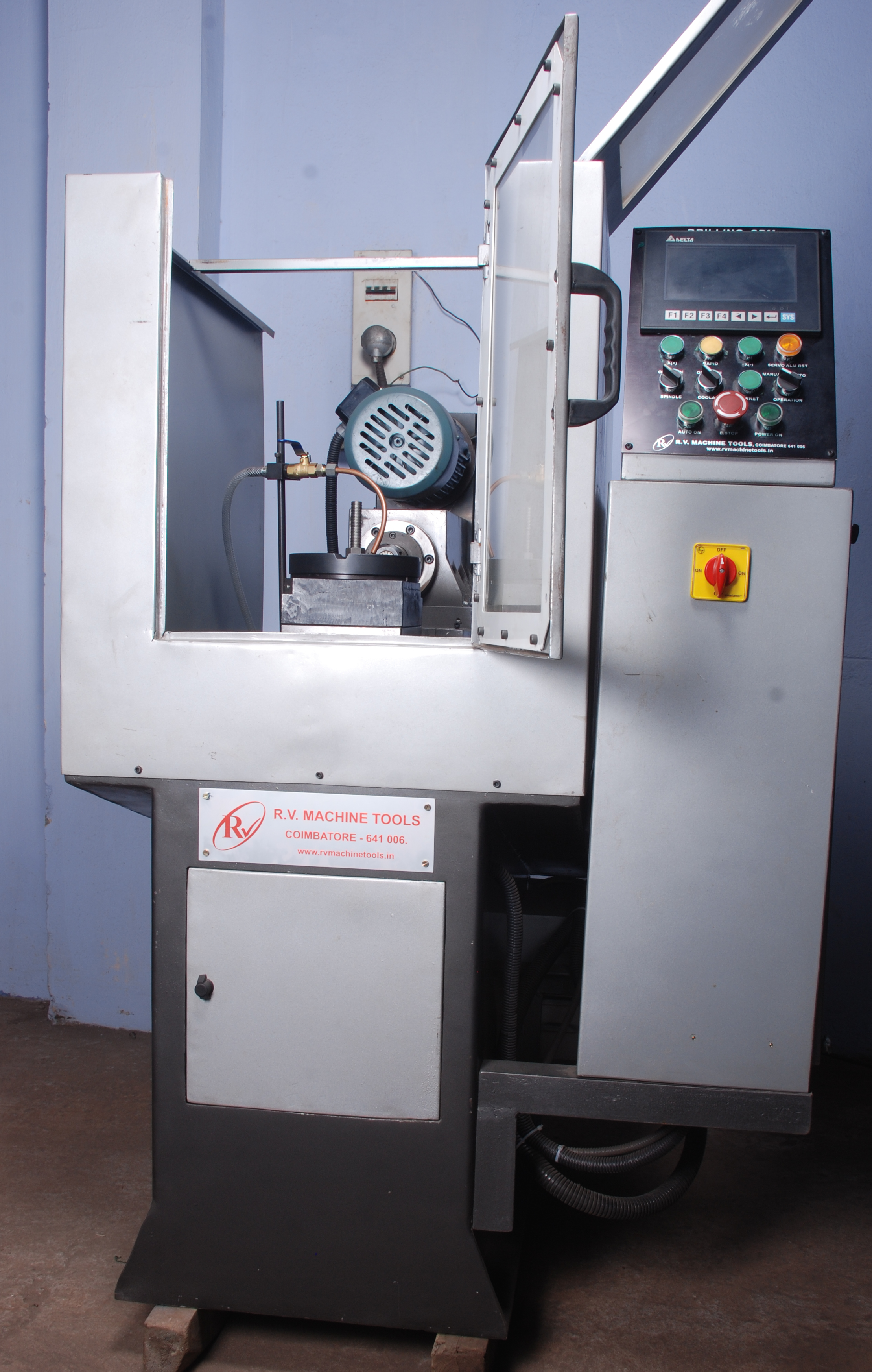

BUSH DRILLING SPM
Drilling Capacity :Dia 10 Mm To 30 Mm
Spindle A24
Spindle Rpm Max 2000 ( VFD)
Part Clamp Hyd Chuck : Dia 150mm
Axis Travel 300 Mm ( Programmable)
Axis Drive Servo
Centralized Lubrication
Flood Coolant System
Through Coolant System
Drilling Capacity :Dia 10 Mm To 30 Mm
Spindle A24
Spindle Rpm Max 2000 ( VFD)
Part Clamp Hyd Chuck : Dia 150mm
Axis Travel 300 Mm ( Programmable)
Axis Drive Servo
Centralized Lubrication
Flood Coolant System
Through Coolant System

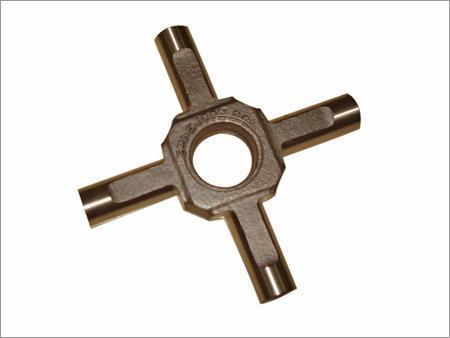

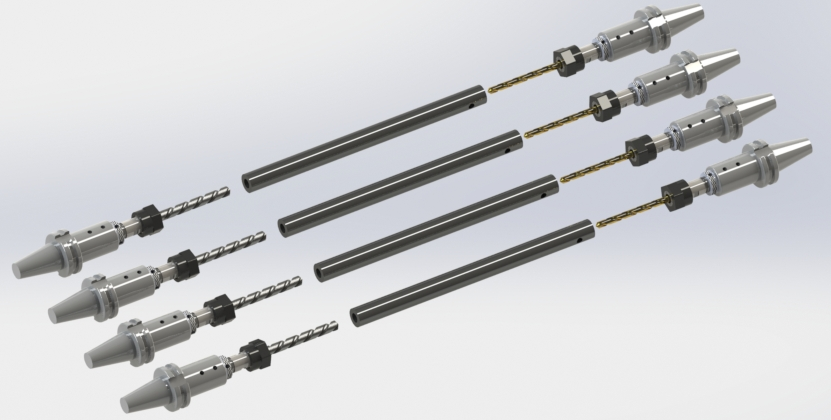

SPIDER DRILLING SPM
SPINDLE BT40
SPINLDE RPM MAX 3000 (VFD)
TOOL CLAMP AUTO
4 STATION INDEXING TABLE
AXIS TRAVEL 200 MM( PROGRAMMABLE )
AXIS DRIVE SERVO
CENTRALISED LUBRICATION SYSTEM
COOLANT SYSTEM
SPINLDE RPM MAX 3000 (VFD)
TOOL CLAMP AUTO
4 STATION INDEXING TABLE
AXIS TRAVEL 200 MM( PROGRAMMABLE )
AXIS DRIVE SERVO
CENTRALISED LUBRICATION SYSTEM
COOLANT SYSTEM

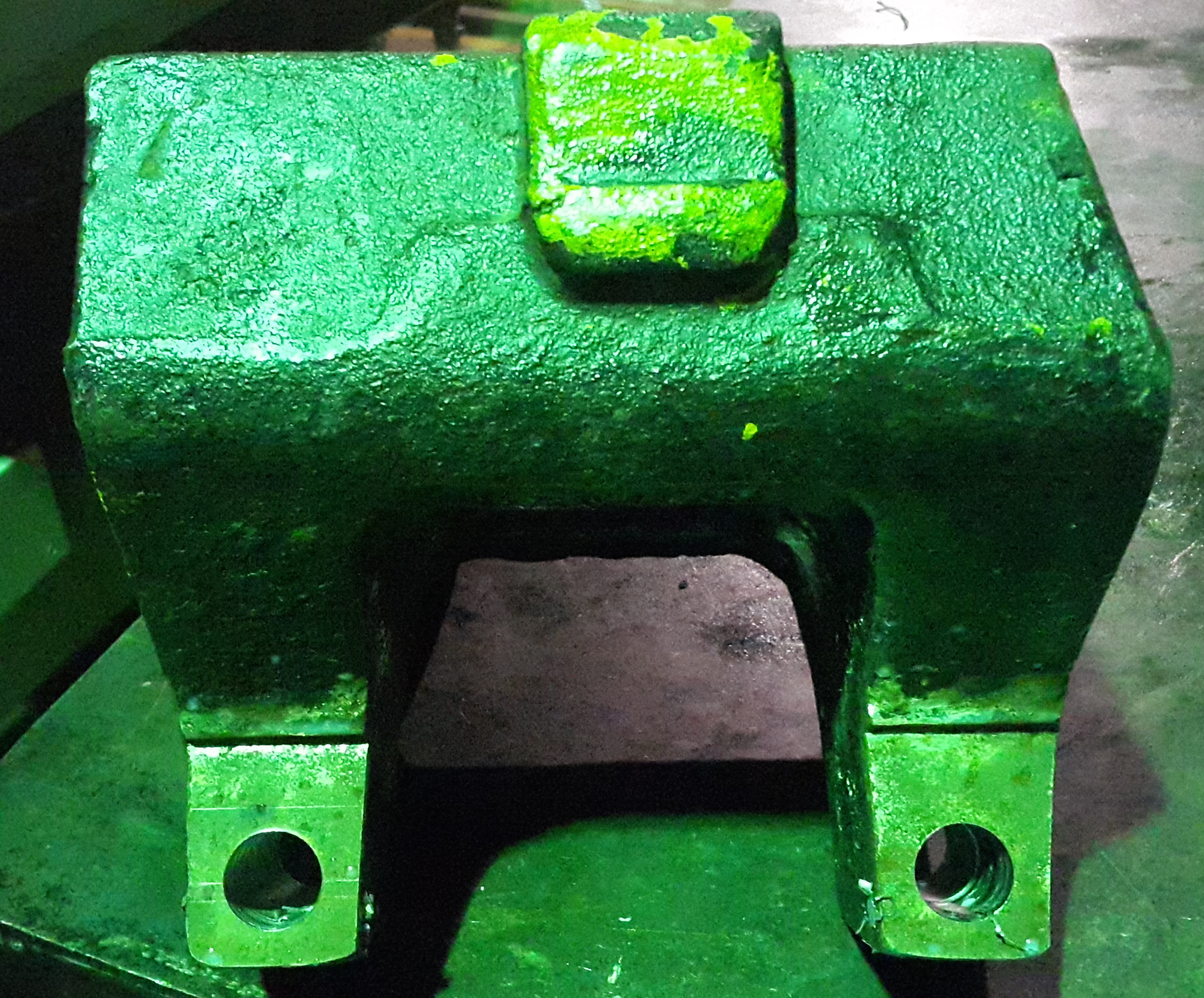

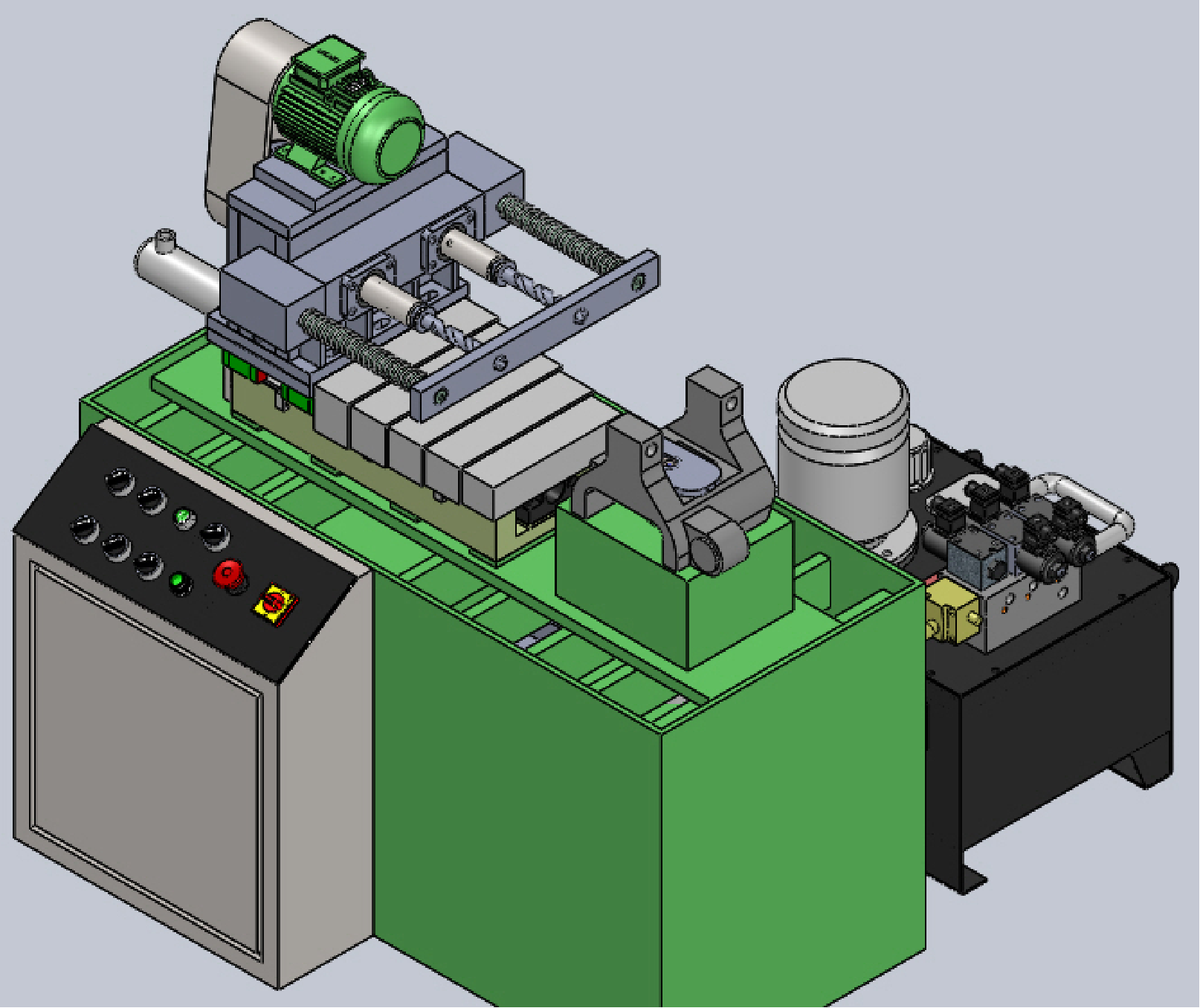

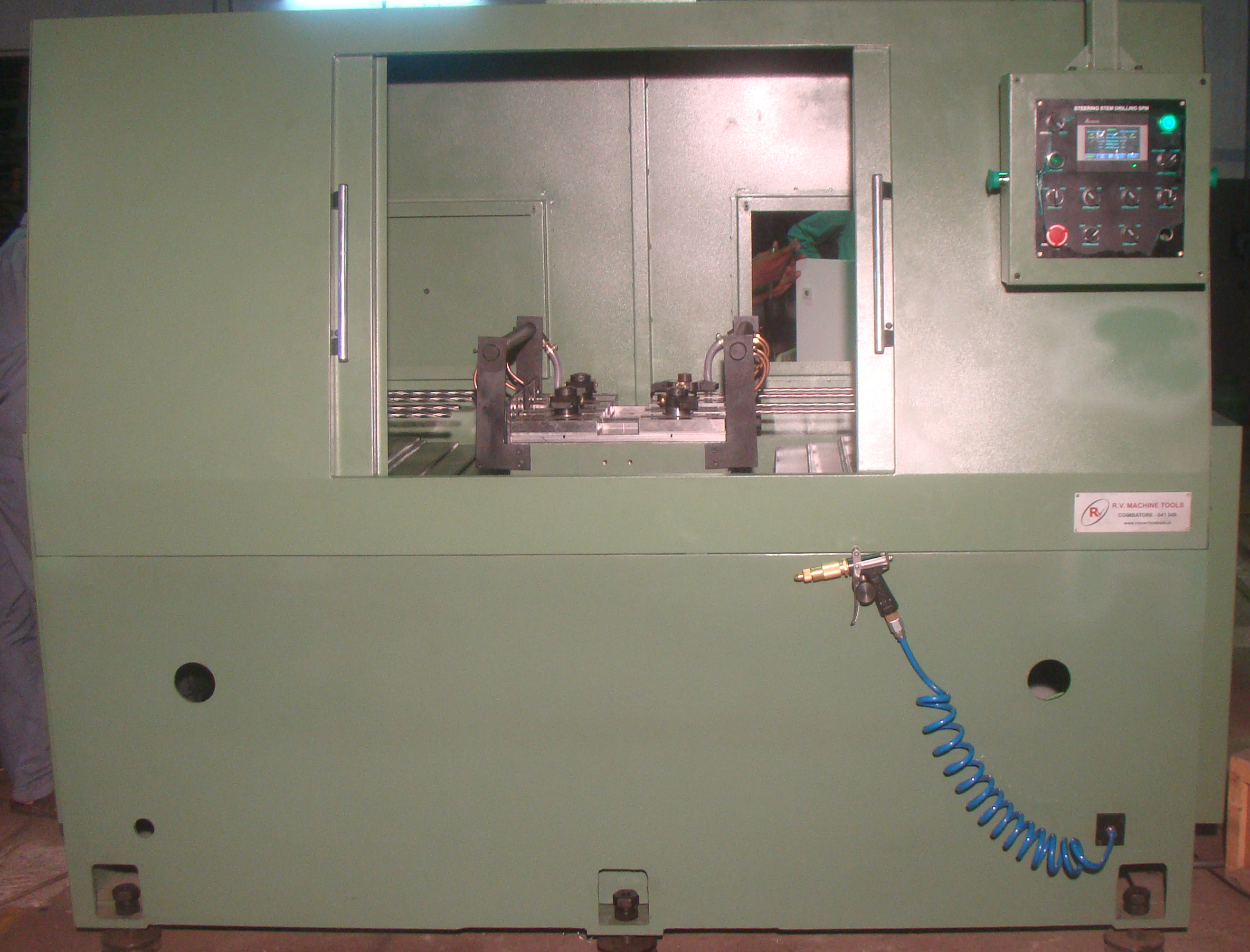

STREEING STEM DRILLING SPM
Part : Steering Stem
No of operation : 4+4=8 Left side
DrillingDia14mmx95mm Drill Right Side
Drilling : Dia8mmx115mm Deep Cycle time:120 sec
No of operation : 4+4=8 Left side
DrillingDia14mmx95mm Drill Right Side
Drilling : Dia8mmx115mm Deep Cycle time:120 sec

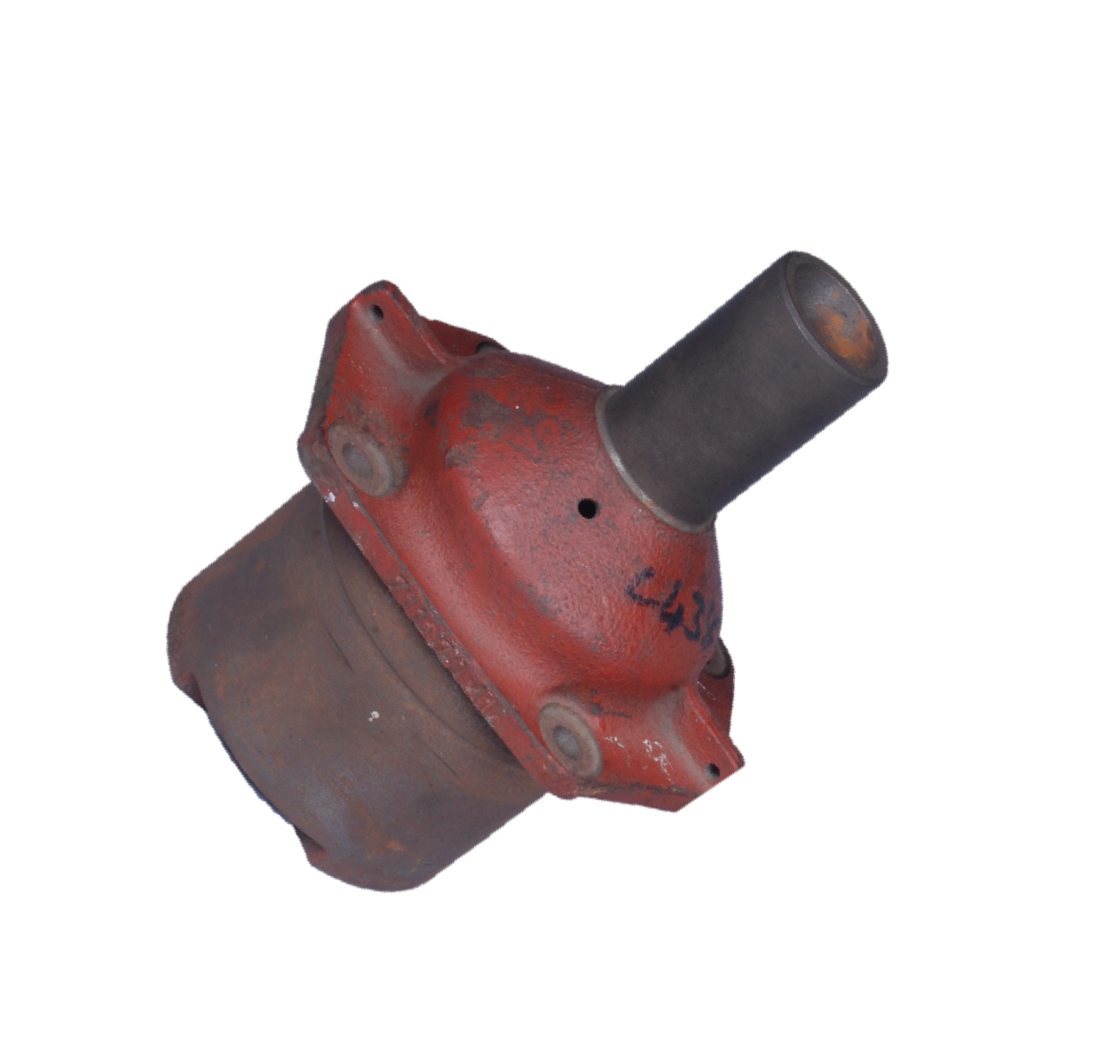

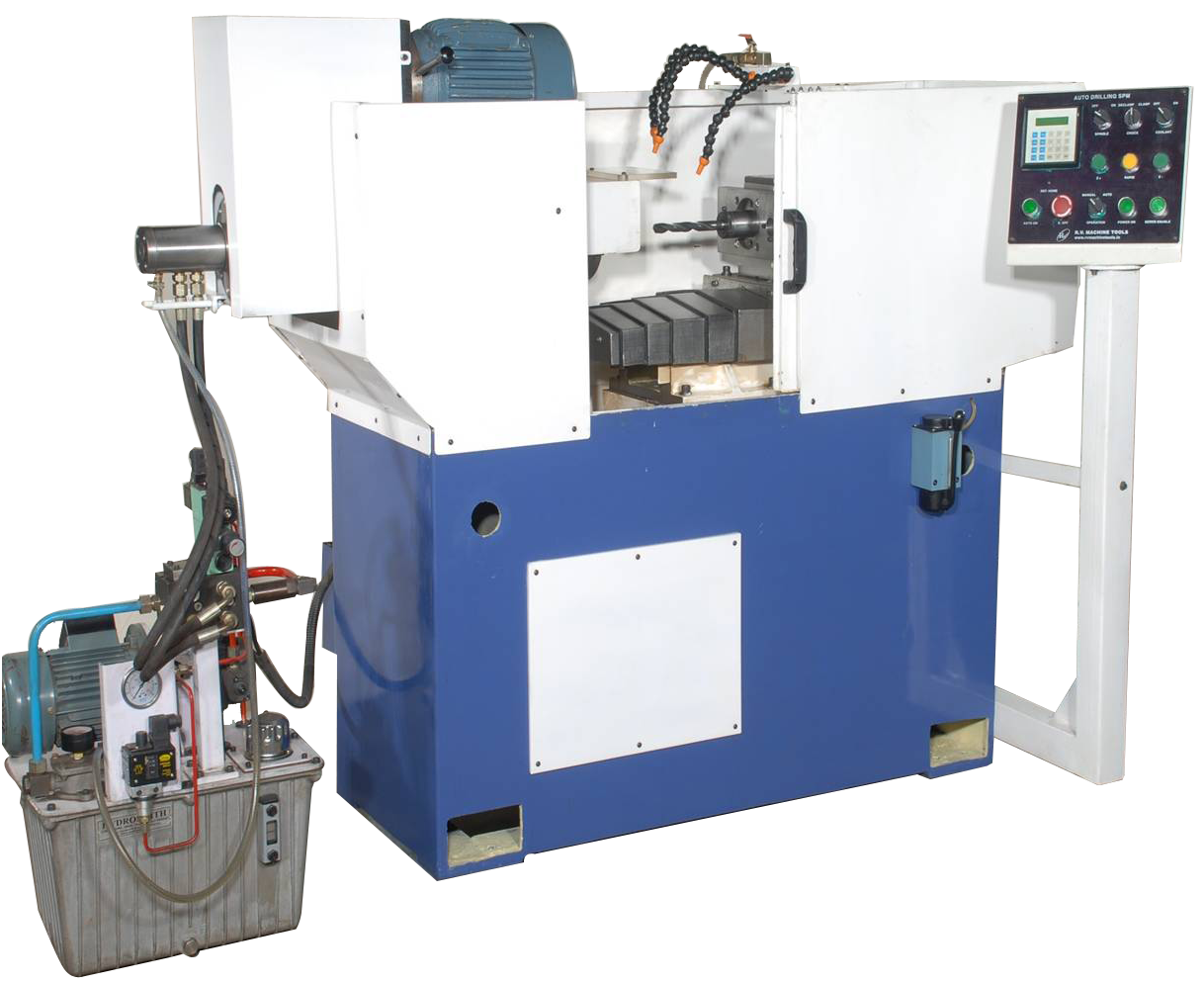

2 SPINDLE DRILLING SPM

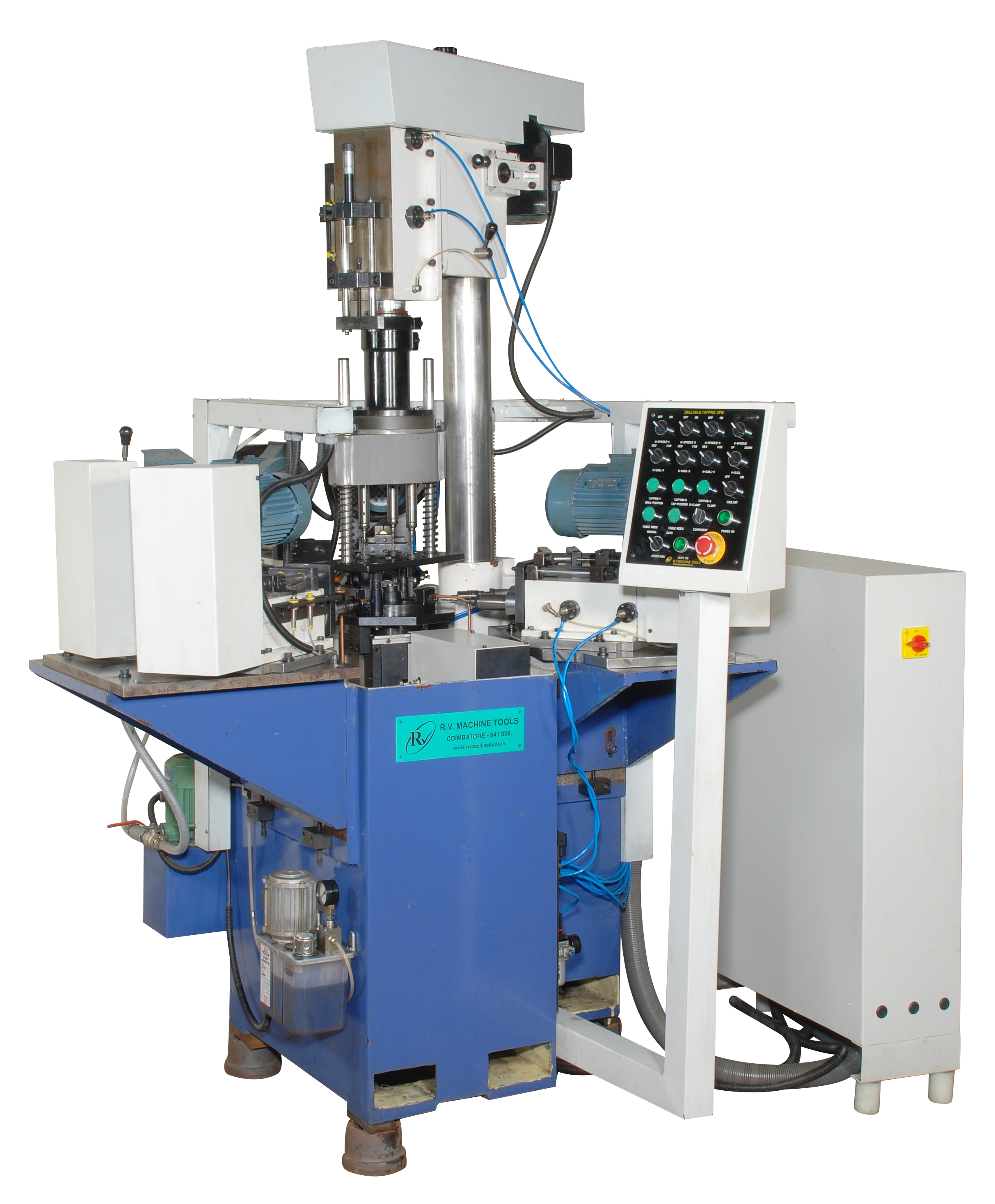

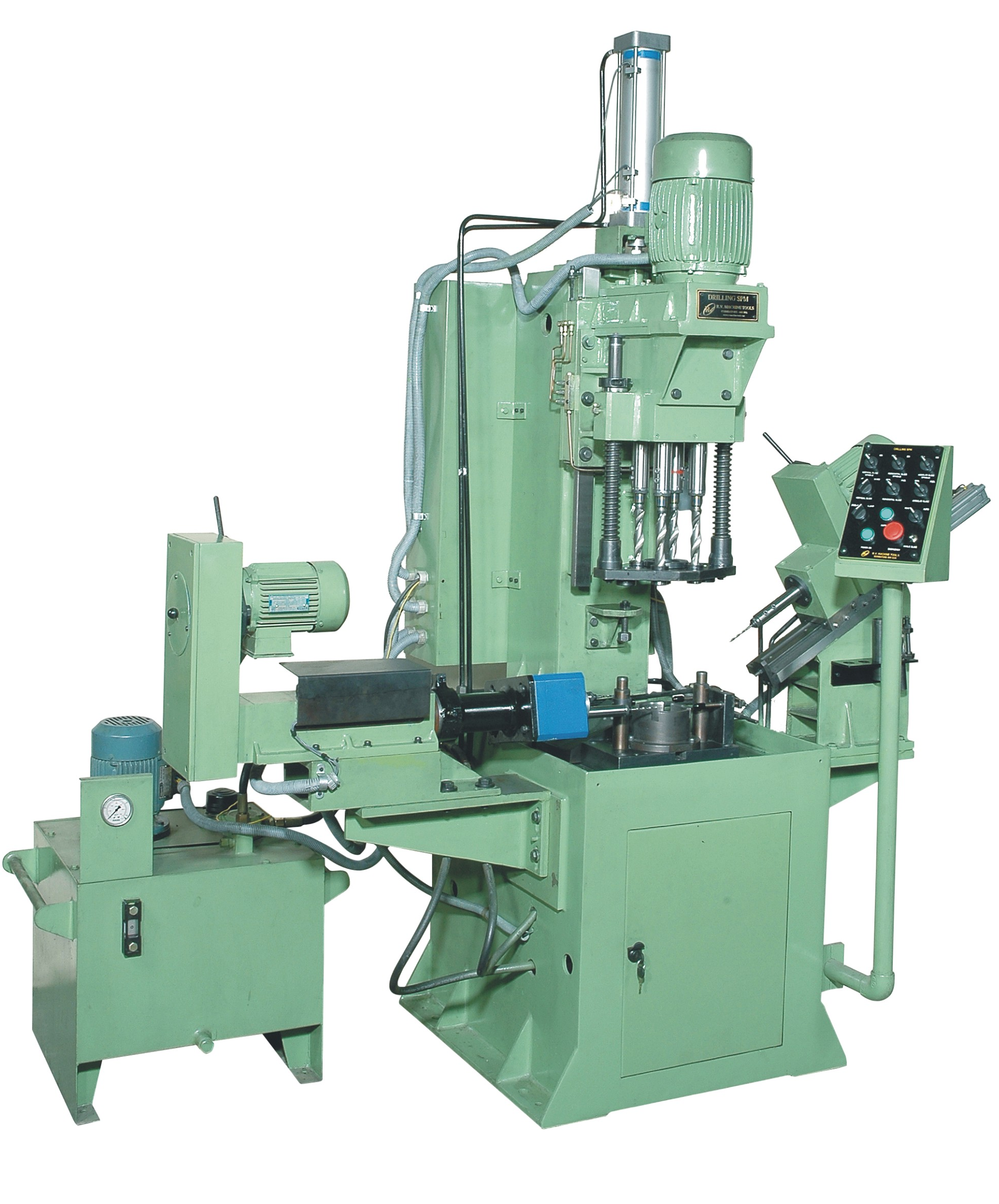

7 SPINDLE DRILLING SPM
NO OF OPERATIONS : 7
Operation Cycle Time : 20 Sec
Vertical 4Nos :Dia 11mm X 4 Drill
Horizontal 2 Nos :Dia 6.5 Mm X 2 Drill
Angular One No : Dia 5.5 Mm X 1 Drill
Part Clamp : Hydraulic
Operation Cycle Time : 20 Sec
Vertical 4Nos :Dia 11mm X 4 Drill
Horizontal 2 Nos :Dia 6.5 Mm X 2 Drill
Angular One No : Dia 5.5 Mm X 1 Drill
Part Clamp : Hydraulic

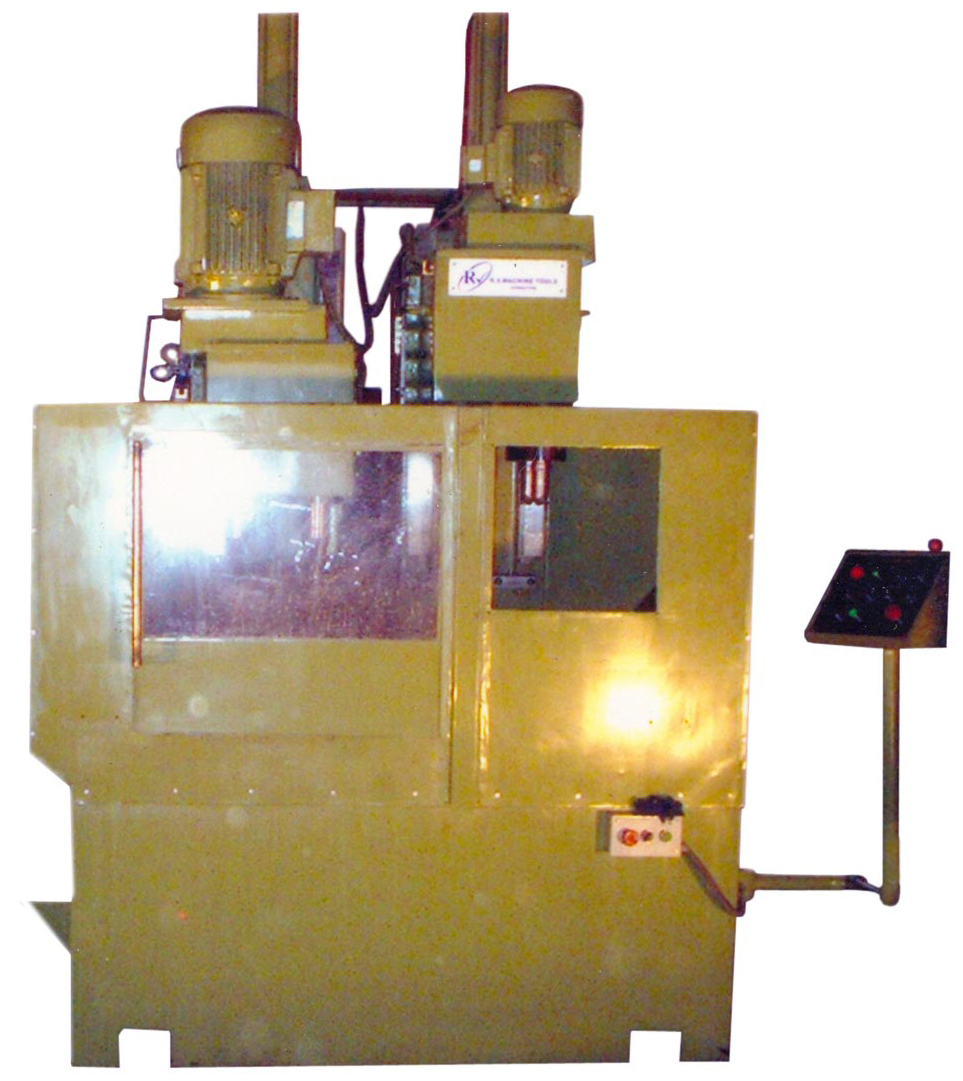

DEEP HOLE DRILLING MACHINE -SERVO
Drill size : 5 Mm To 16 Mm
Spindle Rpm : Max 3000 (Vfd)
Spindle Parallel Bore
Part Holding Self Centering Chuck
Axis Travel : 300 Mm ( Programmable)
Axis Drive Servo Motor
Centralized Lubrication Flood Coolant System
Spindle Rpm : Max 3000 (Vfd)
Spindle Parallel Bore
Part Holding Self Centering Chuck
Axis Travel : 300 Mm ( Programmable)
Axis Drive Servo Motor
Centralized Lubrication Flood Coolant System
TRUCK SUSPENSION PART DRILLING BORING SPM
MAT : FORGED STEEL
DRILL : DIA 47 mm X 3 Nos
BORING: DIA 48 H7 x 3 Nos
DRILL : DIA 47 mm X 3 Nos
BORING: DIA 48 H7 x 3 Nos

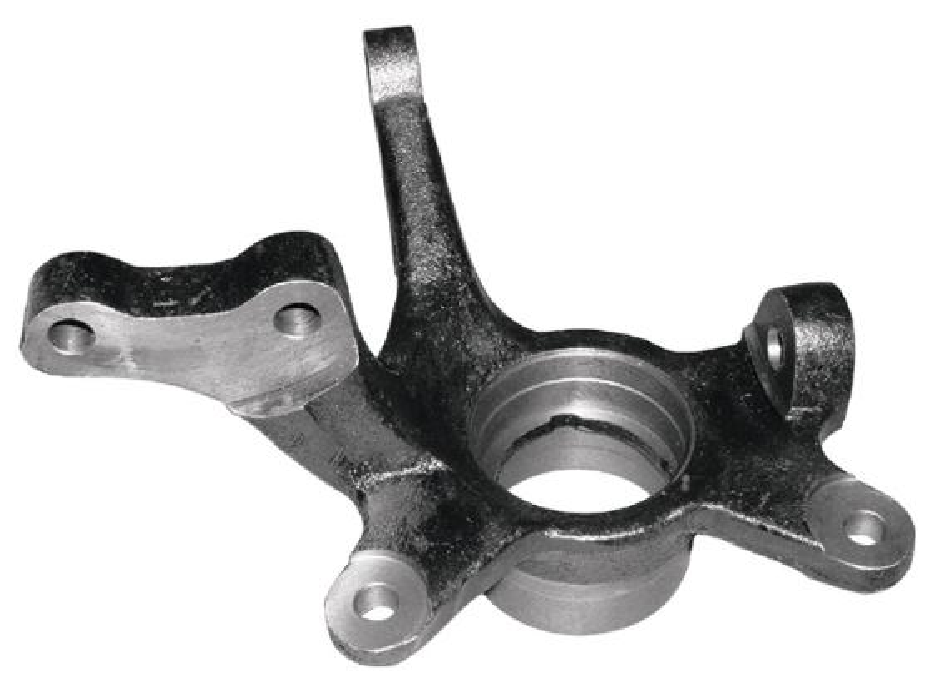

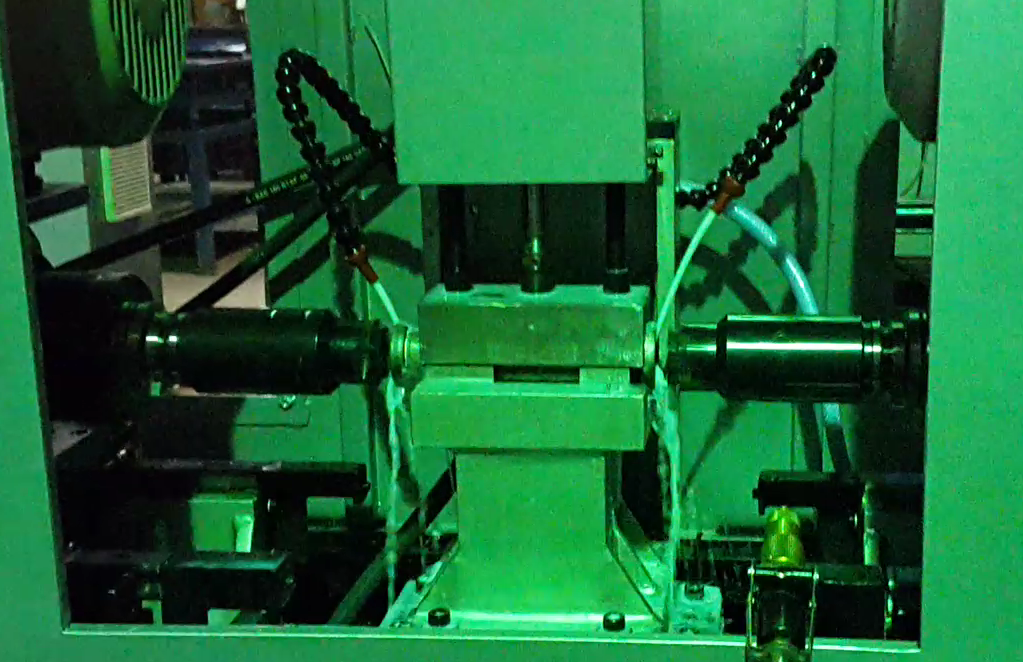

KNUCKLE BORING SPM
MAT SG CAST IRON
BORE SIZE : 65 mm x 70 mm deeep
CYCLE TIME : 60 SEC
SPINDLE BT 40
SPINLDE RPM 200
AXIS TARVEL 300 MM ( HYDRAULIC)
PART CLAMP MANUAL FIXTURE
AUTO LUBRICATION
FLLOD COOLANT
BORE SIZE : 65 mm x 70 mm deeep
CYCLE TIME : 60 SEC
SPINDLE BT 40
SPINLDE RPM 200
AXIS TARVEL 300 MM ( HYDRAULIC)
PART CLAMP MANUAL FIXTURE
AUTO LUBRICATION
FLLOD COOLANT

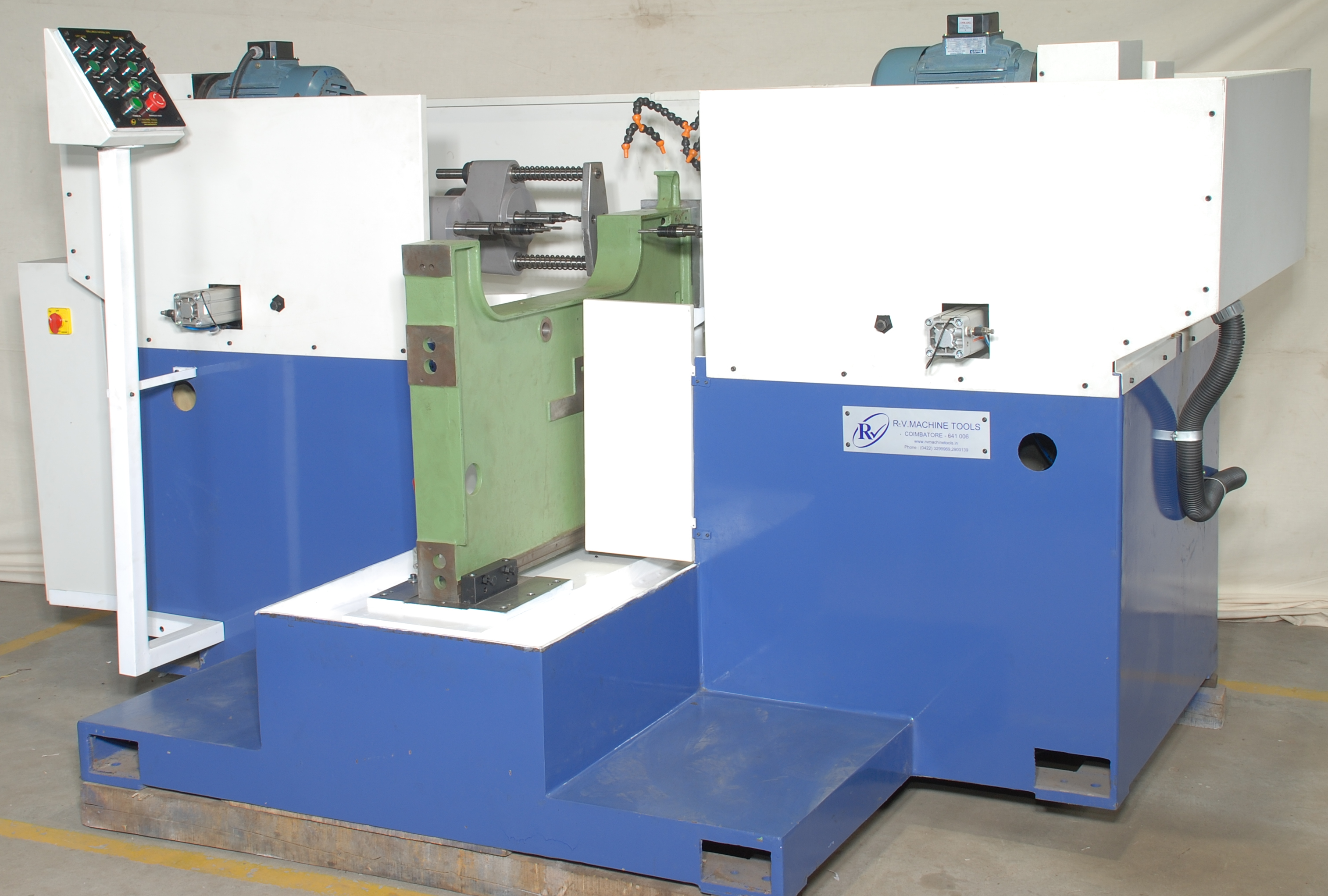

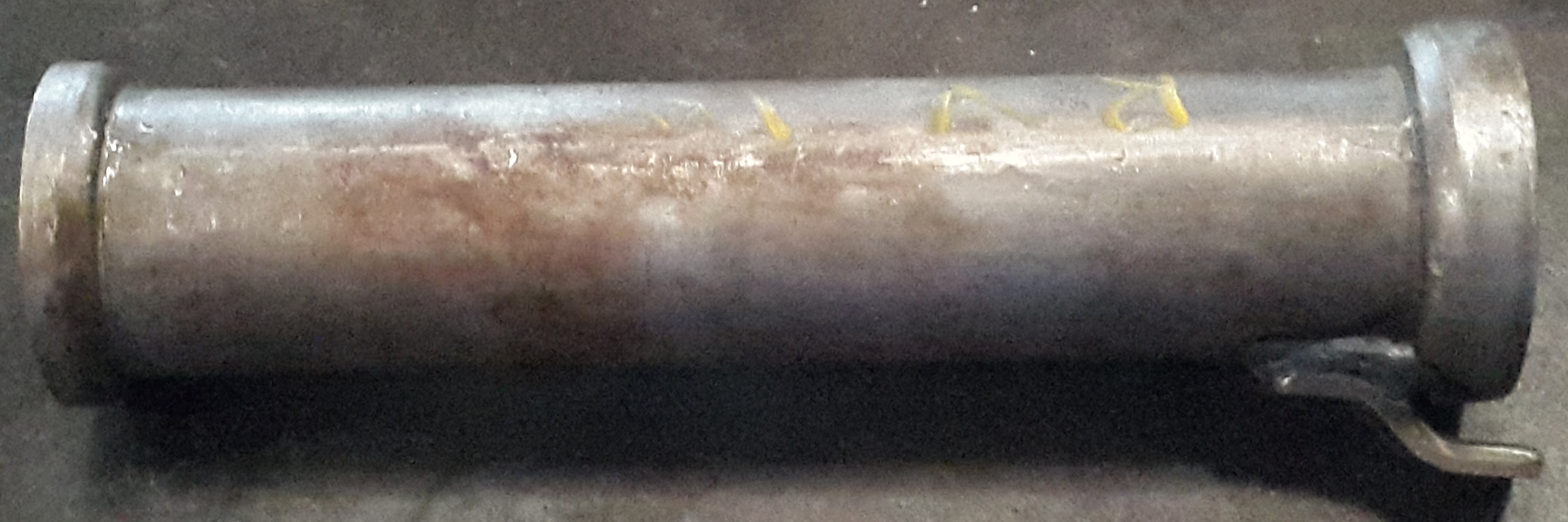

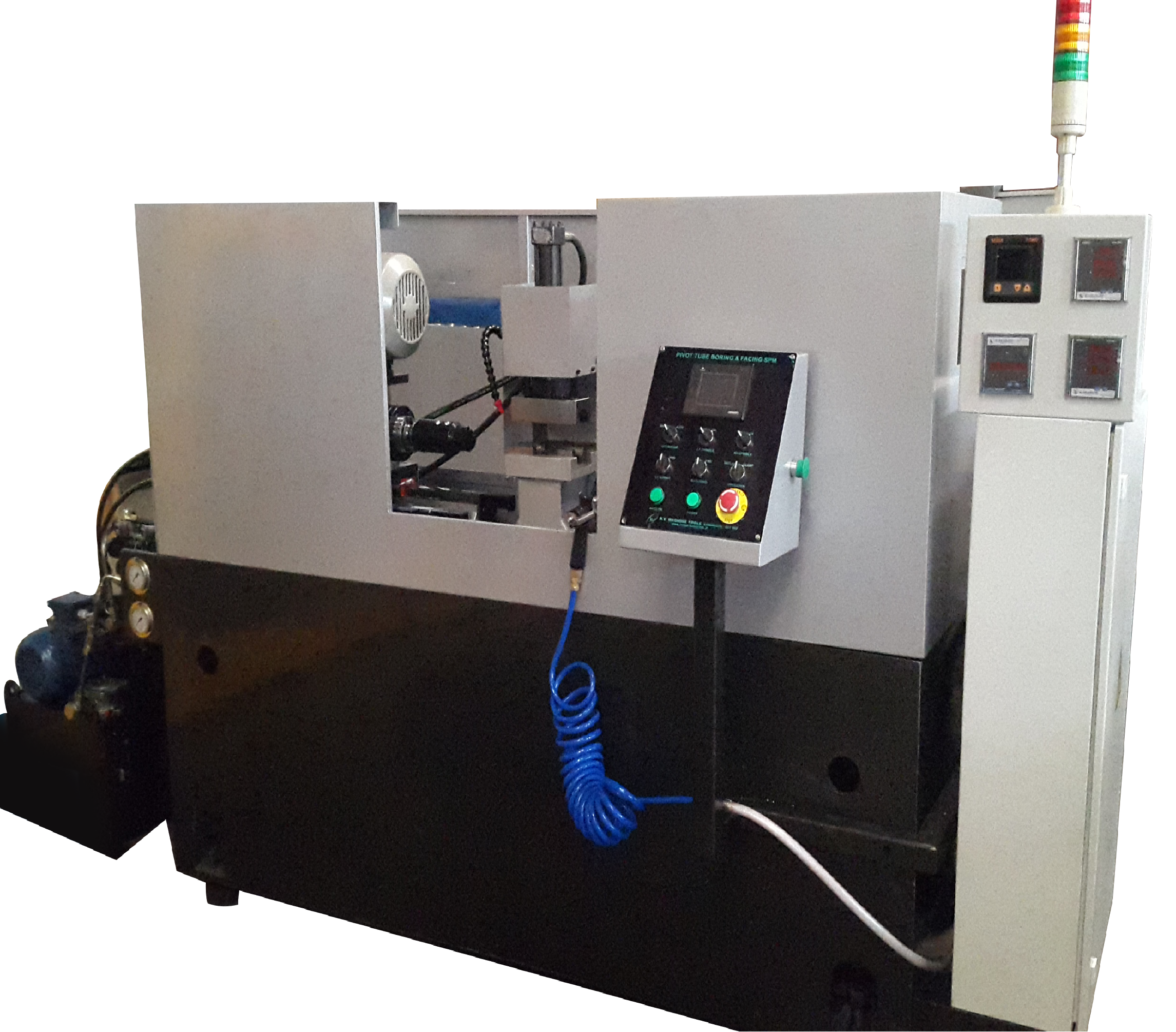

TUBE HEAD BORING SPM
Left Side bore : 44.25 X 1 deep
Right side bore : 49.25 X 10 deep
No of Spindle : 2
Spindle nose : BT 40
Spindle rpm : 1200
Axis Travel : 300 Mm (Hydraulic)
Part Clamp : Hydraulic
Special Boring Tools
Auto Lubrication
Auto Coolant
Auto Door
Right side bore : 49.25 X 10 deep
No of Spindle : 2
Spindle nose : BT 40
Spindle rpm : 1200
Axis Travel : 300 Mm (Hydraulic)
Part Clamp : Hydraulic
Special Boring Tools
Auto Lubrication
Auto Coolant
Auto Door

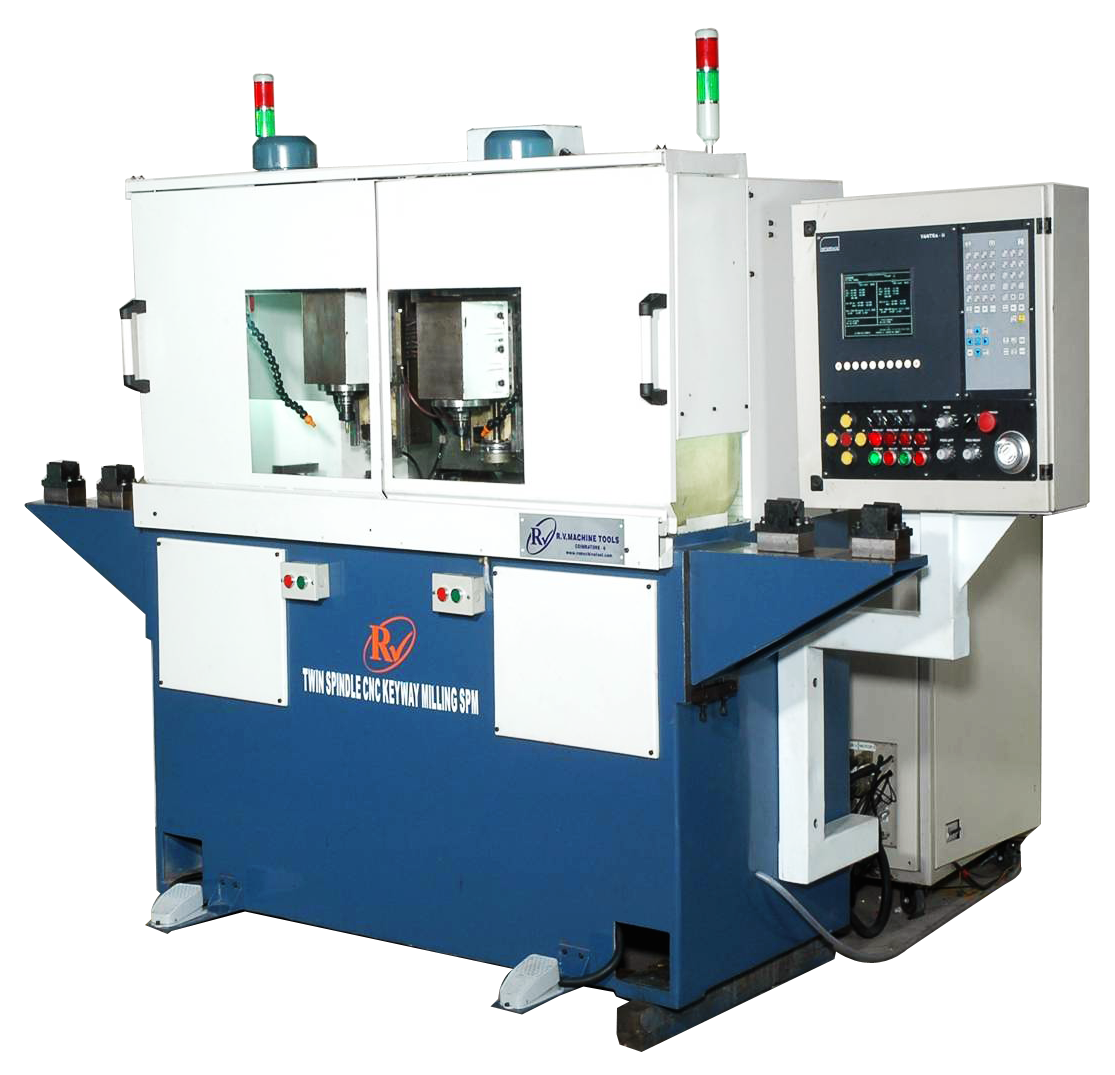

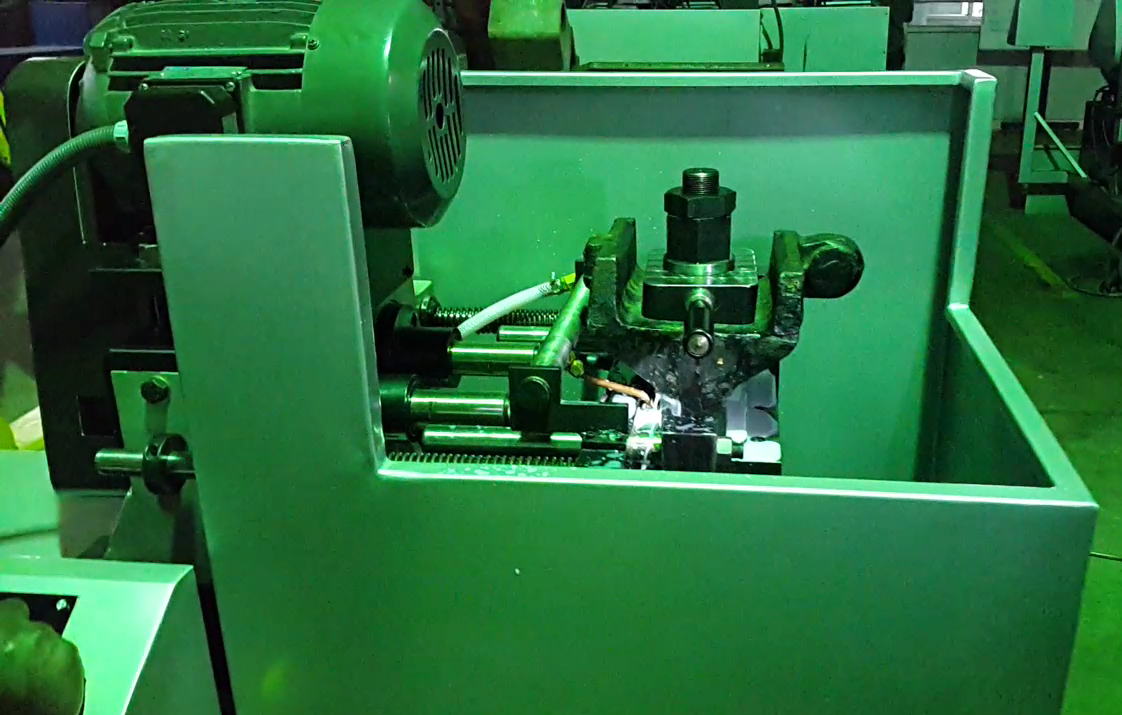

TWIN SPINDLE KEY WAY MILLING SPM
SPINDLE : BT 40 (CATRIDGE SPINDLE)
SPINLDE RPM : 3000 ( VFD)
Z AXIS TRAVEL:200MM
X AXIS TRAVEL : 200MM
Y AXIS TRAVEL :100MM
PART CLAMP SELF CENTERING VICE
AUTO LUBRICATION
FLOOD COOLANT SYSTEM
SPINLDE RPM : 3000 ( VFD)
Z AXIS TRAVEL:200MM
X AXIS TRAVEL : 200MM
Y AXIS TRAVEL :100MM
PART CLAMP SELF CENTERING VICE
AUTO LUBRICATION
FLOOD COOLANT SYSTEM
