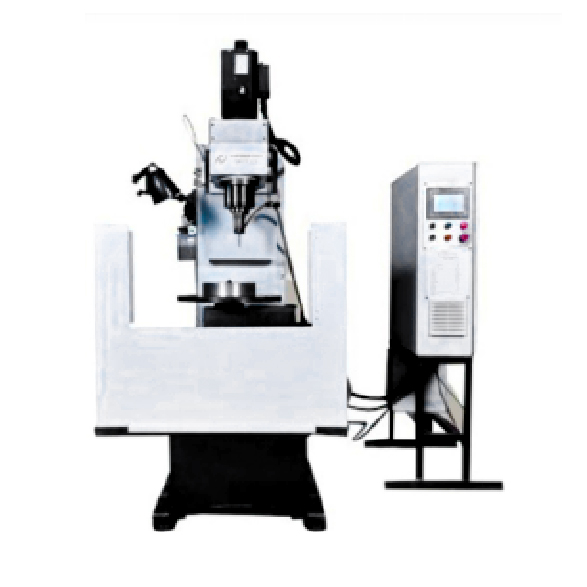

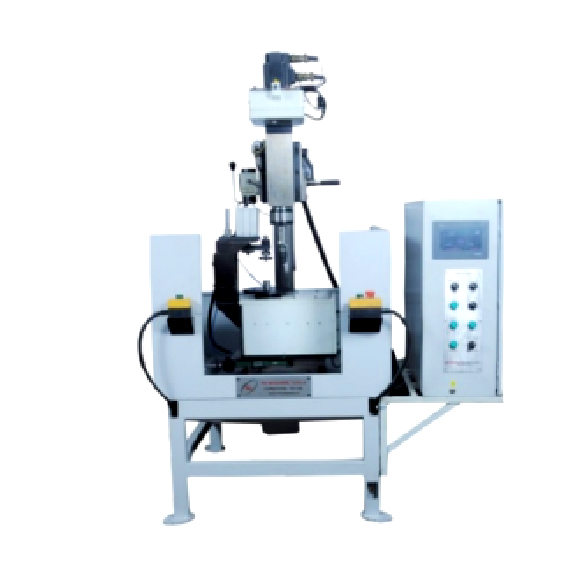

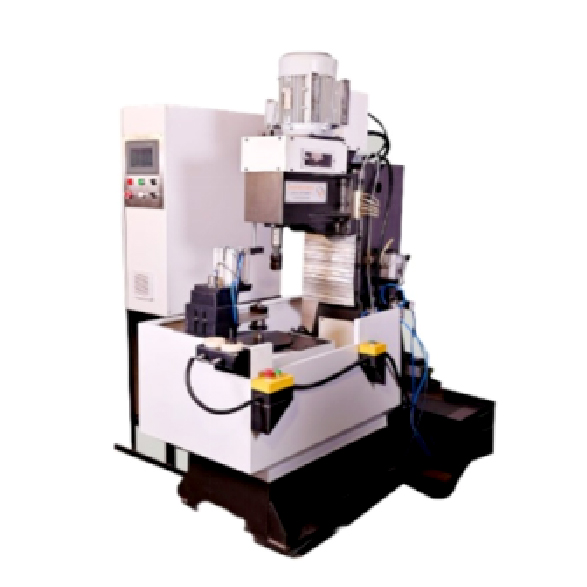

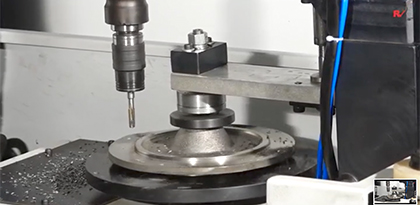

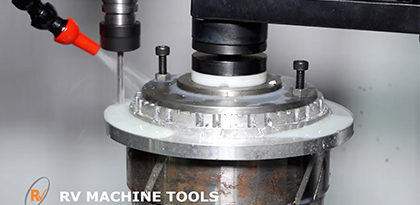

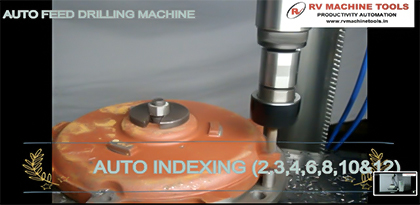

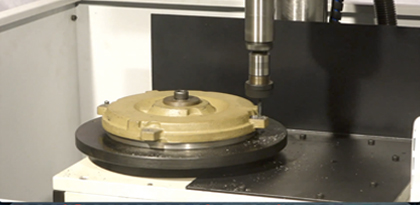

PCD DRILLING TAPPING MACHINE
PCDT 12
PCDT 20
PCDT 25
PCDT 40
STANDARD FEATURES
PCD max 400 mm
Programmable fast indexing
Steel fabricated stress relieved, fine machined base, column and head stock
Precision linear motion guide ways and precision ball screw
Precision cartridge spindle
Precision indexing table 1 Arc min accuracy
Number of indexing, PCD selection in screen
Peck drilling and tapping
Double hand cycle start switch
Touch screen panel
Metric / TPI selection
Max 100 number of equal index program
Drilling after tapping cycle
3 + 3 tool auto program selection
OPTIONAL FEATURES
Auto tool lock system
Part pneumatic auto clam option
Coolant system
| Capacity | PCDT 12 | PCDT 20 | PCDT 25 | PCDT 40 |
|---|---|---|---|---|
| Drilling in steel ( 400 n/mm²) | 12 mm | 20 mm | 25 mm | 38 mm |
| Tapping in steel ( 400 n/mm²) | M 8 | M 12 x 1.5 | M 16 x 2 | M 24 |
| Work Table | Dia 200 | Dia 250 | Dia 400 | Dia 400 |
| Max Weight on Table | 10 kg | 25 kg | 100 kg | 100 kg |
| Spindle Nose to Rotary table Min -max | 100 – 400 mm | 100 – 400 mm | 150 – 550 mm | 150 – 550 mm |
| Spindle | ||||
| Spindle Type | MT2 /PB-20/ER20 | MT3 /PB-25 | BT40 /PB-28 | BT40 /PB28 – Manual tool clamp |
| Spindle speed Max | 5000 rpm | 5000 rpm | 3000 rpm | 3000 rpm |
| Spindle Power | 1.5 kw/440v | 2.2 kw /440 v | 5.5 Kw /440v & 7.5 kw/440v | 7.5 Kw /440v & 11 kw/440v |
| Z -Axis servo | ||||
| Axis Travel | 300 mm | 300 mm | 400 mm | 400 mm |
| Axis Speed max | 10 m/min | 10 m/min | 10 m/min | 10 m/min |
| Axis accuracy | 0.02 | 0.02 | 0.02 | 0.02 |
| Y -Axis servo | ||||
| Axis Travel max | 125mm | 125mm | 300 mm | 300 mm |
| Axis Speed max | 3 m / min | 3 m / min | 3 m / min | 3 m / min |
| Axis | 0.02 | 0.02 | 0.02 | 0.02 |
| Accuracy | - | - | - | - |
| Servo Rotary Table | ||||
| Table Dia – Tapped Hole | 575 x 715 x 1650 | 810 x 920 x 1950 | 1750 x 2000 x 2500 | 1750 x 2000 x 2600 |
| No of Indexing | 2kW/440V+-5V /50Hz +-1Hz | 4kW/440V+-5V /50Hz +-1Hz | 7KW/440V+-5V /50Hz +-1Hz | 15KW/440V+-5V /50Hz +-1Hz |
| Accuracy | 1 arc min | 1 arc min | 1 arc min | 1 arc min |
| Coolant Assembly | ||||
| Tank Capacity | 25 Lit | 25 Lit | 25 Lit | 40 Lit |
| Pump | 0.22kw /440v | 0.22kw /440v | 0.37 kw /440v | 0.37kw /440v |
| Lubrication | ||||
| Centralized Lubrication | Centralized Lubrication | Centralized Lubrication | Centralized Lubrication | Centralized Lubrication |
| Electrical and Control panel | ||||
| Machine Dimension LBH in mm (Approx) | 7’’ touch screen Operating panel, Drilling & Tapping Selection screen, Peck feed , No of indexing , pcd, Rapid and feed length, metric & TPI | |||
| Service Requirement | ||||
| Machine Dimensions LBH | 600mm x1000 mm 1700 mm | 600mm x1000 mm 1700 mm | 1350mm x1650 mm x2300 mm | 1350mm x1650 mm x2300 mm |
| Machine | 4 KW/440V+-5V /50Hz | 6 KW/440V+-5V /50Hz | 7 KW/440V+-5V /50Hz | 20 KW/440V+-5V /50Hz |
| power | +-1Hz | +-1Hz | +-1Hz | +-1Hz |
