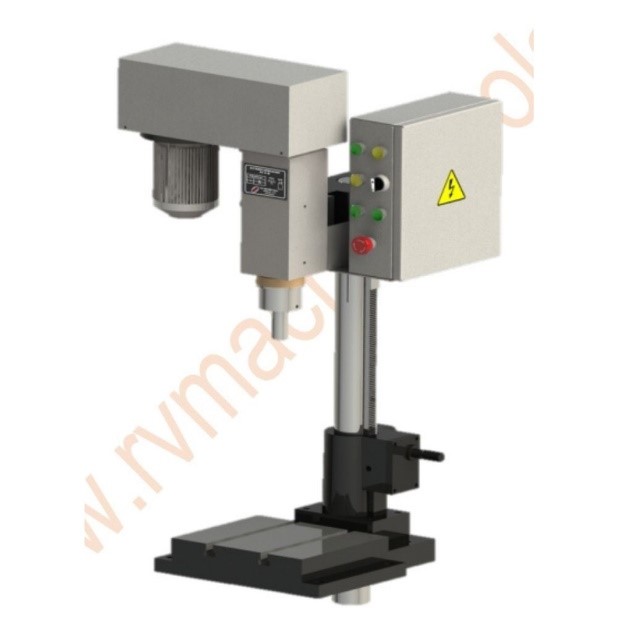

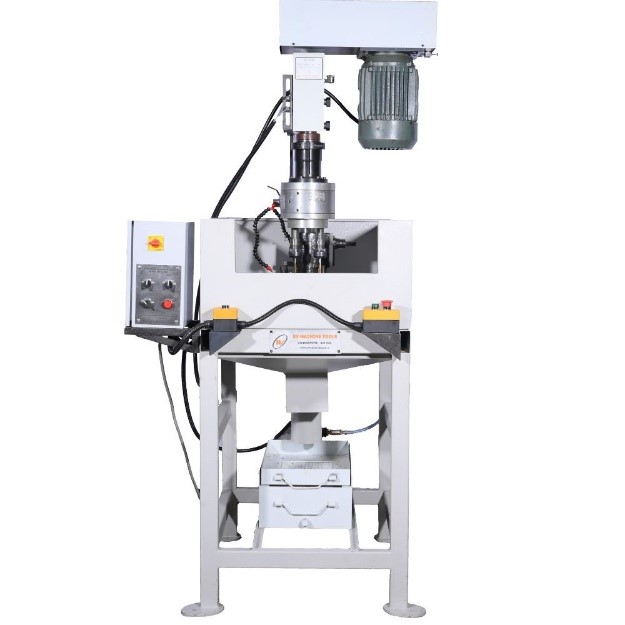

TAPPING MACHINE LEAD SCREW MODEL
RVT 8-60-LS

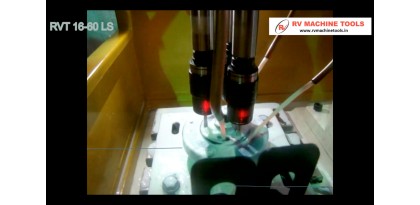

RVT 16-60-LS
(MULTI SPINDLE HEAD)
STANDARD FEATURES
Low cost pitch control tapping machine
Can be mounted multi spindle Tapping head
All possible customized pitch by changing LEAD SCREW and NUT and LH thread
Hardened and thread grounded LEAD SCREW
P B material Lead screw NUT
Precisely bored, coned, quill bore
Grounded plated quill
Hardened and grounded spindle
Thread grounded spindle
Adjustable column for wide range fixture accommodation
Ideal for productivity through multi spindle drilling and single drilling
Can be changed Lead Screws & nut according to the pitch size
OPTIONAL FEATURES
Machine stand
Electrical panel
Coolant system
| Description | RVT 8-60-LS (Lead screw) | RVT 16-60-LS (Lead screw) |
|---|---|---|
| Max. Tapping Capacity In steel (400 N/mm²) | M5 x 0.8 – M8 x 1.25 | M8 x 1.25 – M16 x 2 |
| Spindle Bore | PB 16 (MT1) | PB 20 (MT2) |
| Spindle Motor | 0.75 Kw/440v | 1.1 Kw/440v |
| Speed range | 420/760/1340 | 155/285/575 |
| Quill Travel | 60 mm | 60 mm |
| Table Size | 330x230 mm | 330x330 mm |
| Distance between table to spindle min /max | 260 mm | 450 mm |
| Distance between spindle centre to column front | 200 mm | 260 mm |
| Machine Dimensions (LxBxH) | 575x715x1100 mm | 575x715x1200 mm |
| T Slot | 2 Nos | 2 Nos |
| Pitch range in mm | 0.25,0.3,-1.7 | 0.5,-3 |
