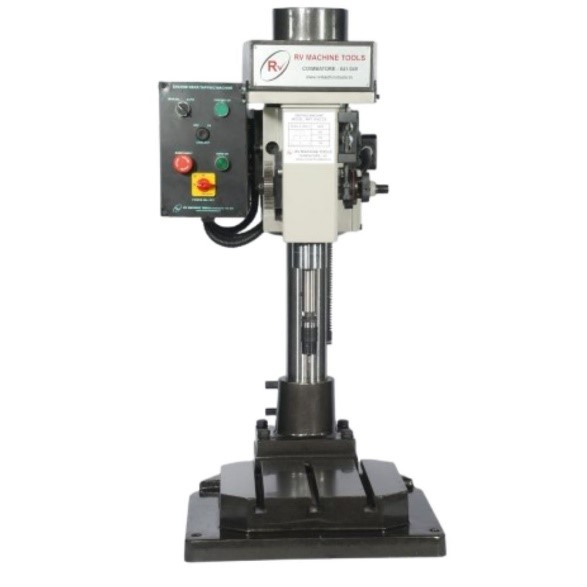

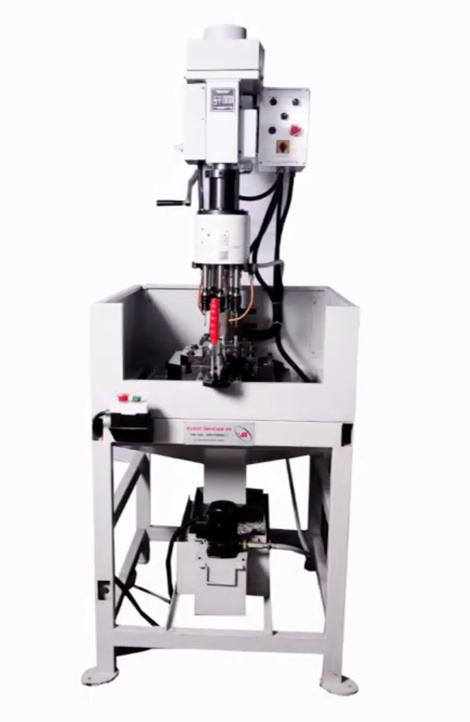

TAPPING MACHINE CHANGE GEAR MODEL
RVT8-40CG

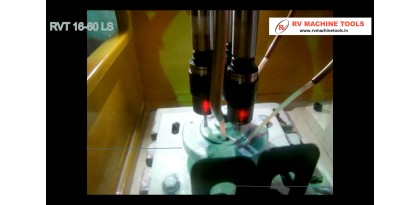

RVT16-60CG
RVT30-60CG
STANDARD FEATURES
Spindle case hardened steel material , precisely hardened and grounded
Graded cast iron housing , Quill bore fine machined, conned finish to smooth and long life
Dual clutch system prevents tap breakage
Wide range inch and mm tapping possible by changing gears
Precisely bored, coned, plated quill bore Grounded plated quill
Adjustable Steel grounded column for wide range fixture accommodation

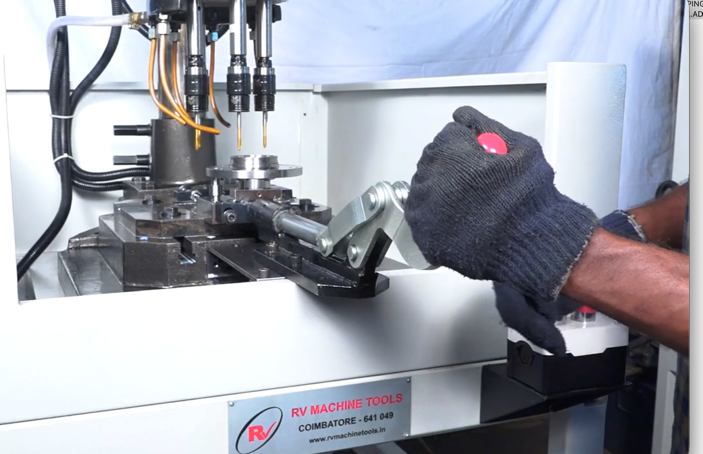

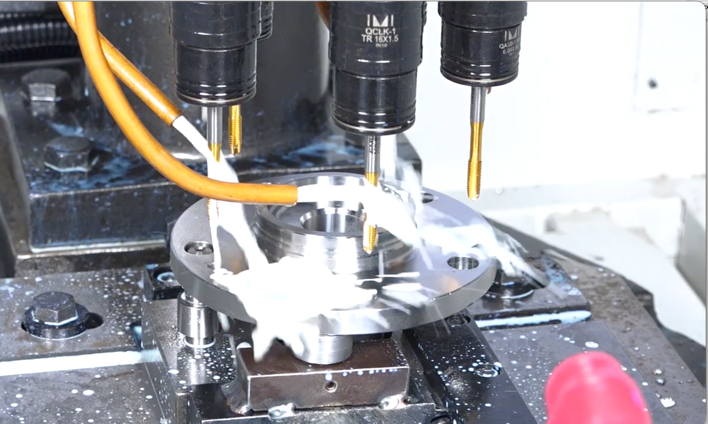

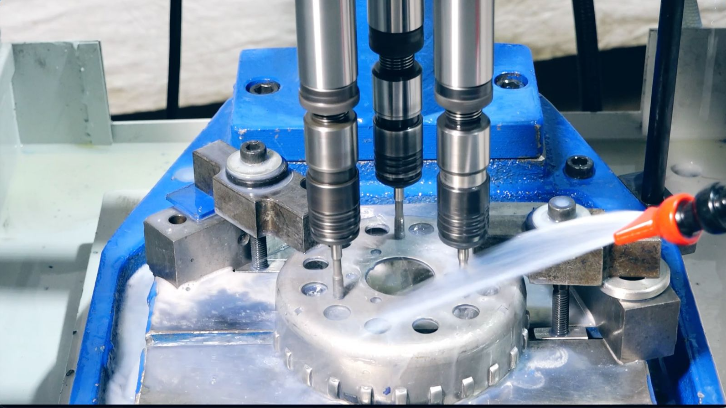

Can be mounted multi spindle tapping head
3 Step spindle speed according to the TAP size
Single and continuous cycle option
| Model | RVT 8-40-CG | RVT 16-60-CG | RVD 30-60-CG |
|---|---|---|---|
| Max Tapping capacity in steel (400/n/mm2) | M5 x 0.8 – M8 x 1.25 | M8 x 1.25 – M16 x 2 | M10 x 1.5P - M30 x 3.5P |
| Max No of stroke | 50 | 20 | 8 |
| Spindle Bore | MT1/J.T No2 | MT2 | MT3 |
| Spindle Motor | 0.75Kw/440v | 1.1kw /440V | 1.5KV/440V |
| Speed Range | 420/760/1340 | 155/285/515 | 200/100/50 |
| Quill Travel | 45 mm | 65 mm | 65 mm |
| Table Size | 330 x 230 mm | 330 x 330 mm | - |
| Distance between table to spindle max | 260 mm | 450 mm | 450 mm |
| Distance between spindle centre to column front | 200 mm | 260 mm | 275 mm |
| Pitch range in mm | 0.25,0.3,0.35,0.4,0.45,0.5,0.6,0.65,0.7,0.75,0.8,0.9,1.0,1.25,1.5,1.7 | 0.8,0.9,1.0,1.25,1.5,1.75,1.8,2.0,2.5,3.0 | 1.5,1.75,1.8,2.0,2.5,3.0,3.5,4.0 |
| Pitch range in TPI | 100,96,90,80,72,64,56,48,44,40,36,32,28,27,24,20,18,16 | 32,28,27,24,20,19,18,16,14,13,12,11,10 | 16,14,13,12,11,10,9,8,7,6 |
| Machine Dimensions (LxBxH) | 600 x 300 x 800 | 850 x 450 x 1200 | 850 X 450 X 1200 |
| Machine weight in kg | 125 | 250 | 325 |
| A | 230 | 330 | 360 |
| B | 270 | 380 | 400 |
| C | 300 | 425 | 445 |
| D | 270 | 440 | 450 |
| E | 800 | 1015 | 1120 |
| F | 60 | 110 | 110 |
| G | 200 | 260 | 275 |
| H | 230 | 330 | 330 |
| I | M17x1 | M34x1.5 | M42x1.5 |
| J | 415 | 580 | 600 |
| K | 595 | 805 | 815 |
| L | 260 | 450 | 450 |
