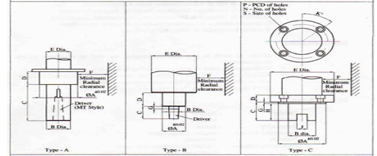

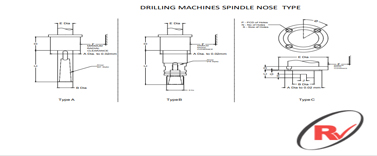

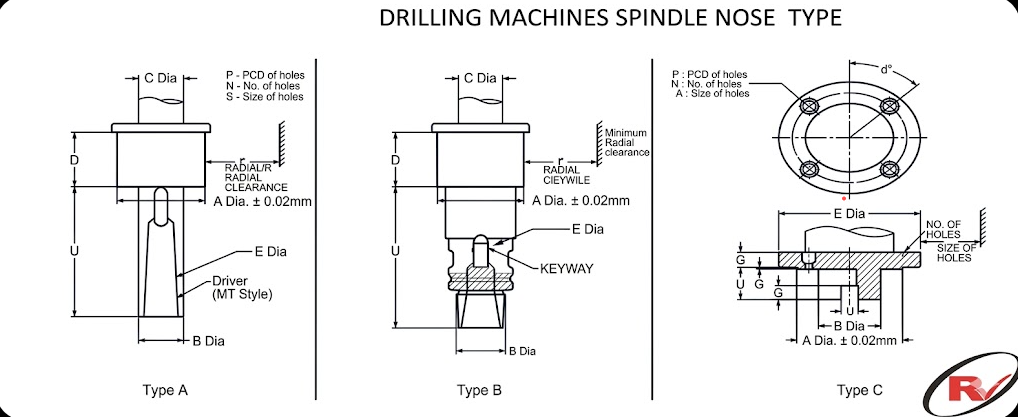

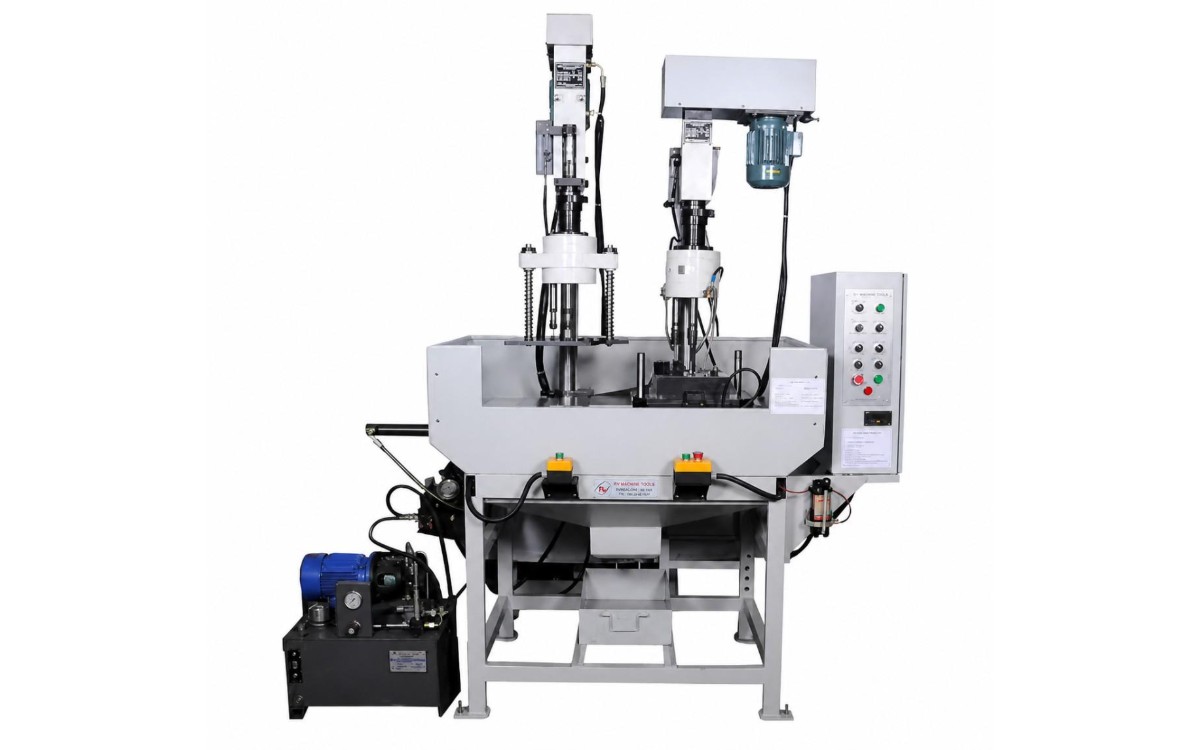

CONVENTIONAL DRILLING MACHINE WITH MULTI SPINDLE DRILL HEAD MOUNTING

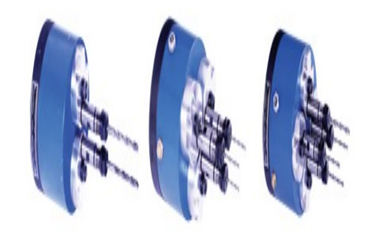

ADJUSTABLE PITCH MULTI SPINDLE DRILLING /TAPPING HEADS
| Model | NO OF SPINDLE | DRILL DIA MAX | PCD MIN/MAX |
|---|---|---|---|
| VM-2-8 | 2 | 8 | 40-144 |
| VM-3-8 | 3 | 8 | 54-144 |
| VM-4-8 | 4 | 8 | 65-144 |
| VM-2-12 | 2 | 12 | 48-168 |
| VM-3-12 | 3 | 12 | 60-180 |
| VM-4-12 | 4 | 12 | 87-207 |

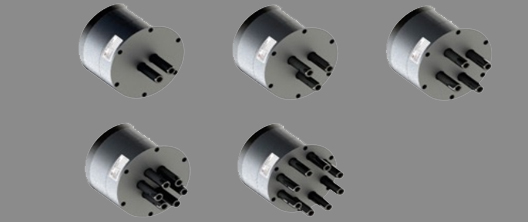

FIXED PITCH MULTI SPINDLE DRILLING /TAPPING HEADS
| NO OF SPINDLE | 2 TO 25 |
| PCD / PITCH | 28 MM TO 600 MM |
| DRILL DIA | 3 MM TO 50 MM |
| TAP SIZE | M3 TO M16 |

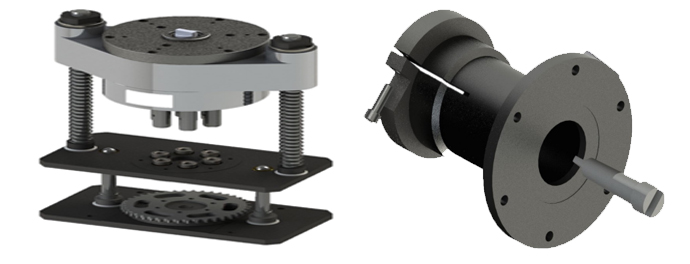

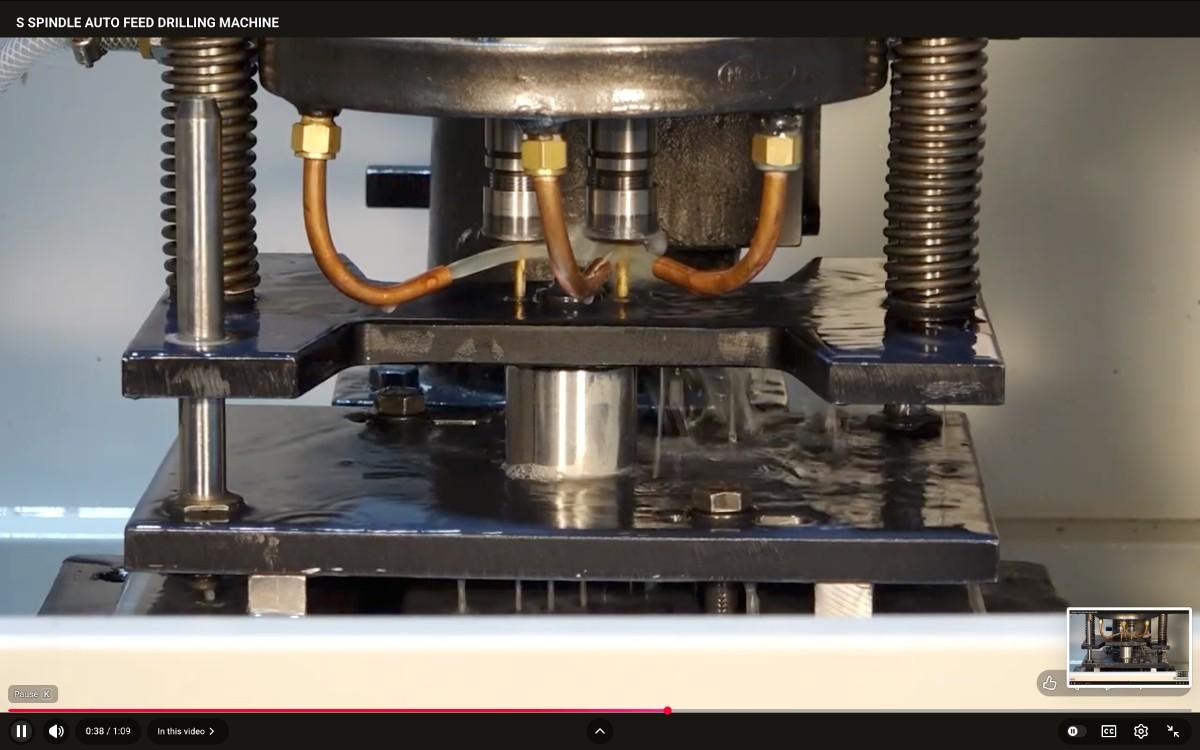

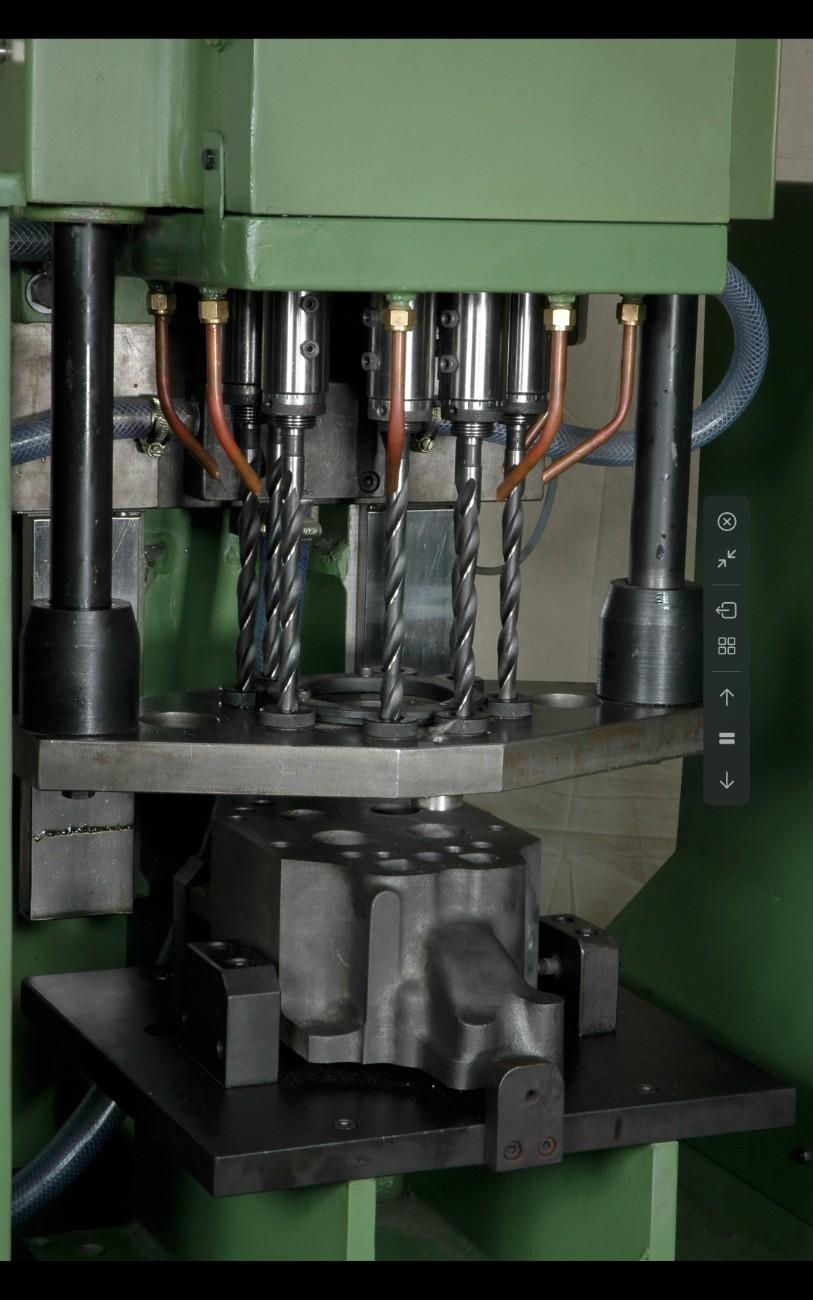

MULTI SPINDLE DRILLING HEAD WITH MOBLE JIG BUSH PLATE ASSEMBLY

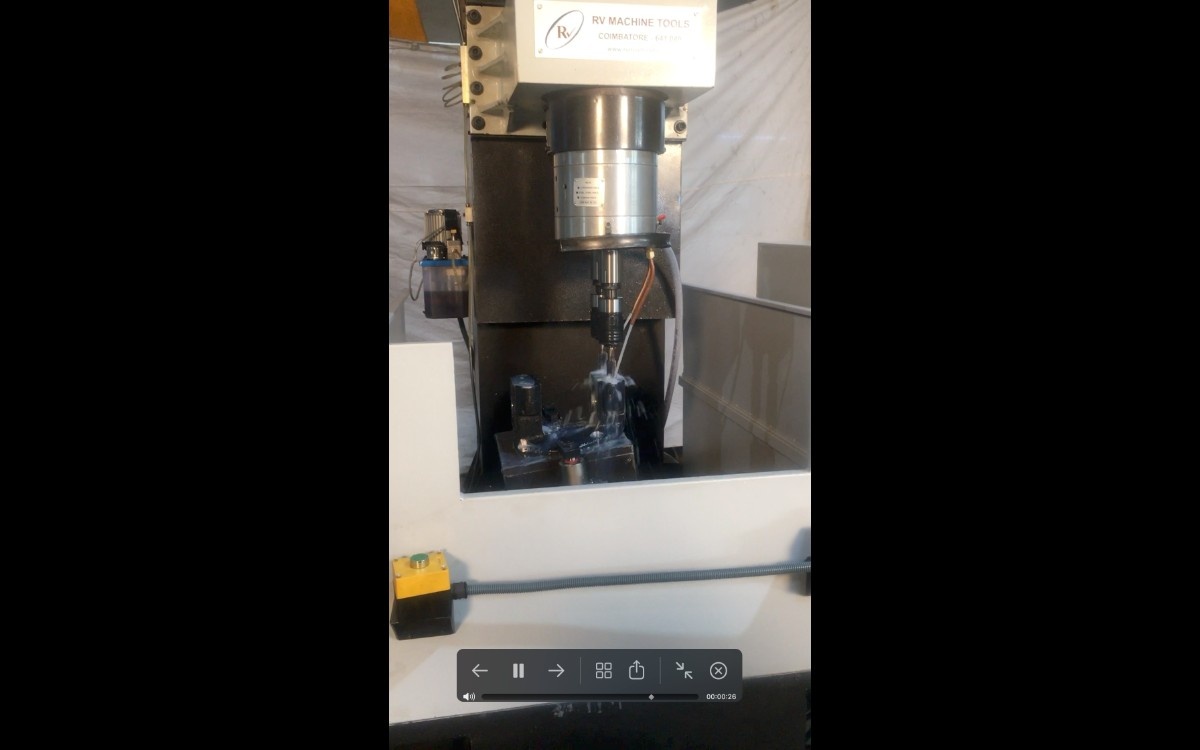

MACHINING CENTRE MULTI SPINDLE DRILL HEAD BT30/ BT40/BT50 /HSK63

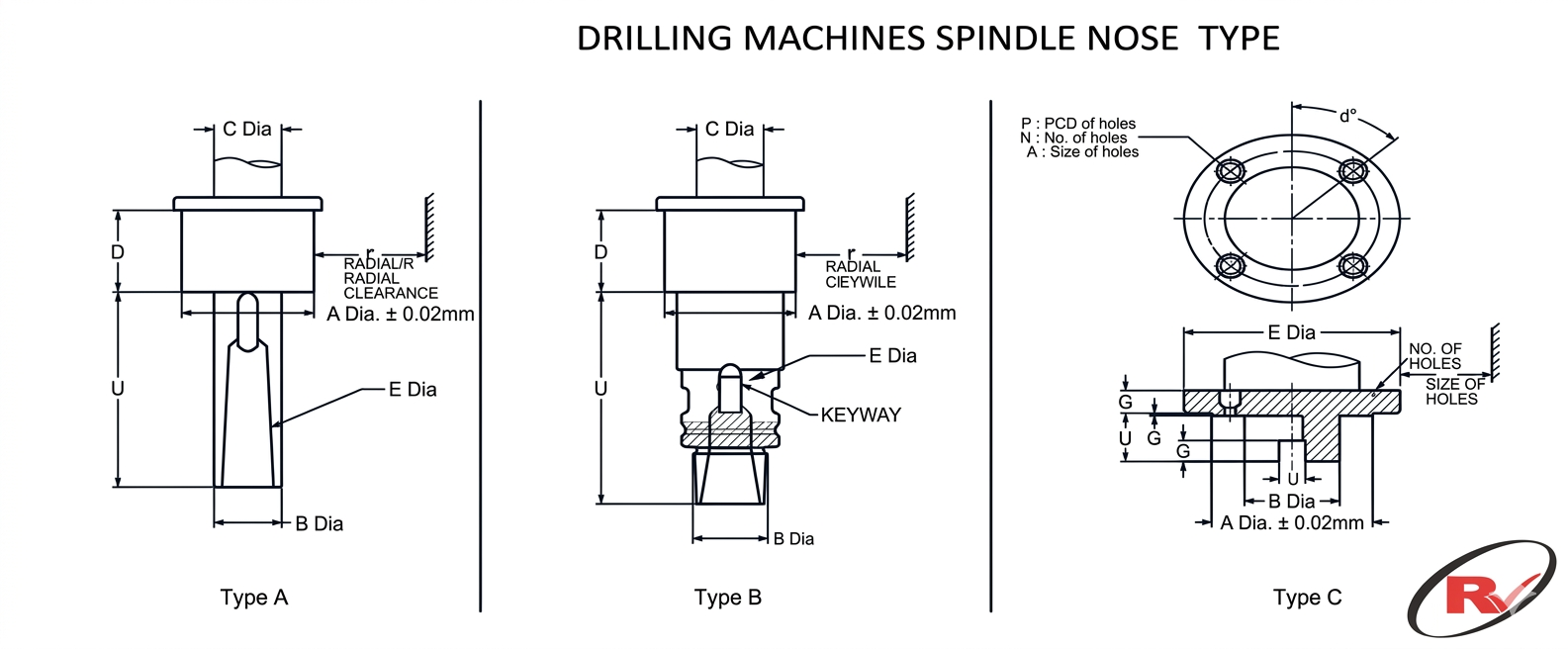

MULTI SPINDLE DRILLING -TYPES OF SPINDLE AND TOOL HOLDER

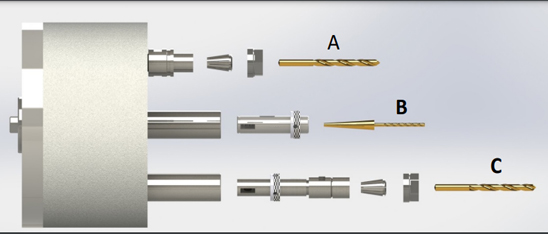

MULTI SPINDLE DRILLING
A – ER TYPE SPINDLE - ER COLLET AND NUT TOOL HOLDER
B -- PARALLAL BORE SPINDLE - ADJASTABLE ADAPTOR MT TOOL HOLDER
C -- PARALLAL BORE SPINDLE - SPECIAL ADJASTABLE ADOPTOR ER COLLET AND NUT TOOL HOLDER

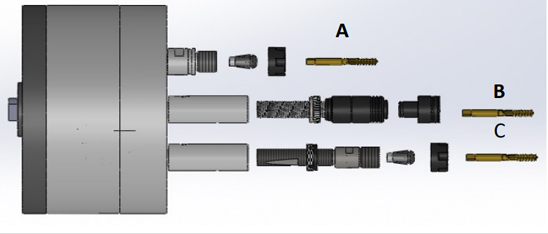

MULTI SPINDLE TAPPING
A – ER TYPE SPINDLE - ERT COLLET AND NUT TOOL HOLDER
B -- PARALLAL BORE SPINDLE - TAPPING ADAPTOR AND TAPPING CHUCK
C -- PARALLAL BORE SPINDLE - SPECIAL ADJASTABLE ADOPTOR AND ERT COLLET
