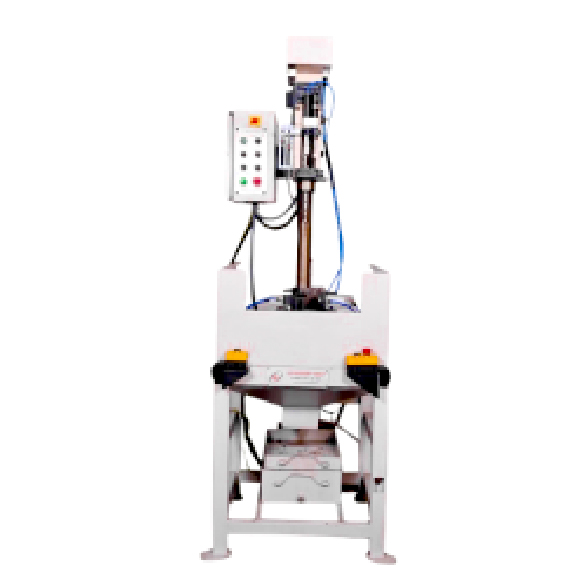

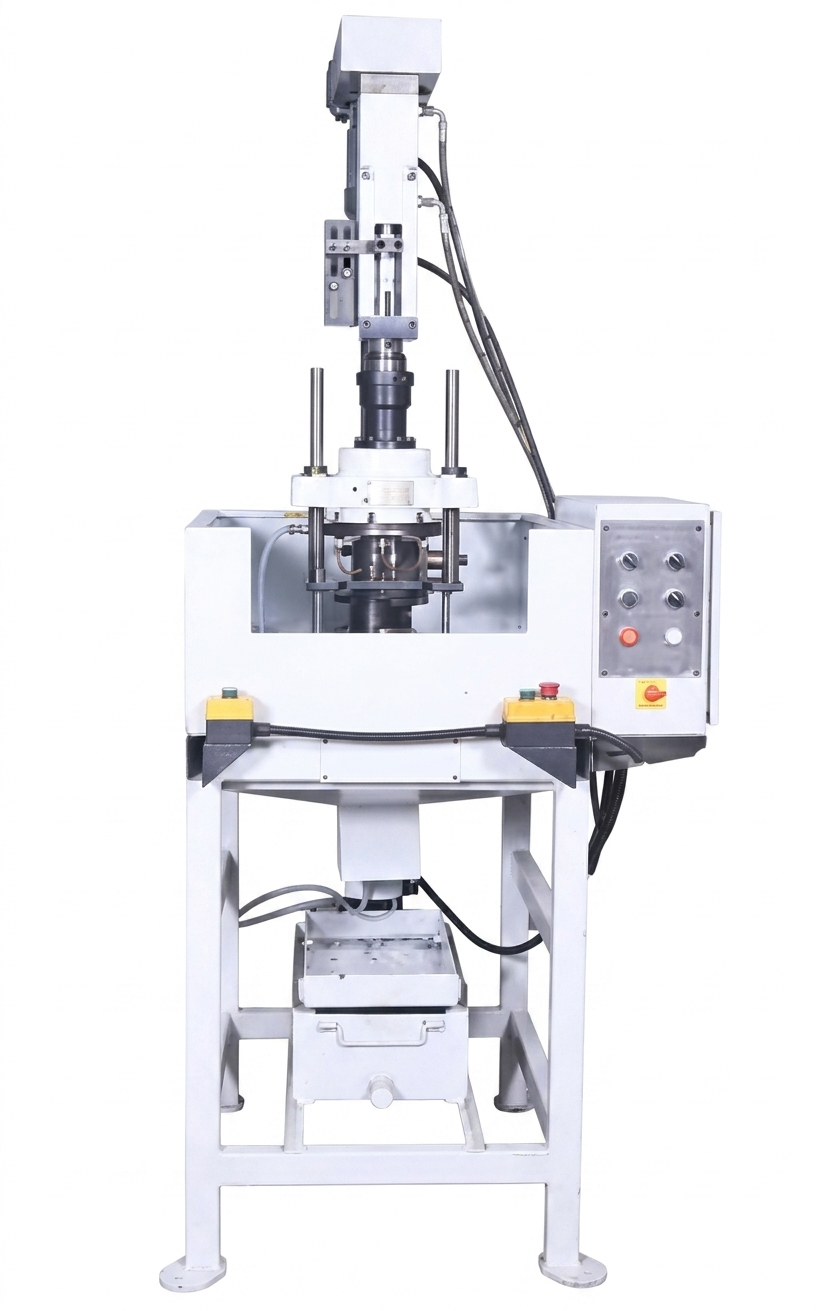

MULTI SPINDLE DRILLING MACHINE (PNEUMATIC)

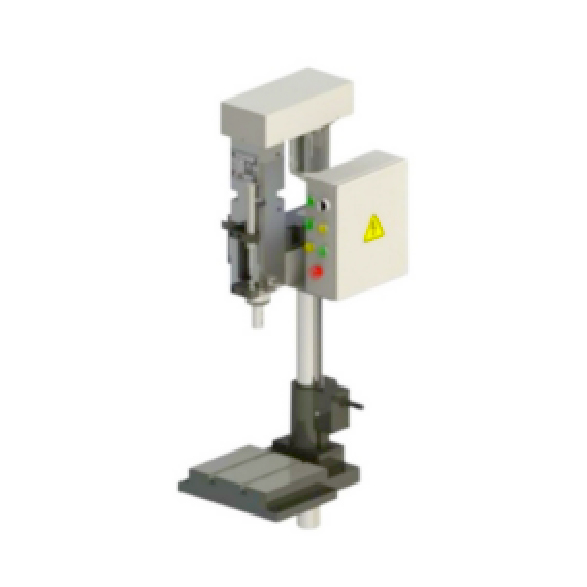

RVD 12-125-P
RVD 12-125-P

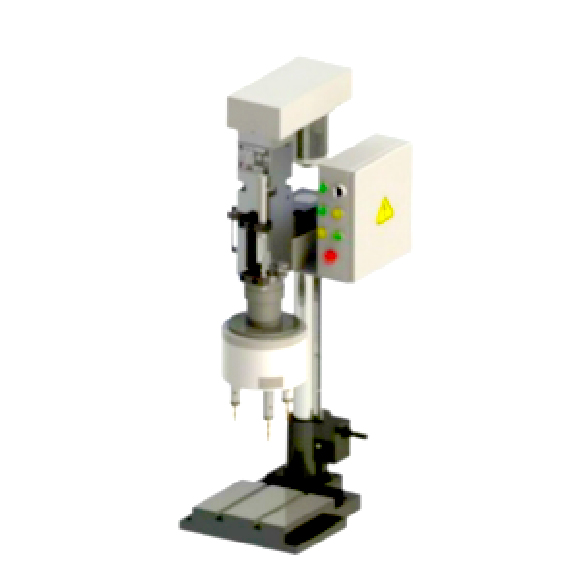

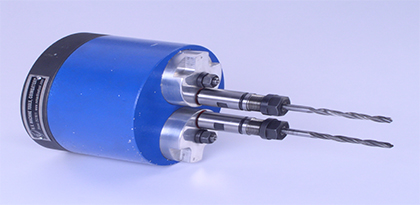

(MULTI SPINDLE HEAD)

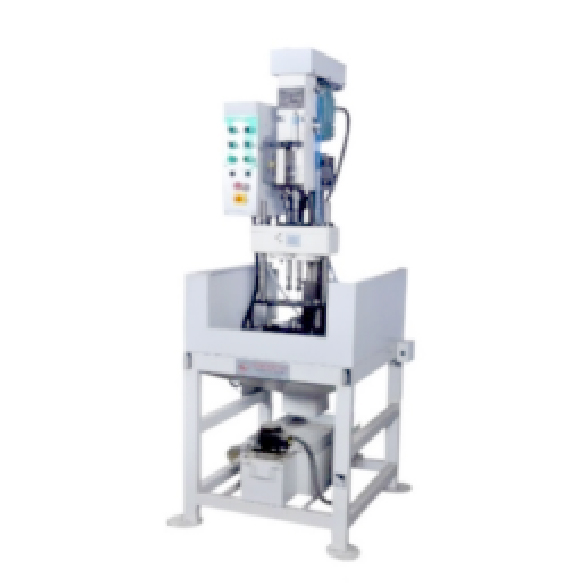

RVD 20-125-P
RVD 20-125-P
(MULTI SPINDLE HEAD)
STANDARD FEATURES
Precision Hardened and grounded spindle and threads are thread grounded
Precision bearings and lock nuts
Grounded and chrome plated quill
Honed and chrome plated Cylinder and quill housings
Built in hydraulic cylinder assembly
PTFE seals
Adjustable rapid distance and speed distance
10,000,000 cycles tested – Feed cylinder
End dwell time and Ideal for production and multi spindle drilling heads
Drilling cycle (Rapid forward - feed-dwell-rapid return)
OPTIONAL FEATURES
Peck drilling
Machine stand with chip collection tray
Coolant tank and assembly
Tooled up
Part Fixturing
| Description | RVD 12 125 P | RVD 20 125 P |
|---|---|---|
| Max Drilling Cap in steel(400n/mm2) | 12mm | 20mm |
| Spindle Bore | MT2/PB20/ER20 | PB25mm (MT3/ER32) |
| Spindle Motor |
0.75 kw/440v 0.75 kw/440v |
1.1kw/440 v 1.1kw/440 v |
| Spindle speed |
530/720/1100 rpm (Gear drive) 1060/1440/2200 rpm |
320/400/530 rpm (Gear drive) 640/800/1060 rpm |
| Total travel in mm | 125 mm | 125 mm |
| Working travel in mm | 25 mm | 25 mm |
| Thrust force kgf | 240kgf@10 bar | 400kg@10kgm cm2 |
| Table Size | 260 x 300 | 360 x 325 |
| Distance Between Table to Spindle min/max/ mm | 200-500 mm | 200-600 mm |
| Distance between spindle centre to column front | 220 mm | 220 mm |
| Machine dimensions | 810x920x1990 mm | 810x920x1900 mm |
| Air Requirement | 5 to 7 kgcm2 | 5 to 7 kgcm2 |
