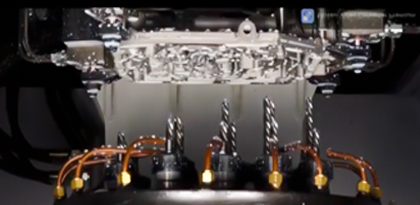

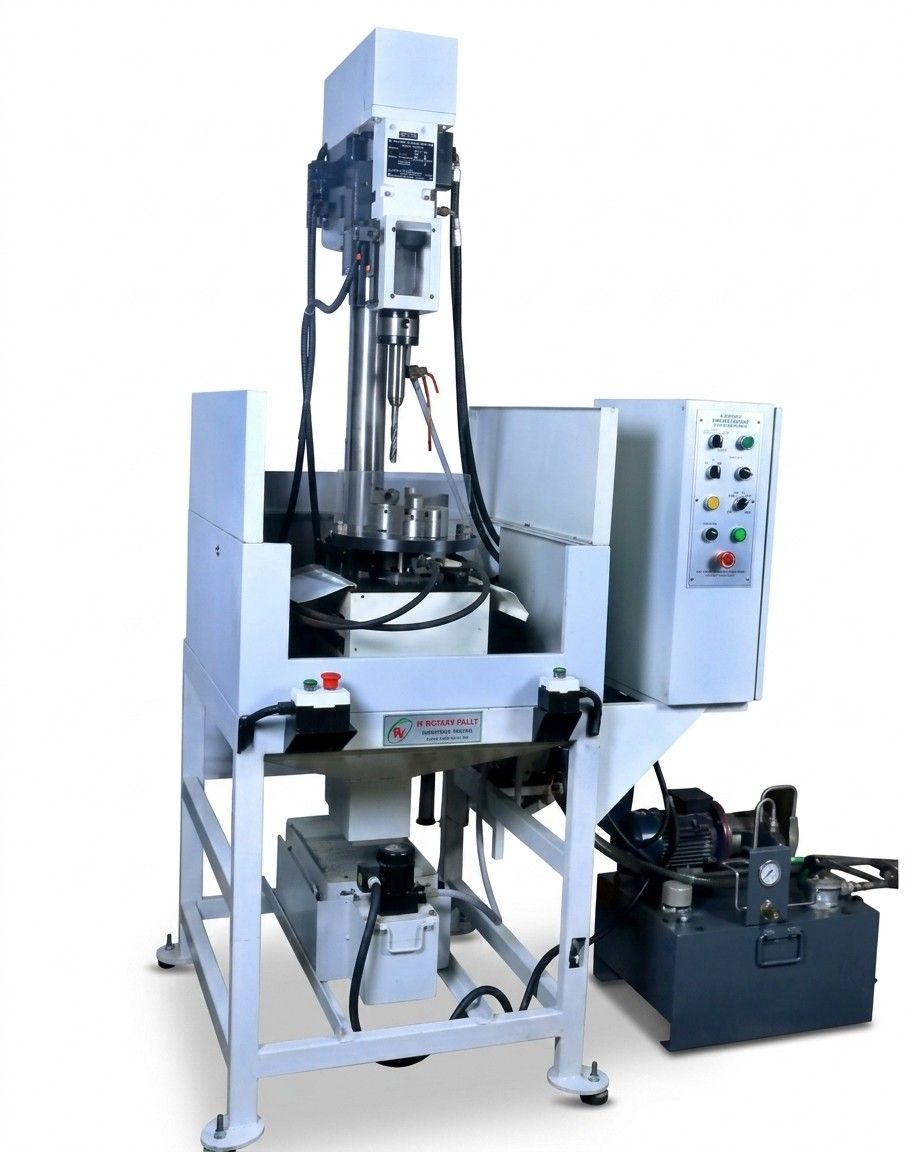

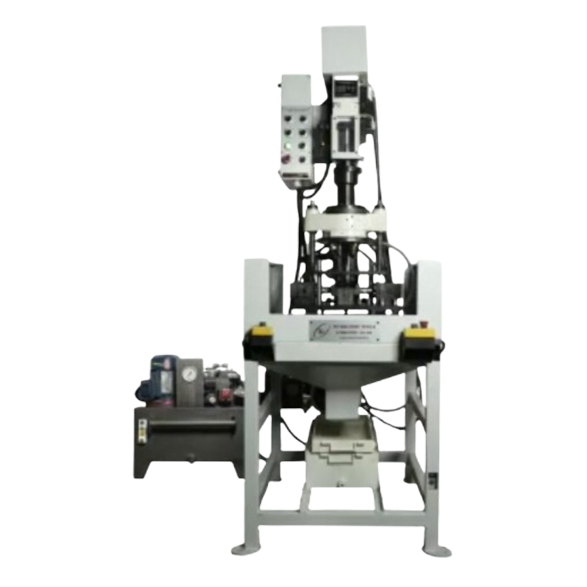

MULTI SPINDLE DRILLING MACHINE (HYDRAULIC)

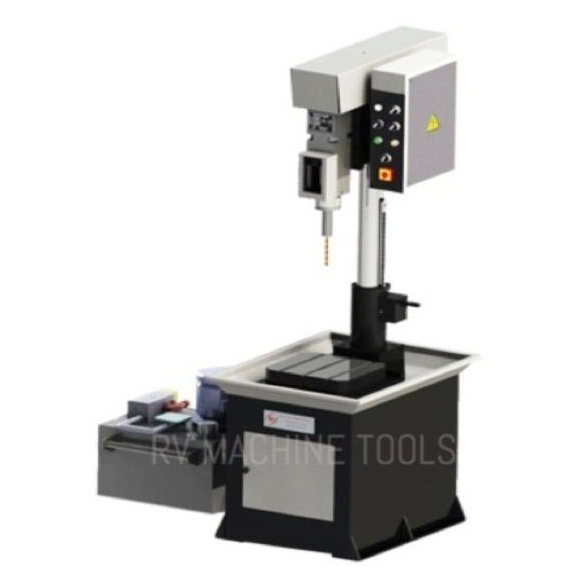

RVD 12 125 H

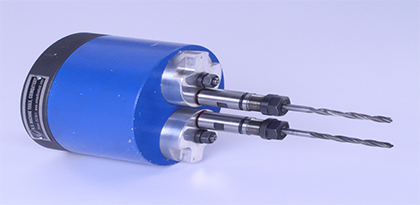

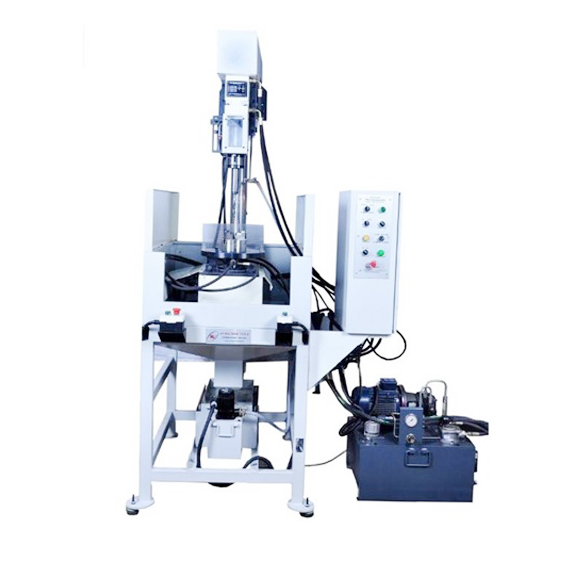

(MULTI SPINDLE HEAD)

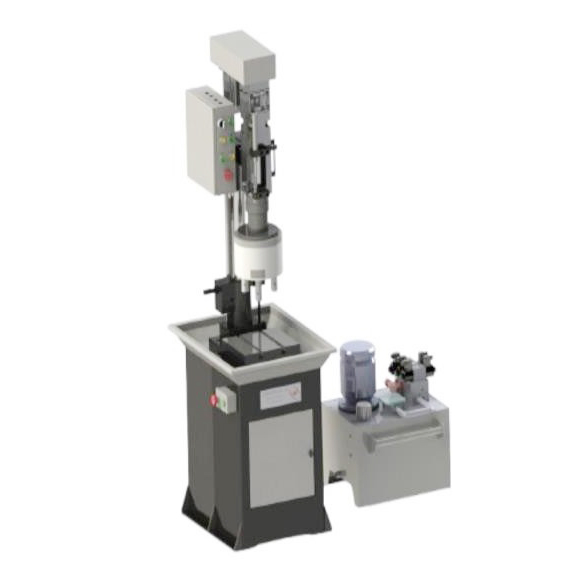

RVD 20 125 H

(MULTI SPINDLE HEAD)

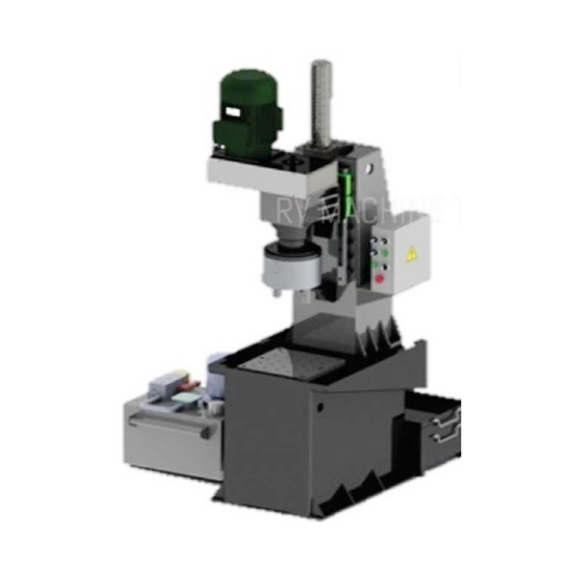

RVD 25 300 H

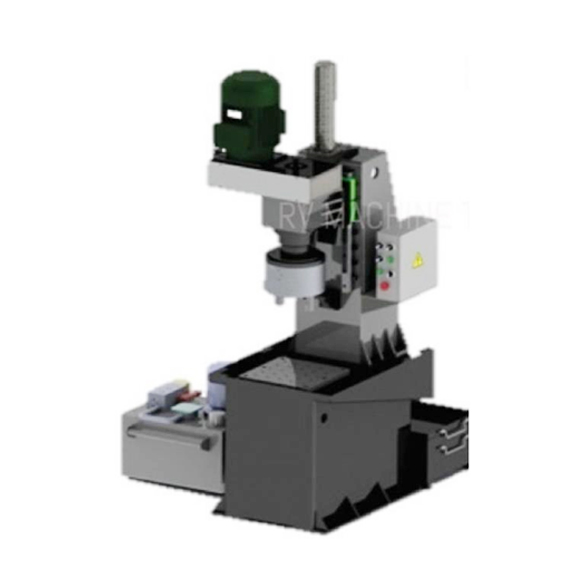

RVD 40 300 H

STANDARD FEATURES

Precision Hardened and grounded spindle and threads are thread grounded
Precision Linear motion guide ways, Precision bearings and lock nuts
Grounded and chrome plated quill
Honed and chrome plated Cylinder and quill housings
Built in hydraulic cylinder assembly
PTFE seals
Adjustable rapid distance and speed
10,000,000 cycles tested – Feed cylinder
End dwell time and Ideal for production and multi spindle drilling heads
Drilling cycle (Rapid forward - feed-dwell-rapid return)

OPTIONAL FEATURES

Peck drilling
Machine stand with chip collection tray
Coolant tank and assembly
Tooled up
Part Fixturing

Machine Model	RVD 12 125 H	RVD 20 125 H	RVD 25 300 H	RVD 40 300 H
Max Drilling Cap in steel(400n/mm2)	12mm	20mm	25mm	40mm
Spindle Bore	PB20mm (MT1/ER20)	PB25mm (MT2/ER32)	BT40 (PB)	BT40 (PB)
Spindle Motor	0.75 kw/440v 0.750.75 kw/440v	1.1 kw/440v 1.1 kw/440v	2.2 kw/440v (VFD) 2.2 kw/440v (VFD)	3.7 kw/440v (VFD) 3.7 kw/440v (VFD)
Spindle speed	530/720/1100 rpm 1060/1440/2200 rpm	320/400/530 rpm 640/800/1060 rpm	250/350/450 rpm 500/700/900 rpm	160/190/275 rpm 320/380/550 rpm
Total travel in mm	125 mm	125 mm	400 mm	400 mm
Working travel in mm	36 mm	50 mm	75 mm	120 mm
Thrust force kgf	400kgf@10 bar	650kg@10kgm cm2	650kg@10kgm cm2 800kgf@30 bar	1200kgf@30 bar
Table Size	260 x 300	360 x 325	400 x 350	400 x 450
Distance Between Table to Spindle min/max/ mm	100-600 mm	200-600 mm	300-650 mm	300-650 mm
Distance between spindle centre to column front	180 mm	220 mm	275 mm	275 mm
Machine dimensions	680x720x2035 mm	810x920x1900 mm	1410x720x2260 mm	1410x720x2260 mm
Tank capacity	40 litre	40 litre	40 litre	40 litre
Pump motor	0.75kv/440v	0.75kv/440v	0.75kv/440v	0.75kv/440v
