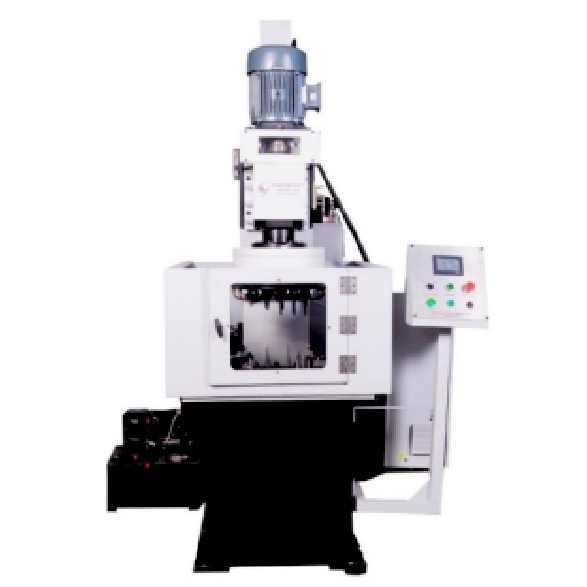

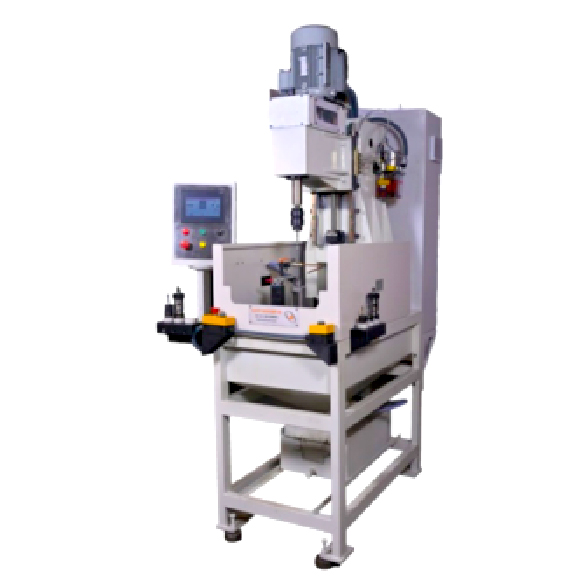

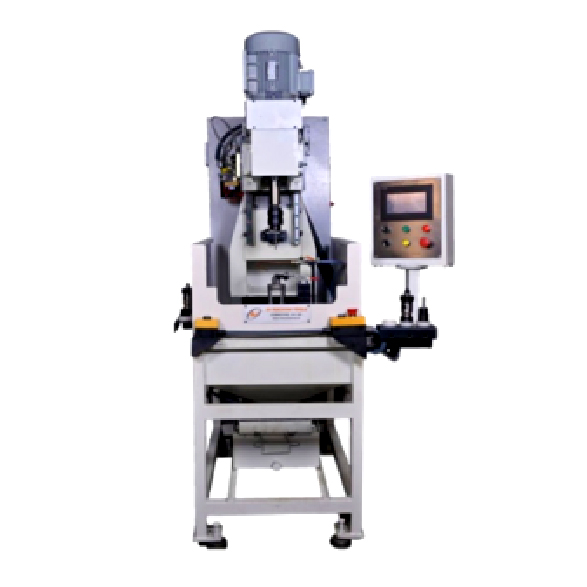

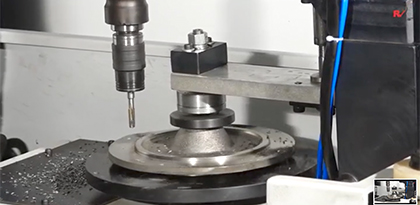

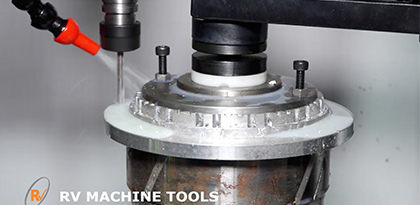

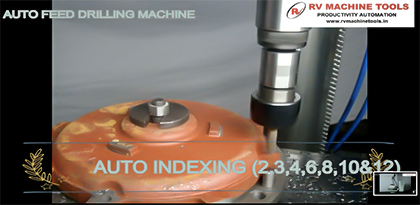

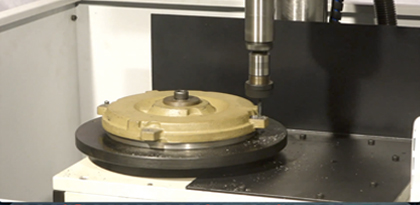

DRILLING CUM TAPPING MACHINE (NC)
RVDT 12
RVDT 20
RVDT 25
RVDT 40
STANDARD FEATURES
Ideal for high productivity
Precision ball screw drive
Precision linear motion guide ways
Centralized Lubrication
Ideal for BT40 Drilling / Tapping Head Mounting
Ideal for multi spindle and single spindle drilling
High rapid drilling advance and retract speed Adjustable rapid and feed travel length
Adjustable feed rate
Fabricated cabinet with built in tank & chip tray
Steel fabricated, Stress relived column head stock precision
| Capacity | RVDT 12 | RVDT 20 | RVDT 25 | RVDT 40 |
|---|---|---|---|---|
| Max. drilling capacity in steel 400n/mm2 | 12 mm | 20 mm | 25 mm | 40 mm |
| Max. tapping capacity max in steel 400n/mm2 | M 8 | M 12 | M 16 | M 24 |
| Spindle to Table max | 100-400 mm | 100-450 mm | 150-550 mm | 150-550 mm |
| Work Table | 300 X 350 | 300 X 350 | 400 X 450 | 400 X 450 |
| Spindle | ||||
| Spindle | MT2 / PB20 | MT-3 / PB 25 | BT40 | BT40 |
| Spindle power | 1.5 kw Servo motor | 2.2 kw Servo motor | 3.7 Kw Servo motor | 5.5 Kw Servo motor |
| Speed range max | 5000 rpm | 5000 rpm | 3000 rpm | 3000 rpm |
| Tool Clamp | - | - | Auto pull stud mechanism | Auto pull stud mechanism |
| Tool Loading | - | - | Manual | Manual |
| Z -Axis | ||||
| Travel | 300 mm | 300 mm | 400 mm | 400 mm |
| Axis Drive | Servo | Servo | Servo | - |
| Axis speed max | 10 m/min | 10 m/min | 10 m/min | 10 m /min |
| Lubrication | Centralized Lubrication | Centralized Lubrication | Centralized Lubrication | Centralized Lubrication |
| HMI Operating panel | 7” Touch Screen Drilling / Tapping Program Screen , Peck drill tap, part Counter and Torque control | 7” Touch Screen Drilling / Tapping Program Screen , Peck drill tap, part Counter and Torque control | 7” Touch Screen Drilling / Tapping Program Screen , Peck drill tap, part Counter and Torque control | 7” Touch Screen Drilling / Tapping Program Screen , Peck drill tap, part Counter and Torque control |
| Machine power | 5kw/440v +- 10v | 8 kw/440v +- 10v | 10 kw/440v +- 5v 50Hz +- 1Hz | 15 kw/440V+-5V |
| Machine Dimension LBH in mm | 600x700x1600 | 1000x800x1800 | 800x800x1900 | 2000x1500x2500 |
