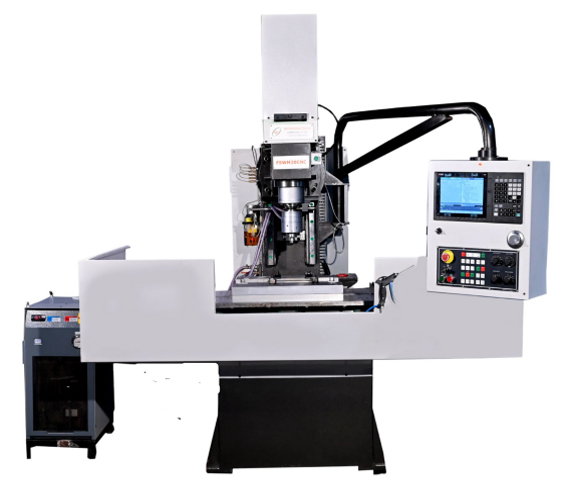

Cooling Plate Friction Stir Welding Machine
Model - FSWM20CN
STANDARD FEATURES
Ergonomically designed, Steel fabricated Stress relieved fine machined and scrapped base,column and X, Y slides
Wedge locked Heavy Duty Linear motion roller guide ways
Precision class double nut ball screws
ABEC 5 Precision Cartridge Type Friction stir welding bearing configuration BT 50 spindle
Centralized Auto lubrication system
BT50 FSW Tool holder with tool point temperature measuring system
Thermostatically controlled spindle chiller , helps moderate spindle thermal growth and expansion and tightning of the bearing raceways
| Model | FSWM20CN |
|---|---|
| Work Table | 700 mm x 400 m |
| T slot | 3 x 18 on 100 mm centre |
| Table on load | 3000 kg |
| Spindle to Table min -max | 100mm to 400m |
| Spindle Type | Cartridge Spindle |
| Spindle Taper | BT5 |
| Spindle Power | 11KW/440V Servo |
| Spindle RPM | Max 3000 RPM |
| Spindle Nose to Table (max – min) | 100 mm to 400 m |
| Drive Ratio | 1:2 |
| X-Axis | 600 mm |
| Y-Axis | 400 mm |
| Z-Axis | 400 mm |
| Z-Axis Force Max | 20 kN |
| X and Y Axis Force Max | 10kN |
| X and Y Axis speed Max | 5000 mm/min |
| Z-Axis Speed Max | 2000 mm/min |
| Centralized auto Lubrication | 3 Lit tank cap centralized auto lubricatio |
| CONTROLLER - MITSUBISHI M80 with 2D NC programming option | 10.4 ” Touch Screen Position Force and Temperature mode controller With 2D NC programming option |
| REAL TIME DATA ACQUISITION SOFTWARE | Spindle rpm torque, axis force and velocity against time |
| Machine dimension LBH | 3000 mm x 2000 mm x 2500 mm |
| Machine power | 25 KVA/440V v/50Hz |
