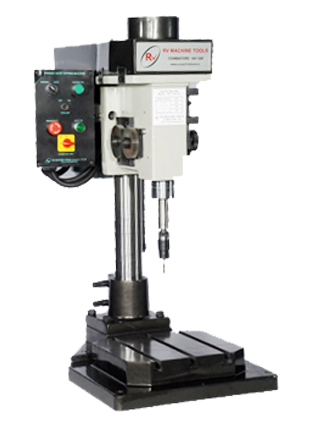

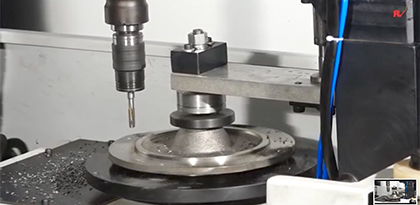

PITCH CONTROL TAPPING MACHINE

Lead Screw Model

Change Gear Model

Lead Screw Model

Description RVT8 60LS RVT16 60LS
Max Tapping capacity in steel (400N/mm2) M4 to M8 M8 to M16
Spindle MT1 /PB 16 MT2 /PB 20
Spindle Power 0.37kW/440V 0.75kW/440V
Speed Range 400/750/1300 318/265/200
Pitch Range .7,.8,1,1.25 1,1.25,1.5,1.75
Quill Travel 60mm 70mm
Distance between spindle center to column 160 mm 180 mm
Spindle to table min /max 100 - 400 mm 100 - 450 mm
Table size 260 x 300mm 260 - 300mm
T Slot 2 Nos 2 Nos
Machine dim ( L x B x H) 575 x 715 x 1100 575 x 715 x 1200

Change Gear Model

Description RVT 8-60CG RVT 16-60CG
Max. drilling capacity in steel (400N/mm) M3 - M8 M8 - M16
Spindle type PB 16/ER16 PB 20/ER20
Spindle Power in kw 0.37 /1440 0.75/720rpm
Speed range in rpm 420,760,1340 155/285/515
Pitch Range in TPI 32,28,27,24,20,19,18, 16, 14,13,12,11,10 32,28,27,24,20,19,18, 16, 14,13,12,11,10
Quill Travel in mm 60 65
Distance between spindle center to column in mm 220 280
Spindle to table min /max 100 -350 100 -450
Table size in mm 300 x 260 330 x 330
Machine dim ( L x B x H) 600x 750 x 1000 675 x 865 x 1200
Sipping Dim in mm ( Lx B x H) 700 x 900 x 1200 900 X 1000 X 1300
Machine weight in kg 270 300

STANDARD FEATURES

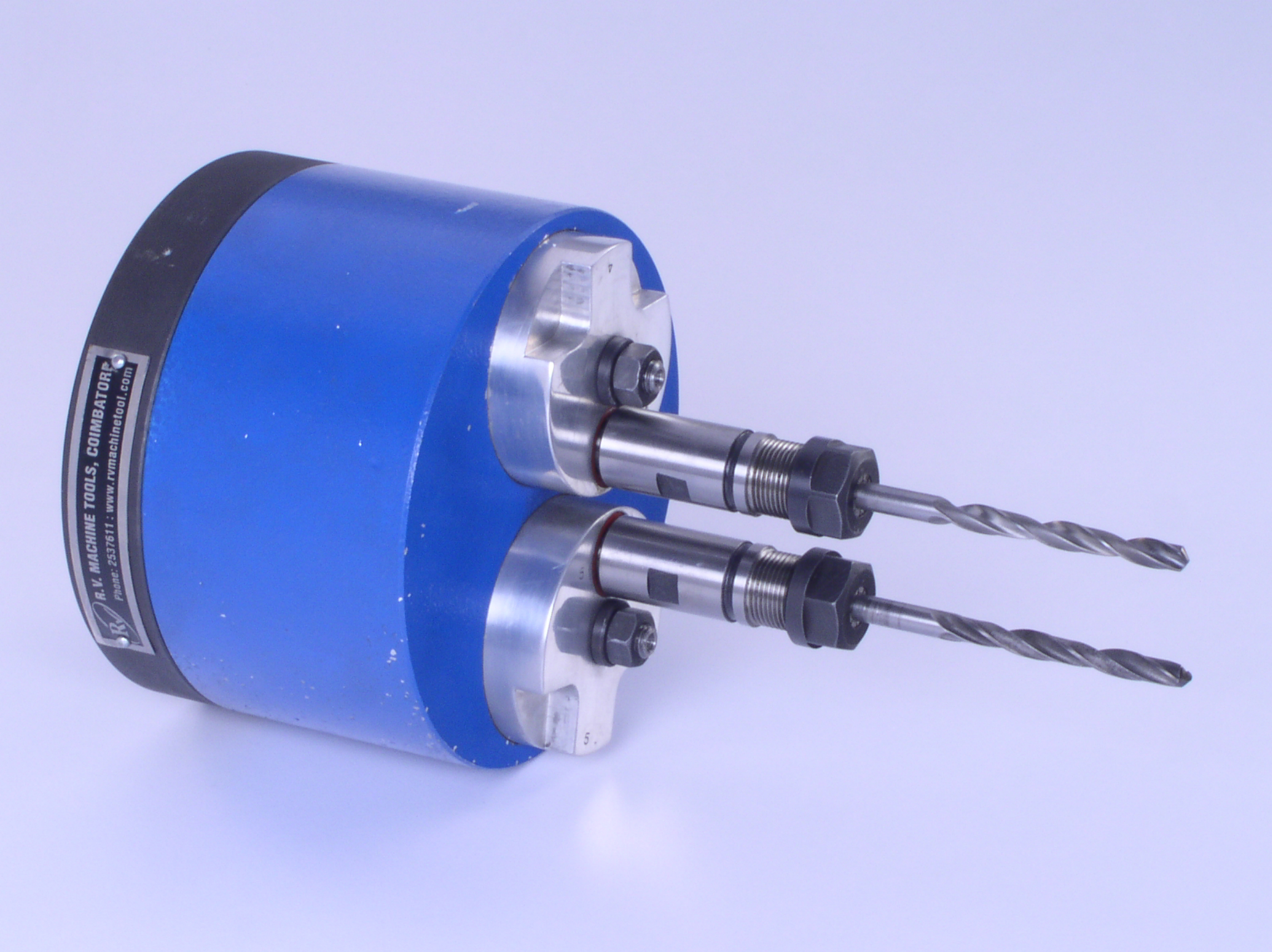

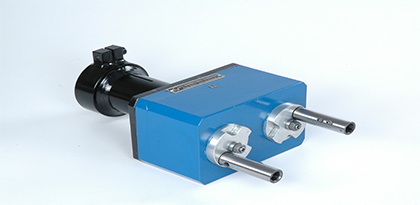

Can be mounted multi spindle Tapping head
All possible customized pitch by changing LEAD SCREW and NUT
Hardened and thread grounded LEAD SCREW
High rapid drilling advance and retract speed
Adjustable quill travel length
Precisely bored, coned, plated quill bore Grounded plated quill
Grounded plated quill
Hardened and grounded spindle Thread grounded spindle
Thread grounded spindle
Spindle nose thread grounded for repeated and easy tool changing
Adjustable column for wide range fixture accommodation
Ideal for productivity through multi spindle drilling and single drilling
Graded cast iron housing fine machined and bored Dual clutch system prevents tap breakage,
Wide range inch and mm tapping possible by changing gears

OPTIONAL FEATURES

Machine cabinet
Machine Stand
Peck Tapping attachment
Electrical panel
Coolant system
Pneumatic linear table attachment

RV Machine Tools
